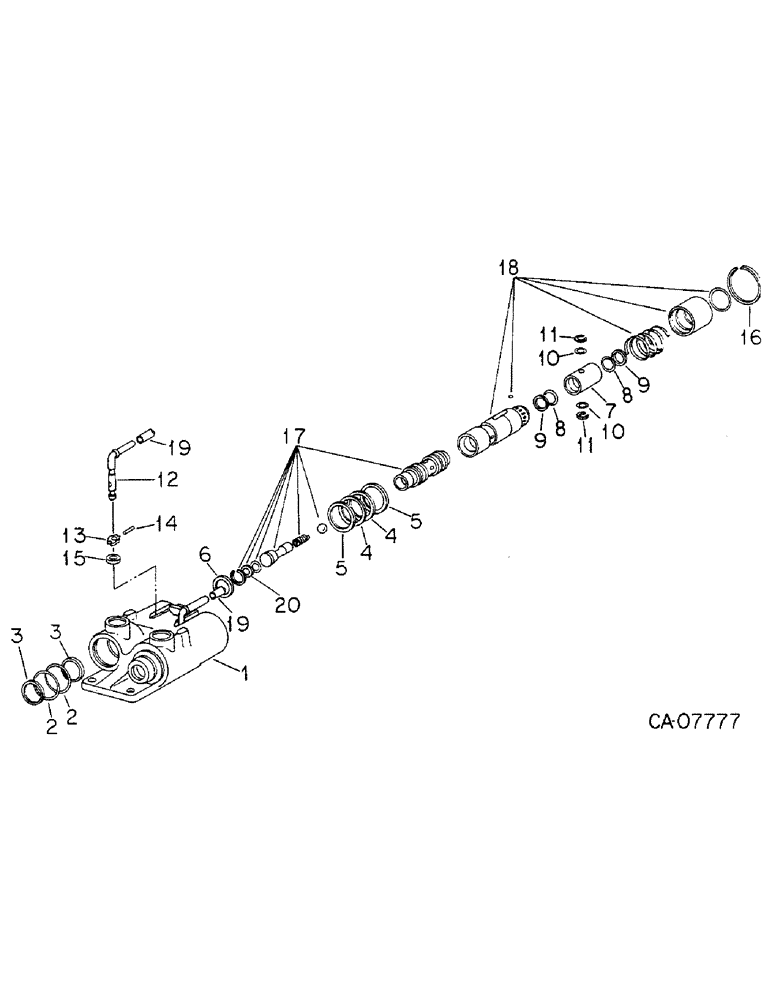

Запчасти Case IH 3588 (10-36) - HYDRAULICS, FEMALE COUPLER (07) - HYDRAULICS

544786C95

COUPLING ASSY, female

1шт.

1

544788R2

BODY

coupler

1шт.

86504104

LUBE NIPPLE,1/4" x .56" lg, Drive

FITTING, 1/4 hole lub

2шт.

2

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1-11/16 x 1-7/8 x 3/32

4шт.

3

544789R2

SEAL

sleeve

4шт.

4

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1-1/6 x 1-1/4 x 3/32

4шт.

5

544792R1

WASHER,27.66mm ID x 32.08mm OD x 1.32mm Thk

back-up

4шт.

6

57071C1

RING

retaining check body outer

2шт.

7

76931C1

SLEEVE

female body small, Replaces 544798R1, For 3388, Order package 76936C91, Serial Range: -8838

2шт.

7

76931C1

SLEEVE

female body small, Replaces 544798R1, For 3588, Order package 76936C91, Serial Range: -8899

2шт.

8

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

3/8 x 1/2 x 1/16

4шт.

9

544799R1

WASHER

back-up

4шт.

10

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16, 3388, Serial Range: -8838

4шт.

10

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16, 3588, Serial Range: -8899

4шт.

10

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 x 1/16, 3388, Start Serial: 8839

4шт.

10

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 x 1/16, 3588, Start Serial: 8900

4шт.

10

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 x 1/16, 3788 tractors

4шт.

11

544800R1

WASHER

back-up, 3388, Serial Range: -8839

4шт.

11

544800R1

WASHER

back-up, 3588, Serial Range: -8899

4шт.

11

76932C1

WASHER

o-ring back-up, 3388, Start Serial: 8839

4шт.

11

76932C1

WASHER

o-ring back-up, 3588, Start Serial: 8900

4шт.

11

76932C1

WASHER

o-ring back-up, 3788 tractors

4шт.

12

142371C1

HANDLE

valve, Replaces 544801R1, For 3388, Order package 76936C91, Serial Range: -8839

2шт.

12

142371C1

HANDLE

valve, Replaces 544801R1, For 3588, Order package 76936C91, Serial Range: -8899

2шт.

13

544804R1

CAM

check valve

2шт.

14

544805R1

PIN

cam retainer

2шт.

15

76935C1

SPACER

cam shaft, 3388, Start Serial: 8839

2шт.

15

76935C1

SPACER

cam shaft, 3588, Start Serial: 8900

2шт.

15

76935C1

SPACER

cam shaft, 3788 tractors

2шт.

15

544806R1

RETAINER

cam shaft, 3388, Serial Range: -8838

2шт.

15

544806R1

RETAINER

cam shaft, 3588, Serial Range: -8899

2шт.

399921C1

RING

cam shaft retaining, for 3388, Serial Range: -8838

2шт.

399921C1

RING

cam shaft retaining, for 3588, Serial Range: -8899

2шт.

16

537468R1

SNAP RING,#193, 2.081", Int

RING, retaining

2шт.

17

549158R1

VALVE

ASSY, check

2шт.

18

549159R2

SLEEVE

ASSY, female body

2шт.

19

139346C1

SLEEVE

valve handle, black, motor control valve coupler

2шт.

19

139347C1

SLEEVE

valve handle, yellow, second aux control valve coupler

2шт.

19

139348C1

SLEEVE

valve handle, blue, third aux control valve coupler

2шт.

19

139349C1

SLEEVE

valve handle, tan, fourth aux control valve coupler

2шт.

20

544795R1

WASHER

back-up

1шт.

549160R92

PACKAGE

hydraulic coupler o-ring and seal service, Consists of

1шт.

22278R1

O-RING,0.103" Thk x 1.674" ID, -131, Cl 5, 75 Duro

1-11/16 x 1-7/8 class 5

4шт.

346959R1

O-RING,0.103" Thk x 1.049" ID, -121, Cl 6, 90 Duro

1-1/16 x 1-1/4 class 6

4шт.

364879R1

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

7/8 x 1-1/16 class 5

4шт.

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 class 6

4шт.

544789R2

SEAL

4шт.

544792R1

WASHER,27.66mm ID x 32.08mm OD x 1.32mm Thk

4шт.

76932C1

WASHER

2шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1/4 x 3/8 class 6

2шт.

544799R1

WASHER

4шт.

544800R1

WASHER

4шт.

399921R1

TUBE

RING

2шт.

76936C91

PACKAGE

female coupling handle service, Consists of

1шт.

142371C1

HANDLE

1шт.

76931C1

SLEEVE

1шт.

76935C1

SPACER

1шт.

384937R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 6, 90 Duro

1шт.

76932C1

WASHER

1шт.
