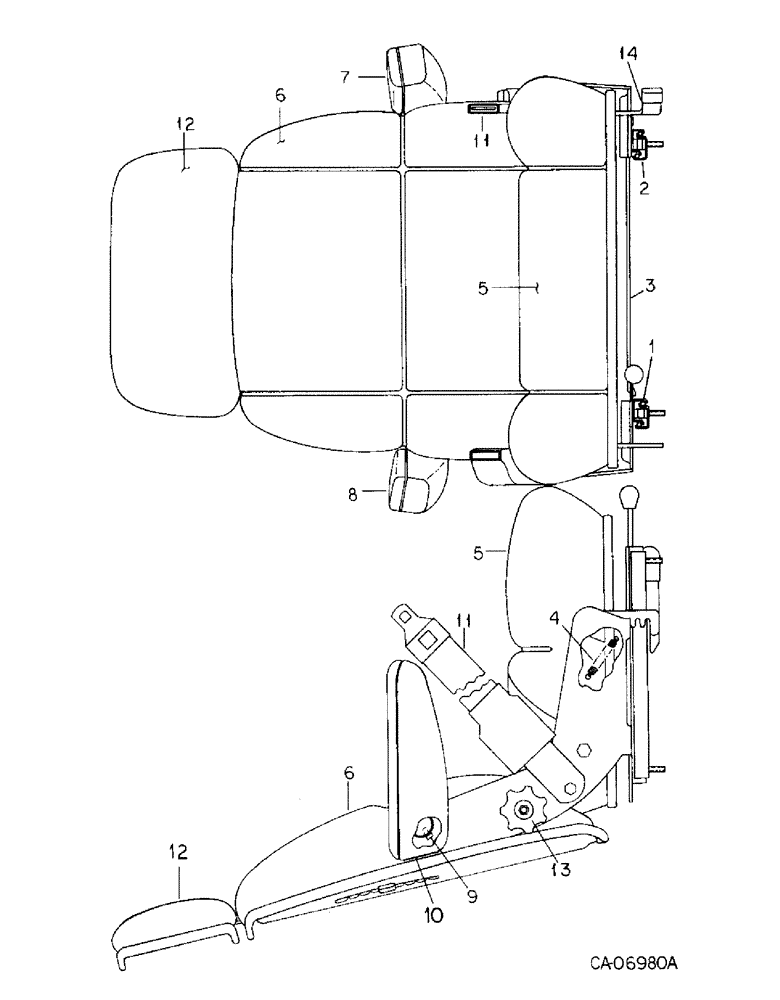

Запчасти Case IH 3488 (13-16) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, SEARS, SERIAL NO. 715 AND ABOVE (05) - SUPERSTRUCTURE

1267557C91

SEAT

ASSY hydraulic, western cab

1шт.

1267385C91

SEAT ASSY.

SEAT ASSY hydraulic, burgandy cab

1шт.

1

1255794C1

SLIDE

ASSY, w/ handle

1шт.

2

139064C1

SLIDE

ASSY, w/ handle

1шт.

3

139066C1

ROD

latch connecting

1шт.

4

64926C1

SPRING

slide adjuster

2шт.

5

143436C1

CUSHION

seat, western

1шт.

5

143430C1

SEAT

CUSHION seat, burgundy

1шт.

6

143437C1

CUSHION

back, western

1шт.

6

143431C1

SEAT

CUSHION back, burgundy

1шт.

7

1267698C1

ARM

REST ASSY western, left

1шт.

7

1262346C1

KIT

ARMREST ASSY burgundy, right

1шт.

8

143439C1

ARM

REST ASSY western, right

1шт.

8

143433C1

KIT

ARMREST ASSY burgundy, right

1шт.

9

139067C1

SCREW,1/4" - 20 x 0.38"

armrest stop

3шт.

10

637970C1

PLATE

cover, left

1шт.

27959R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/2"

SCREW, No. 10-16 x 1-1/2 phc p/hdcr tap

1шт.

10

139072C1

PLATE

cover, right

1шт.

27049R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

SCREW, No. 10-16 x 5/8 phc p/hdcr tap

1шт.

11

143430C1

SEAT

BELT ASSY seat, western

1шт.

11

143434C1

BELT

Seat, Burgundy

1шт.

12

1262062C1

CUSHION

upper backrest, western

1шт.

12

143435C1

CUSHION

upper backrest, burgundy, Not furnished as part of seat

1шт.

13

1267543C1

KNOB

ASSY backrest adj

2шт.

14

1267544C1

LEVER

ASSY seat tilt

1шт.
