(13-15) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, GRAMMER, WESTERN INTERIOR CAB, SERIAL NO. 715 AND ABOVE

Запчасти Case IH 3488 (13-15) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, GRAMMER, WESTERN INTERIOR CAB, SERIAL NO. 715 AND ABOVE (05) - SUPERSTRUCTURE

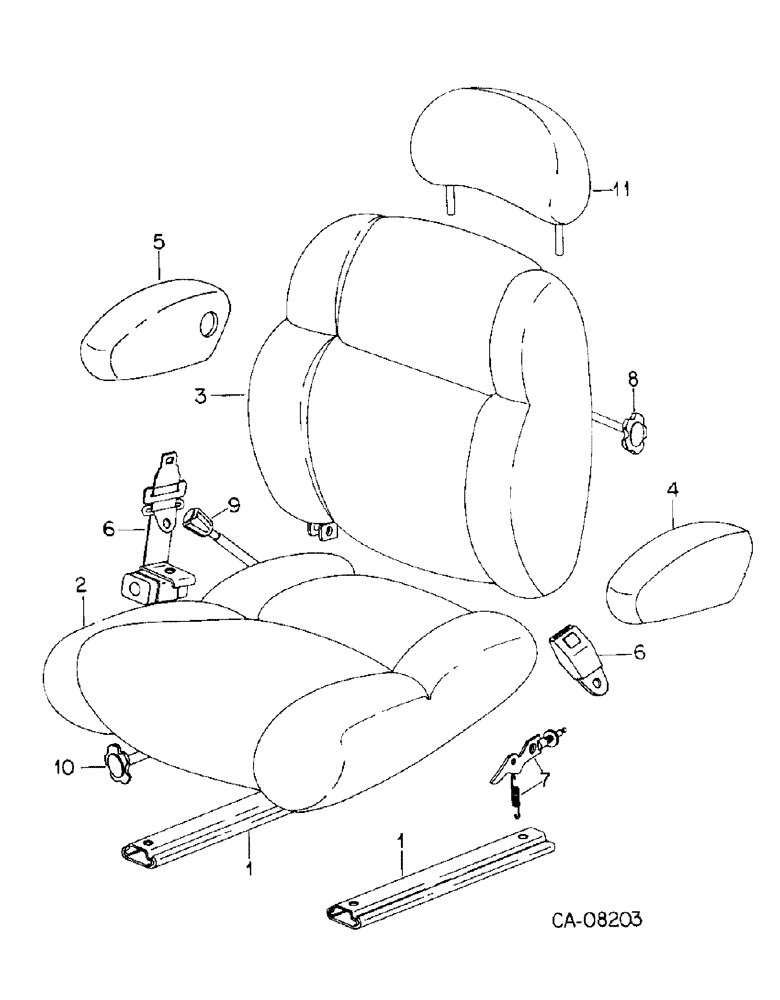

Схема запчастей Case IH 3488 - (13-15) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, GRAMMER, WESTERN INTERIOR CAB, SERIAL NO. 715 AND ABOVE (05) - SUPERSTRUCTURE
8
1
2
7
6
6
1
10
9
4
11
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1267386C91

SEAT

ASSY hydraulic, brown, Includes Ref. 1 - 10

1шт.

1

143443C1

SLIDE

ASSY, w/o handle

2шт.

2

143450C1

CUSHION

seat

1шт.

3

143451C1

CUSHION

back

1шт.

4

1262284C1

ARMREST

ASSY left

1шт.

5

143453C1

ARM

REST ASSY right

1шт.

6

1262285C1

SAFETY BELT

SAFETY BELT

1шт.

7

1267560C1

ADJUSTER

armrest, left

1шт.

8

1267561C1

KNOB

ASSY lumbar adj

1шт.

9

1267562C1

HANDLE

ASSY backrest tilt

1шт.

10

1267563C1

KNOB

ASSY seat cushion tilt

1шт.

11

1262062C1

CUSHION

upper backrest

1шт.
