(13-12) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, WESTERN INTERIOR CAB, SERIAL NO. 714 AND BELOW

Запчасти Case IH 3488 (13-12) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, WESTERN INTERIOR CAB, SERIAL NO. 714 AND BELOW (05) - SUPERSTRUCTURE

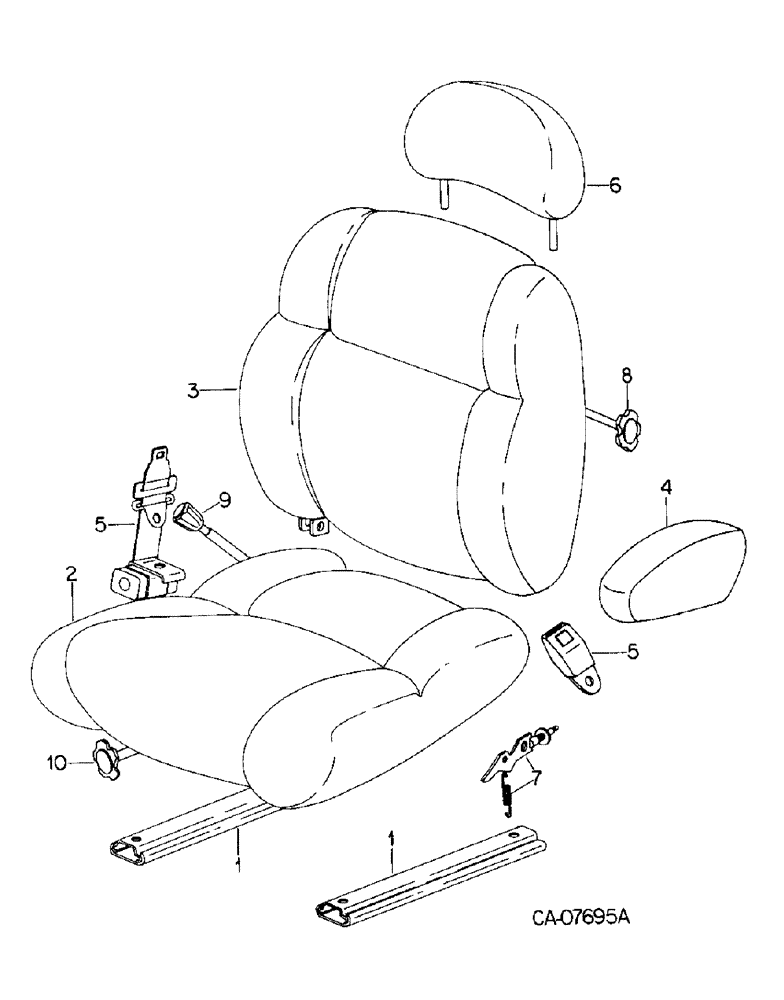

Схема запчастей Case IH 3488 - (13-12) - SUPERSTRUCTURE, DELUXE HYDRAULIC SEAT, WESTERN INTERIOR CAB, SERIAL NO. 714 AND BELOW (05) - SUPERSTRUCTURE
10
8
5
5
1
3
2
4
1
9
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1262090C91

SEAT ASSY.

SEAT ASSY hydraulic western

1шт.

1

143443C1

SLIDE

ASSY, w/o handle

2шт.

2

143450C1

CUSHION

seat

1шт.

3

143451C1

CUSHION

back

1шт.

4

1262284C1

ARMREST

ASSY left

1шт.

5

1262285C1

SAFETY BELT

SAFETY BELT

1шт.

6

1262062C1

CUSHION

upper backrest, brown, Not furnished as part of seat

1шт.

7

1267560C1

ADJUSTER

wide armrest, left

1шт.

8

1267561C1

KNOB

ASSY lumbar adj

2шт.

9

1267562C1

HANDLE

ASSY backrest tilt

1шт.

10

1267563C1

KNOB

ASSY seat cushion tilt

1шт.
