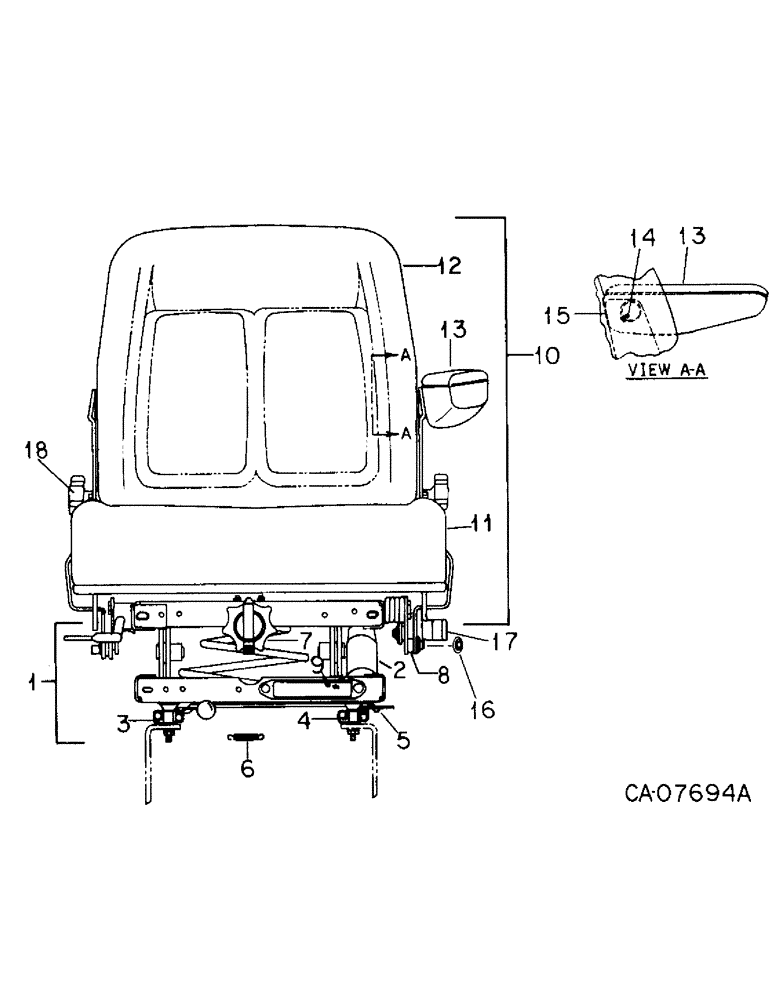

Запчасти Case IH 3488 (13-10) - SUPERSTRUCTURE, DELUXE VERTICAL ACTING SEAT, SERIAL NO. 714 AND BELOW (05) - SUPERSTRUCTURE

SEAT ASSY vertical acting, cloth, On orders for seat assy 1250602C91 furnish Ref. 1, 10, 16, 17 and 18

1шт.

SEAT ASSY vertical acting, vinyl, On orders for seat assy 1250601C91 furnish Ref. 1, 10, 16, 17 and 18

1шт.

1

118580C91

SUPPORT

ASSY, Includes Ref. 2 - 9

1шт.

2

64918C1

SHOCK ABSORBER

ABSORBER shock

1шт.

3

139062C1

SLIDE

ASSY, w/ handle

1шт.

4

139064C1

SLIDE

ASSY, w/o handle

1шт.

5

139065C1

ROD

latch connecting

1шт.

6

64926C1

SPRING

slide adjusting

2шт.

7

118578C1

BUTTON

KNOB weight adjusing

1шт.

8

1250509C1

BUSHING

suspension

1шт.

9

139061C1

INDICATOR

ride height

1шт.

10

1255793C91

SEAT

ASSY cloth

1шт.

10

1255792C91

SEAT

ASSY vinyl, Includes Ref. 11, 12, 13, 14 and 15

1шт.

11

142885C1

CUSHION

cloth

1шт.

11

72937C1

CUSHION

vinyl

1шт.

12

142886C1

CUSHION

back, cloth

1шт.

12

142887C1

CUSHION

back, vinyl

1шт.

13

143432C1

ARM

REST ASSY cloth, left

1шт.

13

139069C1

ARMREST

ASSY vinyl, left

1шт.

14

139067C1

SCREW,1/4" - 20 x 0.38"

armrest stop

1шт.

15

139071C1

PLATE

cover, left

1шт.

27049R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 5/8"

SCREW, No. 10-16 x 5/8 phc p/hdcr tap

1шт.

16

59793C1

FASTENER

push-on

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

120376

NUT,5/16"-18, G5

4шт.

17

1267544C1

LEVER

ASSY seat tilt, Replaces 1267545C1

1шт.

18

1267543C1

KNOB

ASSY backrest adj.

1шт.
