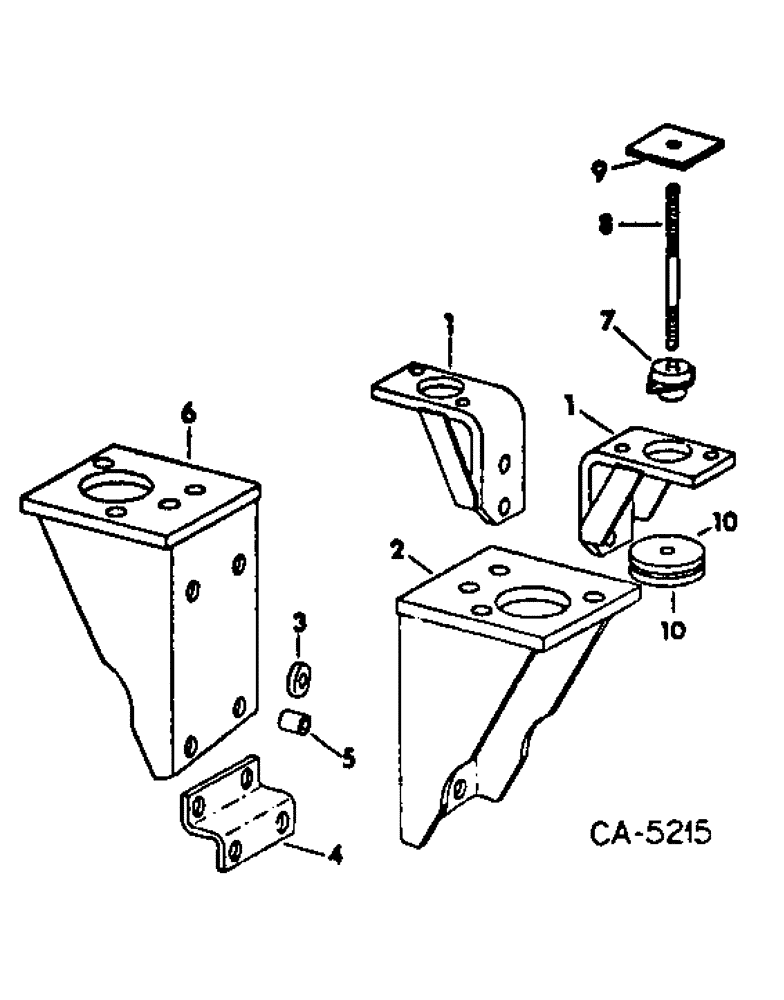

Запчасти Case IH 3488 (13-09) - SUPERSTRUCTURE, PLATFORM SUPPORT (05) - SUPERSTRUCTURE

1

117703C2

SUPPORT

ASSY front mount

2шт.

223450

BOLT,Hex, 3/4" - 10 x 2", Gr 8

3/4 x 2 pln type 8

4шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

4шт.

2

117711C2

BRACKET

ASSY left rear mount

1шт.

20660R1

SCREW,Hex, 5/8"-11 x 1 5/8", G5, Full Thd

BOLT, 5/8 x 1-5/8 pln type 8

2шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

117759C2

WASHER

spacer, rear mount

4шт.

4

109324C1

SUPPORT

rear mount

2шт.

20660R1

SCREW,Hex, 5/8"-11 x 1 5/8", G5, Full Thd

BOLT, 5/8 x 1-5/8 pln type 8

4шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

25528R1

NUT,5/8"-11, G8

5/8 phc type 8

4шт.

228000

BOLT,Hex, 5/8" - 11 x 4 3/4", Gr 8

2шт.

5

120432C1

SPACER

rear mount

2шт.

27352R1

SCREW,Hex, 5/8"-11 x 7 1/2", G8

BOLT, 5/8 x 7-1/2 pln type 8

2шт.

6

117712C1

BRACKET

ASSY right rear mount

1шт.

20660R1

SCREW,Hex, 5/8"-11 x 1 5/8", G5, Full Thd

BOLT, 5/8 x 1-5/8 pln type 8

2шт.

12574

WASHER lock, 5/8

2шт.

117759C2

WASHER

rear mount

2шт.

7

117722C4

INSULATOR

ASSY mount

4шт.

30487R1

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

M12 x 40 pln class 8.8

8шт.

28423R1

WASHER

0.531 x 1.250 x 0.188 hdn

8шт.

933966R1

LOCK WASHER,M12

WASHER lock, 12 MM

8шт.

30169R1

NUT,M12 x 1.75, Cl 10

M12 phc class 10

8шт.

8

117766C1

STUD

mounting, IDO

4шт.

9

117737C1

PLATE

BAR plate, tapped

4шт.

10

135783C1

SPACER

flat washer, 9/16 x 3-1/2, Or

4шт.

Not to be intermixed when installed on tractor.

1шт.

10

1267524C1

SPACER

flat washer, 5/16 x 3-1/2

4шт.

Not to be intermixed when installed on tractor.

1шт.

220081

NUT

3/4 pln type 5

8шт.

117779C1

WASHER,13/16" x 1 3/4" x .219", HDN

0.812 x 1.750 x 0.219 znd hdn

4шт.

280954

NUT,3/4"-10, G5

12шт.
