Запчасти Case IH 3488 (13-08) - SUPERSTRUCTURE, OPERATORS PLATFORM (05) - SUPERSTRUCTURE

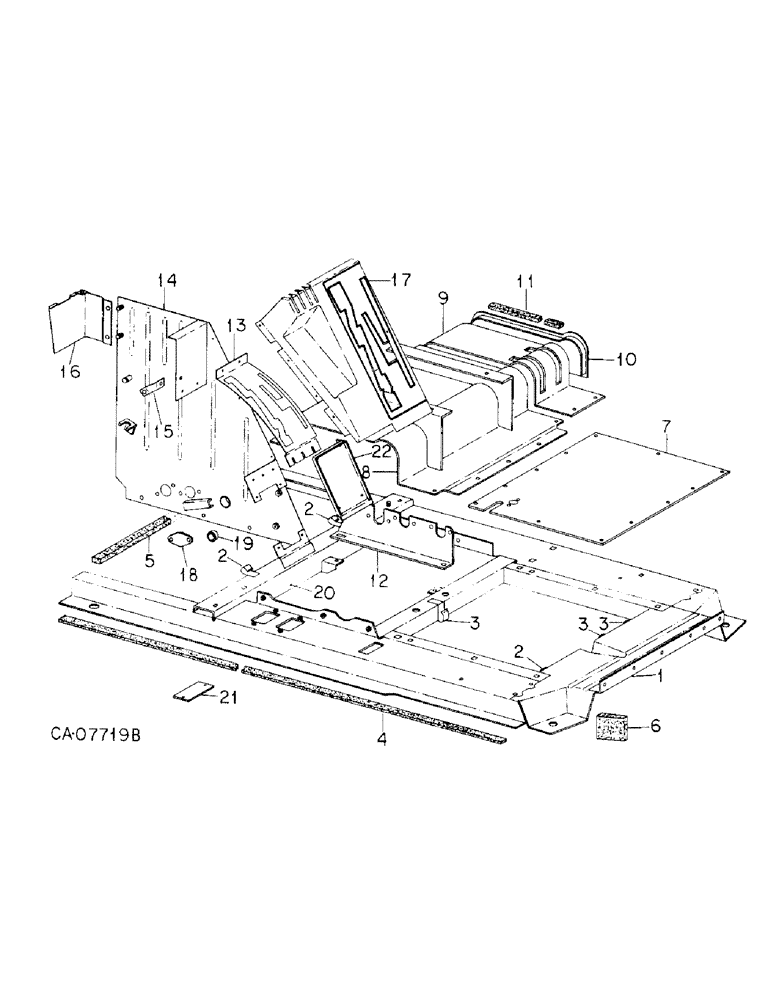

Схема запчастей Case IH 3488 - (13-08) - SUPERSTRUCTURE, OPERATORS PLATFORM (05) - SUPERSTRUCTURE
20
12
3
2
4
19
10
16
22
8
9
6
2
13
21
14
15
7
5
17
3
3
2
11
1
18

Артикул

Название

Примечание

Количество

1

130318C8

FRAME

ASSY platform sub

1шт.

30673R1

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 35mm, Cl 8.8

BOLT, M12 x 35 crg class 8.8

2шт.

30169R1

NUT,M12 x 1.75, Cl 10

M12 phc class 10

2шт.

933966R1

LOCK WASHER,M12

WASHER lock, 12 MM

2шт.

130287C1

NUT

M8 x 1.25 cage

9шт.

143902C1

NUT

M10 x 1.5 cage

7шт.

2

384557R1

CLIP

floodlight and cab wiring harness

4шт.

3

366460R1

CABLE CLIP

CLIP cable harness

3шт.

4

STRIP sub frame side, For tractor equipped w/cab, Furnish 1067 MM of foam gasket from 4 ft. length marked 1264567C1

2шт.

5

109257C1

SEALING STRIP

sub frame rear

1шт.

6

104753C1

SEAL

sub frame front

2шт.

7

104165C2

PLATFORM

sub-frame

1шт.

30301R1

SCREW,Cross Pan Hd, M8 x 20

M8 x 20 MM znp p/hdcr mach

1шт.

8

143999C3

COVER

ASSY seat support

1шт.

130287C1

NUT

M8 x 1.25 cage

3шт.

11106231

BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9

M10 x 25 class 8.8

5шт.

9

1251783C3

COVER park lock control

1шт.

30601R1

SCREW,Cross Pan Hd, M10 x 20

M10 x 20 phc class 4.8 p/hdcr

2шт.

30284R1

NUT,M10, Cl 10

M10 class 10

1шт.

10

1252954C2

PLATE

ASSY control, left

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

2шт.

10

1252994C92

PLATE

ASSY control, left, For tractors w/ AWD w/ one-piece drive shaft only

1шт.

379748R1

BUSHING

hub

1шт.

11

STRIP seat support dust, Furnish 660 MM of foam gasket from 4 ft length marked 73320C1

1шт.

12

1252891C1

SUPPORT

shift linkage

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

2шт.

13

1252944C2

SECTOR

shift console, right

1шт.

930105R1

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

M6 x 20 pln class 8.8

5шт.

14

1252957C6

PANEL

CONSOLE ASSY right

1шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

3шт.

15

1252983C1

BRACE

console

1шт.

814-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

1шт.

934309R1

LOCK WASHER,M8

WASHER lock, 8 MM

1шт.

16

1251647C3

BRACKET

console, right

1шт.

30208R1

NUT,M6, Cl 10

M6 phc class 10

1шт.

17

1252943C5

COVER

console, right

1шт.

1264518C1

SCREW,#10 - 16 x 1/2"

console mounting, 10-16 x 1/2

7шт.

18

103926C1

PLATE

speed trans. opening cover

1шт.

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

2шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

2шт.

19

487139R1

BUSHING,28.65mm ID x 31.77mm OD x 12.7mm L

Part of right console assy

2шт.

20

1253116C3

ANGLE

ASSY sub frame rear

1шт.

21

143565C1

COVER

draft control opening, For tractors w/o draft control

1шт.

931143R1

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

M10 x 20 pln class 8.8

2шт.

30184R1

WASHER,M10 x 24.5 x 3, HT

10.8 x 24 x 3 MM phc

2шт.

22

NOT USED IN THIS APPLICATION

1шт.

Выбрано товаров: 46
