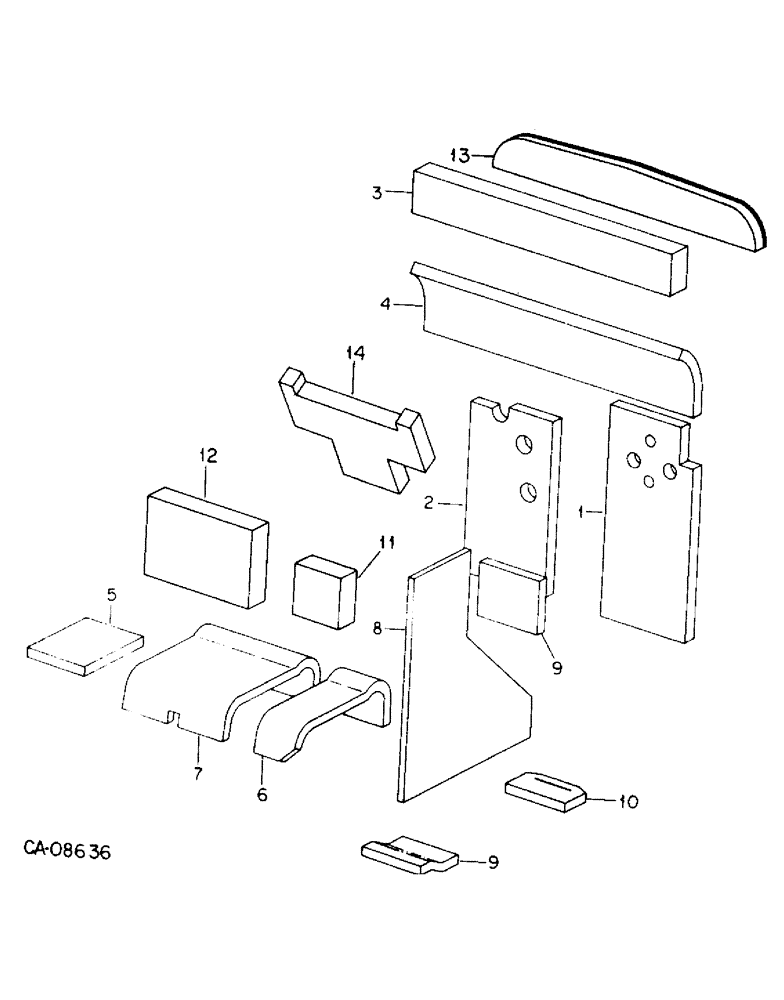

Запчасти Case IH 3488 (13-06) - SUPERSTRUCTURE, SOUND INSULATION (05) - SUPERSTRUCTURE

1

120320C2

PAD

insulation, right firewall sound

1шт.

2

120321C3

PAD

insulation, left firewall sound

1шт.

3

1251803C3

PAD

insulation, upper instrument housing, For tractors w/ cab only

1шт.

4

120356C1

PAD

insulation, upper instrument housing, large, For tractors w/ cab only

1шт.

5

120329C1

PAD

bottom rear insulation, left console , For tractors w/ cab only

1шт.

6

144043C1

PAD

insulation, center seat support , For tractors w/ cab only

1шт.

7

144044C1

PAD

insulation, center seat support, w/ vertical acting, For tractors w/ cab only

1шт.

7

1270528C1

PAD

insulation, center seat support, w/ hydraulic, For tractors w/ cab only

1шт.

8

1259544C1

PAD

insulation, right console side

1шт.

9

PAD front and bottom rear insulation, right console, Furnish (1) piece of 120356C1 and cut to size, For tractors w/ cab only

2шт.

10

PAD bottom front insulation, right console, Furnish (1) piece of 120356C1 and cut to size, For tractors w/ cab only

1шт.

11

1276082C1

PAD instrument housing, small sound barrier, 100 MM sq x 50.8, For tractors w/ cab only

5шт.

12

NOT USED IN THIS APPLICATION

1шт.

13

1276081C1

STRIP

PAD instrument housing to glass sound barrier, For tractors w/ cab only

1шт.

14

1251706C1

PAD

insulation, lower instrument housing, For tractors w/ cab only

1шт.
