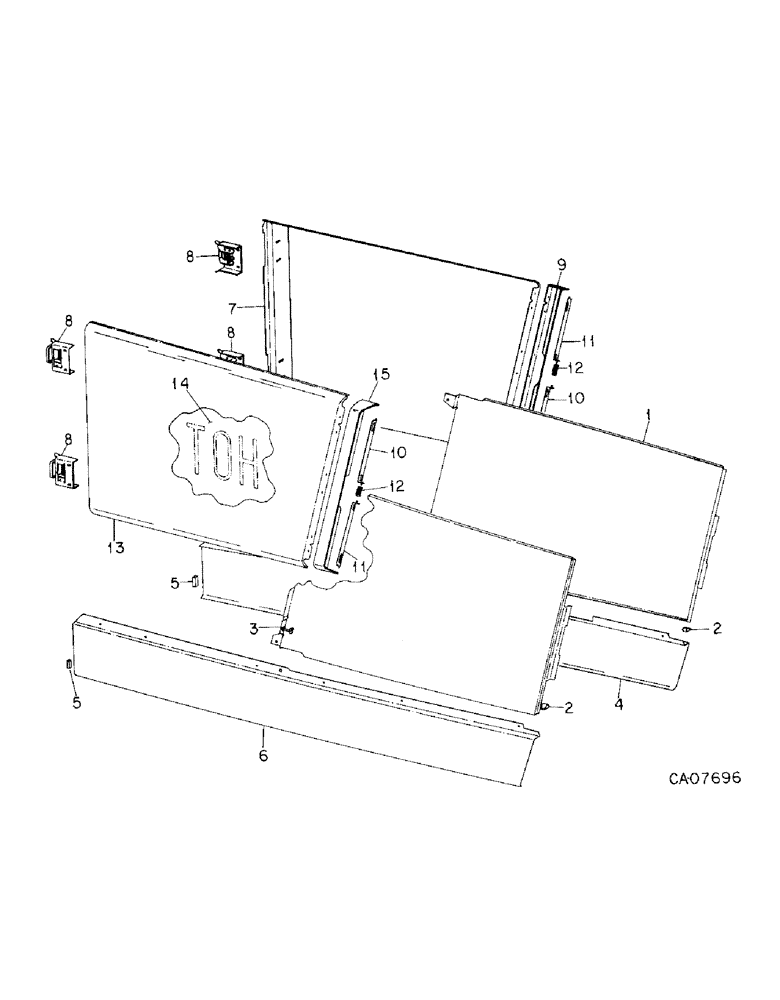

Запчасти Case IH 3488 (13-01) - SUPERSTRUCTURE, SIDE PANEL AND RELATED PARTS (05) - SUPERSTRUCTURE
№
Артикул
Название
Примечание
Количество
1
149053C2
PANEL
ASSY side front center, left
1шт.
30208R1
NUT,M6, Cl 10
M6 phc class 10
2шт.
30381R1
NUT,M6 x 1, Cl 10
NUT, M6 phc p/t class 10
2шт.
1270467C1
PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8
BOLT, M8 x 16 class 8.8, polyseal
1шт.
1270584C1
PREV TORQUE BOLT,Hex, M8 x 16mm
SCREW hex hd, w/ washer, M8 x 16 polyseal
1шт.
2
1251885C1
SEAL
front side panel
2шт.
3
149054C2
PANEL
ASSY side front center, right
1шт.
30208R1
NUT,M6, Cl 10
M6 phc class 10
2шт.
30381R1
NUT,M6 x 1, Cl 10
NUT, M6 phc p/t class 10
2шт.
1270467C1
PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8
BOLT, M8 x 16 class 8.8, polyseal
1шт.
1270584C1
PREV TORQUE BOLT,Hex, M8 x 16mm
SCREW hex hd, w/ washer, M8 x 16 polyseal
1шт.
4
130190C1
PANEL
lower left side
1шт.
130286C1
NUT
M8 x 1.25 cage
1шт.
1270467C1
PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8
BOLT, M8 x 16 class 8.8, polyseal
3шт.
5
1253139C1
PAD
lower side panel bumper
2шт.
6
130191C1
PANEL
lower right side
1шт.
130286C1
NUT
M8-1.25 cage
1шт.
1270467C1
PREV TORQUE BOLT,Hex, M8 x 16mm, Cl 8.8
BOLT, M8 x 16 class 8.8, polyseal
3шт.
7
130594C2
PANEL ASSY.
PANEL ASSY side rear center, left
1шт.
8
1251816C1
HINGE
ASSY latch
4шт.
934948R1
WASHER,M6
6.4 x 12.5 x 1.6 MM
8шт.
933833R1
LOCK WASHER,M6
WASHER, 6 mm lock
8шт.
1270485C1
NUT,M6 x 1, Flg, Cl 8
M6 flange thread clearing
8шт.
9
148966C1
MOLDING
side rear center, left
1шт.
10
1251707C2
SLIDE
ASSY side panel latch, left
2шт.
11
1251708C2
SLIDE
ASSY side panel latch, right
2шт.
12
149076C1
SPRING
front latch
2шт.
148526C2
BOLT,Shldr, Wshr Hd, M6 x 1 x 14mm, Cl 8.8
shoulder, washer hd
8шт.
149077C1
NUT
slide latch
8шт.
934948R1
WASHER,M6
6.4 x 12.5 x 1.6 MM
16шт.
931479R1
BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd
M6 x 12 phc class 8.8
4шт.
30281R1
NUT,M6, Cl 10
M6 class 10
2шт.
13
130595C2
PANEL
ASSY side rear center, right
1шт.
130285C1
NUT
M8 x 1.25 cage
4шт.
14
1251713C1
SHIELD
right side heat
1шт.
814-8016
BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd
4шт.
15
148967C1
MOLDING
side rear center, right
1шт.
Выбрано товаров: 37
