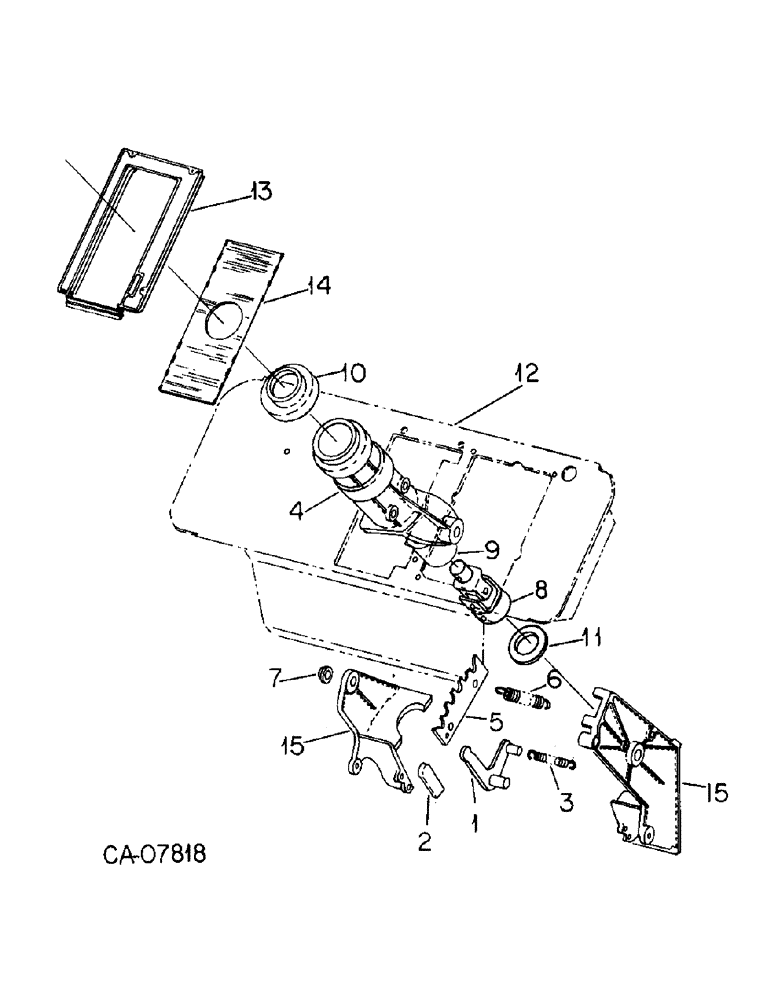

Запчасти Case IH 3488 (05-02) - STEERING, TILT-TELESCOPING STEERING (04) - STEERING

1

148904C1

LEVER

ASSY tilt steering lock

1шт.

2

1259793C1

GRIP

tilt steering lock, knob

1шт.

3

538321R1

SPRING

lever detent

1шт.

4

148422C3

HOUSING

tilt steering support

1шт.

5

148915C1

PLATE

tilt steering detent

1шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc class 8.8

2шт.

6

148480C1

SPRING

tilt wheel support

1шт.

7

148920C1

BUSHING

tilt wheel support

2шт.

931492R1

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

M12 x 50 pln class 8.8

2шт.

933966R1

LOCK WASHER,M12

WASHER lock, 12 MM

2шт.

8

148431C1

JOINT

universal steering

1шт.

617944R1

PIN,3/8" x 1 3/4", Coiled

2шт.

9

148424C1

BUSHING

steering tube inner

2шт.

10

148921C1

CAP

steering column

1шт.

11

148481C1

SEAL,40mm ID x 58mm OD x 8mm Thk

hand pump shaft

1шт.

12

PANEL ASSY instrument, See group 11

1шт.

13

148409C1

SUPPORT

TRACK tilt wheel support

1шт.

14

148411C2

COVER

tilt wheel

1шт.

103957C1

NUT

speed type J

3шт.

26304R1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW, No. 10-16 x 3/4 phc p/hdcr tap

3шт.

931562R1

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

M8 x 16 phc class 8.8

2шт.

934309R1

LOCK WASHER,M8

WASHER lock, 8 MM

1шт.

15

148426C91

SUPPORT

ASSY tilt steering

1шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

2шт.

30910R1

NUT,M8, Cl 10

M8 class 10

2шт.
