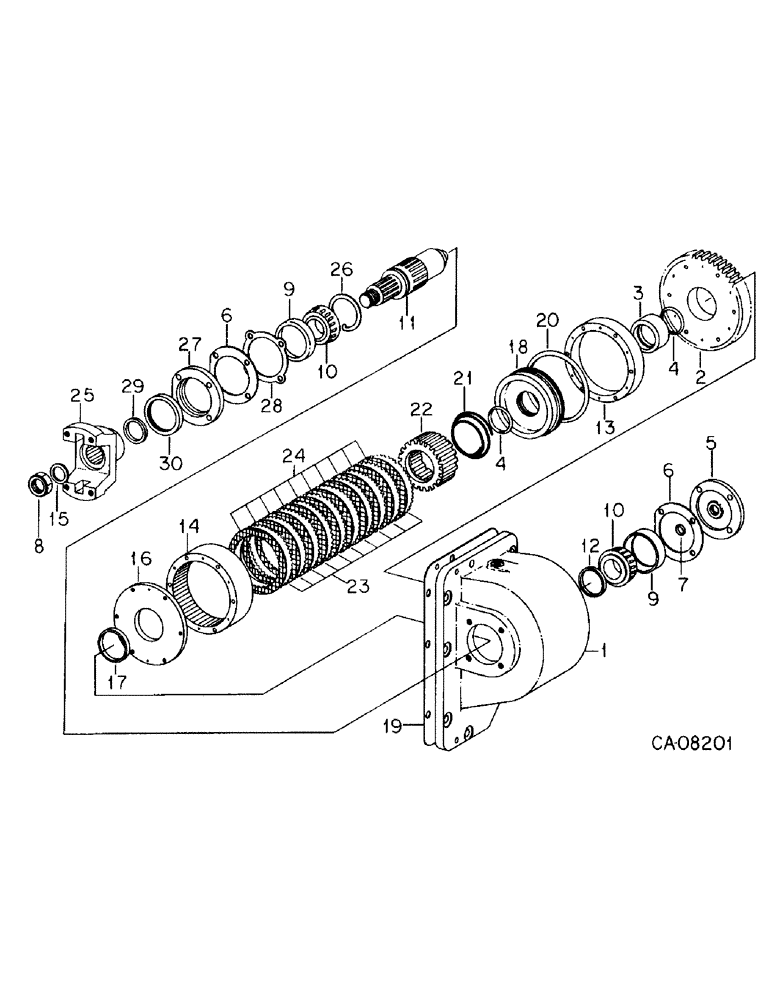

Запчасти Case IH 3488 (07-48) - DRIVE TRAIN, TRANSFER CASE, TRACTORS WITH ALL WHEEL DRIVE, WITH TWO PIECE DRIVE SHAFT (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
1264605C1
HOUSING
transfer, 38T
1шт.
208100H1
CAPSCREW,Flange, 1/2" x 1.25", Alloy Steel
SCREW, 1/2" x 0.250 pln. ast.12 pt. flg.
6шт.
20024R1
PIN
dowel, 3/8" x 1.000 pln. hdn.
2шт.
180175
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2" x 1-1/4" type 5
2шт.
2
1264606C1
GEAR
38T
1шт.
1264614C1
PIN
dowel, 3/16" x 2.5 hardened
6шт.
1264622C1
SCREW,1/4" - 20 x 4", Gr 8
machine, 1/4-20 x 4.0 sh.
6шт.
3
1264611C1
BUSHING
clutch shaft, rear
1шт.
4
1264688C1
O-RING,1.737" ID x 1.943" OD x 0.103"
O-RING, 1-3/4" ID
2шт.
5
1264607C1
CAP
rear
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8" x 1" type 5
4шт.
6
1264782C1
GASKET
front and rear bearing
2шт.
7
1264687C1
O-RING,0.647" ID x 0.88" OD x 0.103"
O-RING
1шт.
8
1264609C1
COPPER WASHER
copper, 3/8"
4шт.
148761C1
NUT
lock
1шт.
180122
BOLT,Hex, 3/8" - 16 x 1", Gr 5
3/8" x 1" type 5
4шт.
9
148722C1
BEARING CUP,72.01mm OD x 14.29mm W
cup
2шт.
10
148723C1
BEARING cone
2шт.
11
1264608C1
SHAFT
clutch drive
1шт.
12
1264610C1
SPACER
gear bushing
1шт.
13
1264612C1
HOUSING
hyd. piston
1шт.
14
1264613C1
HUB
clutch drive
1шт.
19878R1
DOWEL,3/16" x 1"
PIN dowel, 3/16" x 1.0 pln. hdn.
1шт.
15
148760C1
WASHER
1шт.
16
1264615C1
PLATE
clutch housing back
1шт.
17
1264616C1
BUSHING
clutch housing back plate
1шт.
18
1264617C1
PISTON
1шт.
19
385757R2
GASKET
housing
1шт.
20
1264689C1
O-RING,4.487" ID x 4.693" OD x 0.103"
O-RING, 4-1/2" ID
1шт.
21
1264618C1
SPRING
hyd. piston
1шт.
22
1264619C1
HUB
clutch drive shaft
1шт.
23
1264620C1
PLATE
separator
10шт.
24
1264621C1
LARGE PLATE
PLATE friction
10шт.
25
148734C1
YOKE
end
1шт.
26
1264623C1
RING
retaining, clutch pack
1шт.
27
1264624C1
CAP
seal
1шт.
28
1264625C1
SHIM
seal cap, 0.005
1шт.
28
1264626C1
SHIM
seal cap, 0.007
1шт.
28
1264648C1
SHIM
seal cap, 0.020
1шт.
29
1264627C1
SPACER
yoke
1шт.
30
1251590C1
SEAL
SEAL
1шт.
Выбрано товаров: 41
