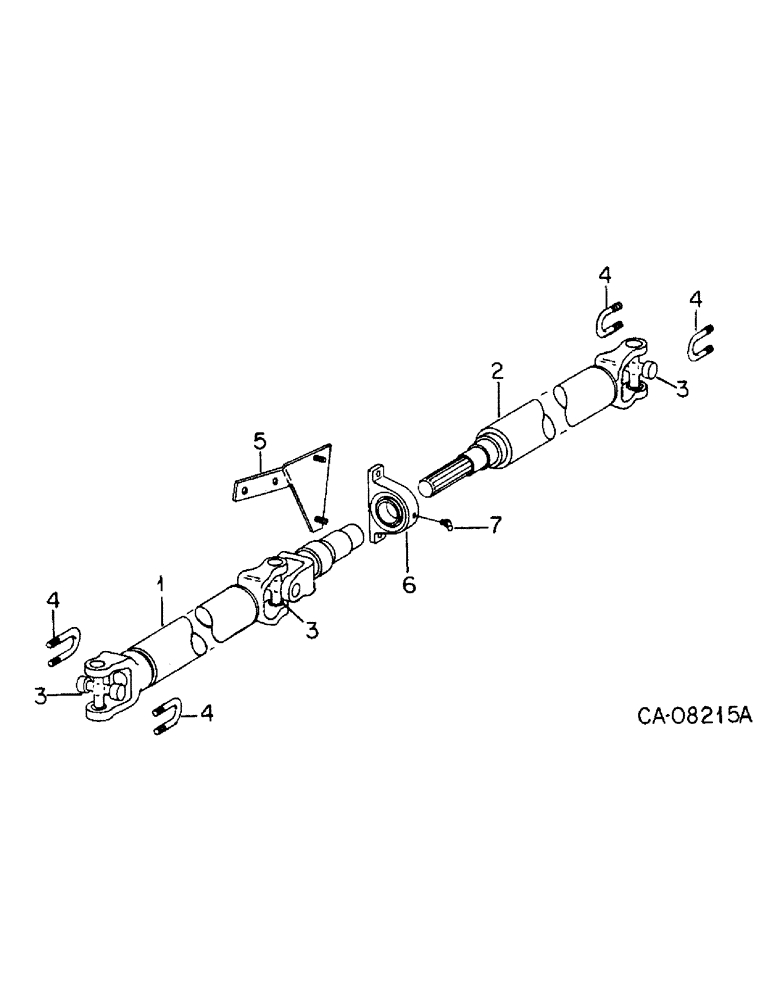

Запчасти Case IH 3488 (07-47) - DRIVE TRAIN, DRIVE SHAFT, TRACTOR WITH ALL WHEEL DRIVE, WITH TWO PIECE DRIVE SHAFT (04) - Drive Train

1

1264657C1

SHAFT ASSY.

front drive

1шт.

2

1264694C1

SHAFT

ASSY. rear drive

1шт.

3

133137C91

KIT

SPIDER ASSY. cross and bearing

3шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING lube, 1/8" ptf. x/ short

3шт.

4

204138R1

BOLT,7/16" - 20 x 2 1/4"

U-BOLT

4шт.

425-117

NUT,7/16"-20, G5

7/16-NF pln. type 5

8шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

8шт.

5

1264669C1

PLATE ASSY.

BRACKET ASSY center bearing

1шт.

495-11081

WASHER,3/4", SAE

0.812 x 1.469 x 0.108

2шт.

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

6

1264658C1

FLANGED BEARING

ASSY center

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

7

16964R91

FITTING

lube, 1/4" 90D

1шт.
