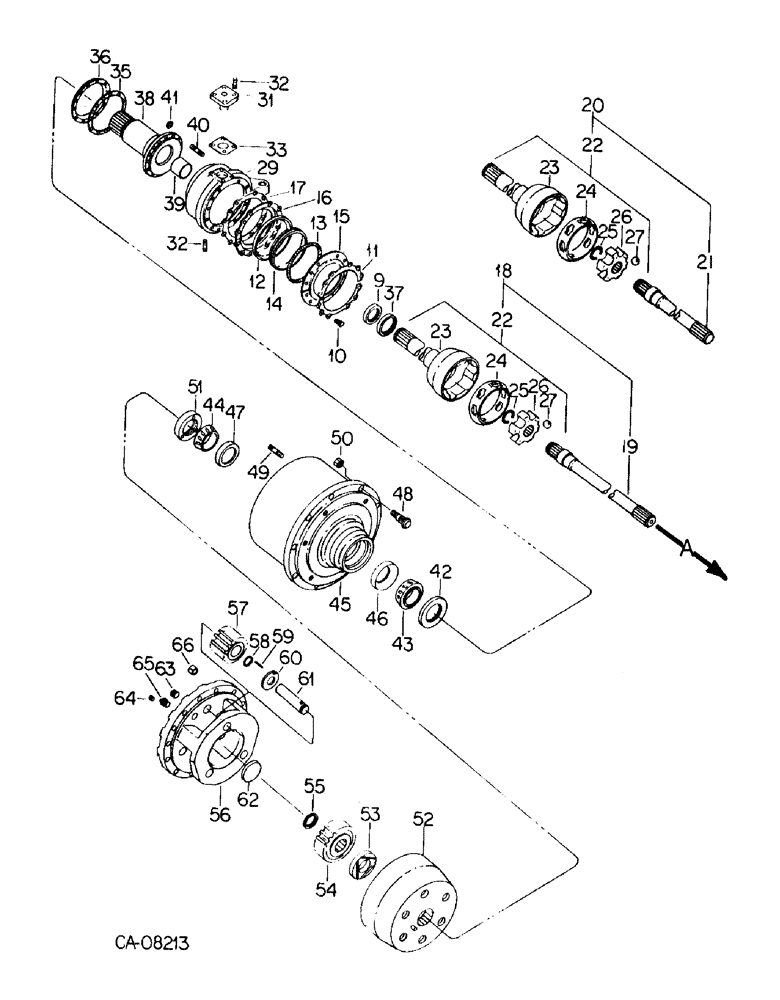

Запчасти Case IH 3488 (07-42) - DRIVE TRAIN, PLANETARY STEERING AXLE, TRACTORS WITH ALL WHEEL DRIVE, WITH TWO PIECE DRIVE SHAFT (04) - Drive Train

1

1264701C1

HOUSING

ASSY

1шт.

2

78787C1

BREATHER

ASSY air-vent

1шт.

3

444699

PLUG,Hex Soc, 3/8"-18

auto pipe, 3/8-18 pln hex/skt

2шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING lube, 1/8 ptf x/short

4шт.

5

1264700C1

ROD

ASSY tie

1шт.

6

FO445751

PLUG

auto pipe, 1/2-14 pln sq/skt

1шт.

7

871245R1

BEARING, CUP,72.233 mm OD x 19.842 mm

BEARING cup

4шт.

8

503098C91

BEARING ASSY,35.72mm ID x 25.4mm W

BEARING cone

4шт.

9

78879C91

OIL SEAL

SEAL oil

2шт.

10

78789C1

BOLT (SPREADER),Lock, 5/16" - 18 x 1/2"

BOLT

24шт.

11

503080C1

RETAINER

oil seal

4шт.

12

503083C1

FELT SEAL

SEAL knuckle felt

2шт.

13

503079C1

VALVE SPRING

SPRING coil tension

2шт.

14

503082C1

OIL SEAL

SEAL oil

2шт.

15

503091C1

RETAINER

oil seal

2шт.

16

503081C1

RETAINER

oil seal

2шт.

17

473016C1

GASKET

oil

2шт.

18

78796C91

BALL JOINT

SHAFT ASSY right

1шт.

19

78798C1

SHAFT

right

1шт.

20

1264691C91

SHAFT

ASSY left

1шт.

21

1264692C1

SHAFT

left

1шт.

22

78800C91

UNIVERSAL JOINT

JOINT ASSY

2шт.

23

SHAFT, Not serviced separately, Order joint assy 78800C91

2шт.

24

CAGE, Not serviced separately, Order joint assy 78800C91

2шт.

25

RING, Not serviced separately, Order joint assy 78800C91

2шт.

26

RACE, Not serviced separately, Order joint assy 78800C91

2шт.

27

BALL metal, 1-1/16 grade 25, Not serviced separately, Order joint assy 78800C91

2шт.

28

78805C2

KNUCKLE JOINT

KNUCKLE steering, left

1шт.

29

78806C2

STEERING KNUCKLE

KNUCKLE stering, right

1шт.

30

78839C1

STUD

dowel

6шт.

31

503087C1

CYLINDER END CAP

CAP king pin

1шт.

32

78808C1

STUD

dowel

16шт.

9411648

LOCK NUT,1/2"-20, GC

NUT lock, 1/2-NF phc p/t type 8

16шт.

33

473001C1

SHIM

knuckle bearing, 0.005

3шт.

33

78810C1

SHIM

knuckle bearing, 0.010

3шт.

34

78840C1

STUD

dowel

4шт.

232-4617

LOCK NUT,7/16"-20, GC

NUT lock, 7/16-NF phc p/t type 8

10шт.

35

78814C1

RETAINER

2шт.

36

78815C1

RETAINER

hub oil

2шт.

37

78880C91

OIL SEAL

SEAL oil

2шт.

38

78816C1

SHAFT

2шт.

39

472988C1

BUSHING

spindle

2шт.

40

78817C1

STUD

dowel

24шт.

232-4617

LOCK NUT,7/16"-20, GC

NUT lock, 7/16-NF phc p/t type 8

24шт.

41

78818C1

WASHER

flat

24шт.

42

442671C1

OIL SEAL

SEAL oil

2шт.

43

572900C1

BEARING cone

2шт.

44

238661R91

CRANKSHAFT BEARING

BEARING cone

2шт.

45

78819C1

HUB

2шт.

46

572901R1

BEARING, CUP,121.4552 mm OD x 24.7091 mm

BEARING cup

2шт.

47

54538H

BEARING CUP

BEARING cone

2шт.

48

1277272C1

WHEEL BOLT

BOLT wheel stud, For use w/ wheel center disc 1280983C1

2шт.

48

78820C2

BOLT (SPREADER),3/4" - 16 x 2.6", Grade 8

BOLT wheel stud, For use w/ wheel center disc 1270959C1 and 1264664C1

10шт.

49

78821

STUD dowel

24шт.

50

352536R1

NUT

wheel, For use w/ wheel center disc (20) 1280983C1 and (10) 1270959C1

1шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

0.812 x 1.500 x 0.134 hdn

10шт.

50

78822C1

NUT

wheel, For use w/ wheel center disc 1264664C1

10шт.

51

1251800C1

NUT

lock

2шт.

52

1251801C1

GEAR WHEEL

GEAR planetary ring, 61T

2шт.

53

78825C1

BUSHING

flat spacer

2шт.

54

78826C1

GEAR WHEEL

GEAR sun

2шт.

55

78827C1

RING

retaining

2шт.

56

78828C1

FLANGE

planetary drive

2шт.

57

78829C1

PINION

GEAR planet

6шт.

58

78830C1

WASHER

planet gear

6шт.

59

78831C1

NEEDLE ROLLER,Needle, 3.17mm OD x 24.43mm L

PIN planet gear needle bearing

300шт.

60

78832C1

WASHER

planet gear

12шт.

61

78833C1

PIN

planet gear shaft

6шт.

553686R1

LOCK PIN,3/16" x 1 1/2", Slotted

Pin, 3/16" x 1 1/2", Slotted

6шт.

62

78834C1

AXLE PIN

PIN thrust washer

2шт.

63

445751

auto pipe, 1/2-14 pln sq/skt

4шт.

64

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, , pln Slotted, Headless, 1/8" NPT

2шт.

65

27632R1

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

FITTING lube, 1/8 ptf short pressure

2шт.

66

78836C1

BUSHING

stud

24шт.

232-4617

LOCK NUT,7/16"-20, GC

NUT, 7/16-NF phc p/t lock type 8

24шт.

67

1264696C2

BUSHING

rear pivot pin

1шт.

68

1264695C2

BUSHING

front pivot pin

1шт.

69

1251736C1

WASHER

rear pivot tube

1шт.

70

1251735C1

WASHER

front pivot tube

1шт.

71

1264698C1

PIN

rear axle pivot

1шт.

631252R1

HEADED PIN,9.53mm OD x 104.78mm L

PIN, 3/8 x 4.125 pln hd type 5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

72

1280706C1

PIN

front axle pivot, For tractors w/ front bolster 1280705C1

1шт.

1280683C1

AXLE PIN,12.7mm OD x 178mm L

PIN retaining

1шт.

934792R1

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 MM pln

1шт.

72

1264697C1

PIN

front axle pivot, For tractors w/ front bolster 130115C2

1шт.

28431R1

HEADED PIN,3/8" x 6 1/8"

PIN, 3/8 x 6-1/8 x 5.984 hd type 5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

73

1270894C1

STOP

oscilation, 6 deg

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4 type 5

2шт.

74

1270895C1

STOP

steering, 28 deg

1шт.
