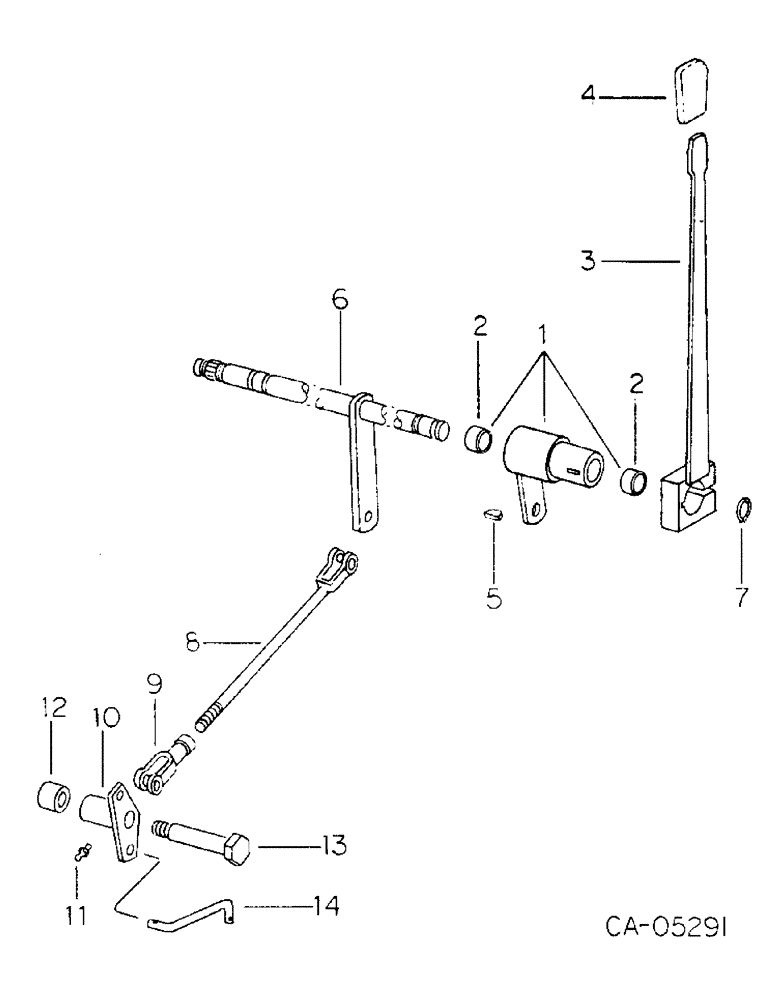

Запчасти Case IH 3488 (07-41) - DRIVE TRAIN, ALL WHEEL DRIVE CONTROLS, TRACTOR WITH ALL WHEEL DRIVE, WITH ONE PIECE DRIVE SHAFT (04) - Drive Train

1

104685C91

SHAFT

HUB ASSY. trans rod actuating

1шт.

2

363768R1

BUSHING

hub

2шт.

2

142373C1

BUSHING

2шт.

3

1252993C3

LEVER

control

1шт.

9706704

BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8

M10 x 35 class 8.8

1шт.

30284R1

NUT,M10, Cl 10

M10 class 10

1шт.

933965R1

LOCK WASHER,M10

1шт.

4

1253018C2

KNOB

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

5

124549

WOODRUFF KEY,#9, 3/16" x 3/4", HT

1шт.

6

1252770C2

SHAFT

ASSY park interlock

1шт.

7

23090R1

SNAP RING,#75, Ext

Ring, Snap, , park interlock shaft #75, Ext

2шт.

8

104693C1

ROD

ASSY AWD actuating

1шт.

9

116537

SPACER

CLEVIS short plain, 7/16-20" adj.

1шт.

271505

BODY

7/16-NF pln. type 5

1шт.

16618R1

CLEVIS PIN,7/16" x 1.190"

PIN clevis, 7/16" x 1.190 pln.

2шт.

61252H

WASHER

0.469 x 0.750 x 0.105 pln.

4шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.

10

144274C1

LEVER

BELLCRANK ASSY trans drive

1шт.

11

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING lube, 3/16" str. drive

1шт.

12

385822R1

SPACER bellcrank

1шт.

13

385827R1

BOLT,Hex, 5/8" - 11 x 3 3/4"

bellcrank pivot

1шт.

14

144275C1

ROD

trans drive shifter

1шт.

496-21047

WASHER

0.469 x 0.922 x 0.051 pln.

2шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

2шт.
