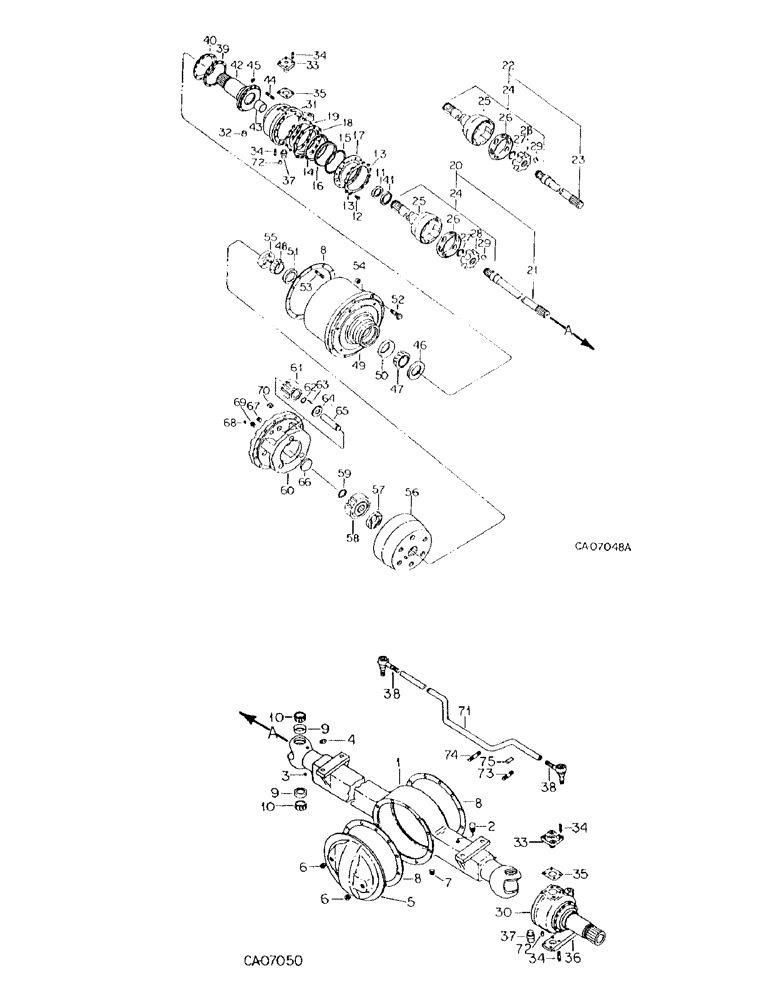

Запчасти Case IH 3488 (07-38) - DRIVE TRAIN, PLANETARY STEERING AXLE, TRACTORS WITH ALL WHEEL DRIVE, WITH ONE PIECE DRIVE SHAFT (04) - Drive Train

1

78786C1

HOUSING

ASSY axle

1шт.

2

78787C1

BREATHER

ASSY axle air-vent

1шт.

3

444699

PLUG,Hex Soc, 3/8"-18

3/8-18 autom hex-s/c-hd pipe

2шт.

4

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING lube, 1/8 ptf extra short

2шт.

5

78788C91

SPARE PART

COVER ASSY carrier, Includes Ref. 6 and 7

1шт.

182751

BOLT

7/16-NF x 1 phc type 5

10шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

10шт.

6

9409949

DRAIN PLUG

3/4-14 autom sq-soc-hd pipe

2шт.

7

FO445751

PLUG

1/2-14 autom sq-soc-hd pipe

1шт.

8

939177C1

GASKET

sealant, 3 oz tube

2шт.

9

871245R1

BEARING, CUP,72.233 mm OD x 19.842 mm

BEARING cup

4шт.

10

503098C91

BEARING ASSY,35.72mm ID x 25.4mm W

BEARING cone

4шт.

11

78879R91

SEAL oil

2шт.

12

78789C1

BOLT (SPREADER),Lock, 5/16" - 18 x 1/2"

BOLT

24шт.

13

503080C1

RETAINER

oil seal

4шт.

14

503083C1

FELT SEAL

SEAL knuckle felt

2шт.

15

503079C1

VALVE SPRING

SPRING coil tension

2шт.

16

503082C1

OIL SEAL

SEAL oil

2шт.

17

503091C1

RETAINER

oil seal

2шт.

18

503081C1

RETAINER

oil seal

2шт.

19

473016C1

GASKET

oil

2шт.

20

78797C91

JOINT

ASSY shaft, right

1шт.

21

78799C1

SHAFT

right

1шт.

22

78796C91

BALL JOINT

JOINT ASSY shaft, left

1шт.

23

78798C1

SHAFT

left

1шт.

24

78800C91

UNIVERSAL JOINT

JOINT ASSY

2шт.

25

78801C1

SHAFT

2шт.

26

78802C1

CAGE

2шт.

27

394684R1

RING

snap

2шт.

28

78803C1

RACE

2шт.

29

17102R1

BALL,1 1/16" Dia

12шт.

30

78805C2

KNUCKLE JOINT

KNUCKLE steering, left

1шт.

31

78806C2

STEERING KNUCKLE

KNUCKLE steering, right

1шт.

32

1264631C1

BRACE

BUSHING steering knuckle housing

2шт.

33

503087C1

CYLINDER END CAP

CAP king pin

2шт.

34

78808C1

STUD

dowel

16шт.

9411648

LOCK NUT,1/2"-20, GC

NUT lock, 1/2-NF phc p/t type 8

16шт.

78809C1

SHIM

knuckle bearing, 0.005

3шт.

35

78810C1

SHIM

knuckle bearing, 0.010

3шт.

36

78811C1

ARM

steering

2шт.

37

78812C1

SPARE PART

PIN king

2шт.

38

503100R91

SOCKET ASSY vertical, Replaces 78813C1

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

FITTING lube, 1/8 ptf short 65D

2шт.

26577R1

NUT,Jam, 1 1/8"-12, G8

1-1/8-NF phc jam type 8, 1/8

1шт.

39

78814C1

RETAINER

spacer

2шт.

40

78815C1

RETAINER

hub oil, slinger

2шт.

41

78880C91

OIL SEAL

SEAL oil

2шт.

42

78816C1

SHAFT

spindle

2шт.

43

472988C1

BUSHING

spindle

2шт.

44

78817C1

STUD

dowel

24шт.

45

78818C1

WASHER

flat

24шт.

232-4617

LOCK NUT,7/16"-20, GC

NUT lock, 7/16-NF phc p/t type 8

24шт.

46

442671C1

OIL SEAL

SEAL oil

2шт.

47

572900R91

ROLLER BEARING,76.2mm ID x 23.01mm W

cone

2шт.

48

238661R91

CRANKSHAFT BEARING

BEARING cone

2шт.

49

78819C1

HUB

2шт.

50

572901R1

BEARING, CUP,121.4552 mm OD x 24.7091 mm

BEARING cup

2шт.

51

54538H

BEARING CUP

2шт.

52

78820C2

BOLT (SPREADER),3/4" - 16 x 2.6", Grade 8

BOLT wheel stud

10шт.

53

78821C1

STUD

dowel

24шт.

54

382536R1

NUT wheel

10шт.

390310C1

WASHER,Flat, 3/4" Bolt, 13/16" ID x 1 1/2" OD x 0.134", HDN, ZND

0.812 x 1.500 x 0.134 hdn

10шт.

55

1251800C1

NUT

lock

2шт.

56

1251801C1

GEAR WHEEL

GEAR planetary ring, 61T

2шт.

57

78825C1

BUSHING

flat spacer

2шт.

58

78826C1

GEAR WHEEL

GEAR sun

2шт.

59

78827C1

RING

retaining

2шт.

60

78828C1

FLANGE

planetary drive

2шт.

61

78829C1

PINION

GEAR planet

6шт.

62

78830C1

WASHER

planet gear

6шт.

63

78831C1

NEEDLE ROLLER,Needle, 3.17mm OD x 24.43mm L

PIN planet gear needle bearing

300шт.

64

78832C1

WASHER

planet gear

12шт.

65

78833C1

PIN

planet gear shaft

6шт.

553686R1

LOCK PIN,3/16" x 1 1/2", Slotted

Pin, 3/16" x 1 1/2", Slotted

6шт.

66

78834C1

AXLE PIN

PIN thrust washer

2шт.

67

445751

1/2-14 autom sq-soc-hd pipe

4шт.

68

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

PLUG, PIPE, Slotted, Headless, 1/8" NPT

2шт.

69

27632R1

LUBE NIPPLE,1/8"-27 NPT x .50" lg, Press Relief

FITTING drive flange relief

2шт.

70

78836C1

BUSHING

stud

24шт.

232-4617

LOCK NUT,7/16"-20, GC

NUT lock, 7/16-NF phc p/t type

24шт.

71

78837C1

STEM

ROD tie

1шт.

72

78838C1

PIN

stud adapter

8шт.

73

78839C1

STUD

dowel

6шт.

74

78840C1

STUD

dowel

4шт.

75

78841C1

PIN dowel, carrier mtg

4шт.

232-4617

LOCK NUT,7/16"-20, GC

NUT lock, 7/16-NF phc p/t type 8

10шт.
