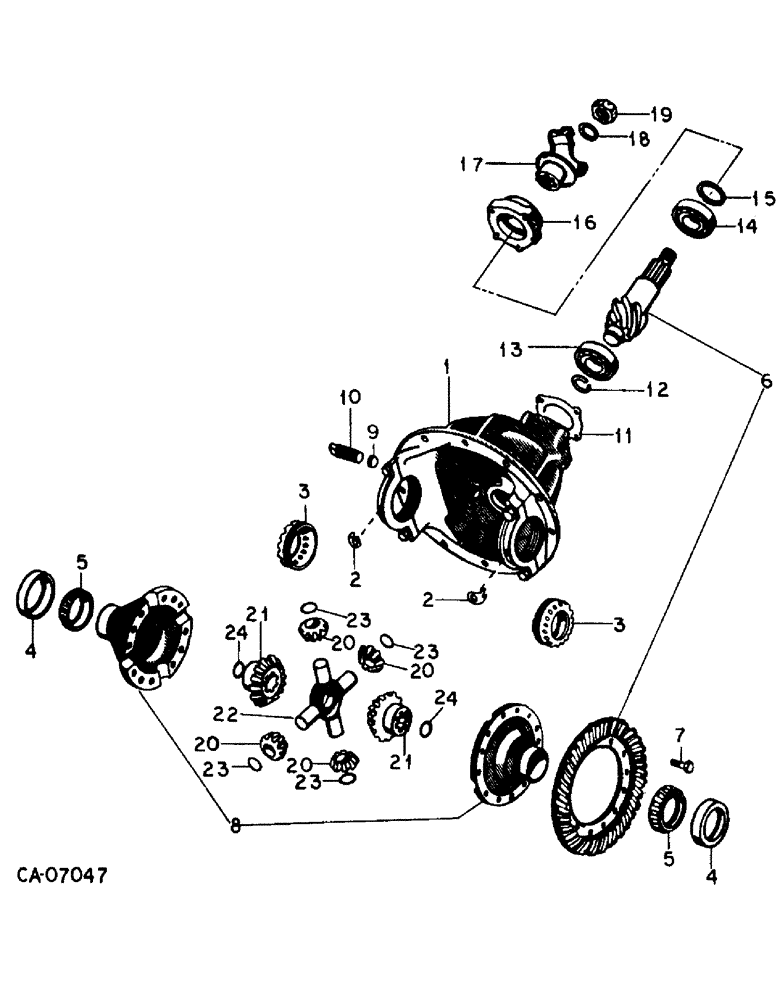

Запчасти Case IH 3488 (07-35) - DRIVE TRAIN, DIFFERENTIAL CARRIER, TRACTORS WITH ALL WHEEL DRIVE, WITH ONE PIECE DRIVE SHAFT (04) - Drive Train

1

78842C91

HOUSING

ASSY cap and carrier

1шт.

25340R1

BOLT,Hex, 5/8" - 11 x 3 1/4", Gr 8

5/8 x 3-1/4 phc type 8

4шт.

103331

WASHER,5/8"

5/8"

4шт.

78843C1

AXLE PIN

PIN dowel

4шт.

2

78844C1

CLIP

adjusting ring

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

179814

SPACER

5/16 x 5/8 pln type 5

2шт.

3

78845C1

RING

adjusting

2шт.

4

78847C1

BEARING ASSY,2.44" ID x 3.9372" OD x 0.9375"

diff cup

2шт.

5

78848C91

BEARING ASSY,61.98mm ID x 24.61mm W

diff cone

2шт.

6

78849C2

GEAR WHEEL

GEAR ASSY pinion and, Includes Ref. 18 and 19

1шт.

7

78850C1

BOLT (SPREADER)

BOLT

12шт.

103329

WASHER,1/2"

LOCK, 1/2"

12шт.

8

78851C1

CASE

ASSY diff

1шт.

9

78852C1

PLUG

thrust pad

1шт.

10

78853C1

SCREW,7/8" - 14 x 3 3/4"

thrust pad

1шт.

219754

BACK-UP RING

7/8-NF pln jam type 5

1шт.

11

78854C1

RETAINER

GASKET oil

1шт.

12

78855C1

RING

lock

1шт.

13

43615HB

BEARING ASSY,30 mm ID x 72 mm OD x 21 mm

SHAFT bearing pinion

1шт.

14

78856C91

BALL BEARING,1.9685" ID x 4.3307" OD x 1.875"

ball

1шт.

15

78882C91

OIL SEAL,63.45mm ID x 88.54mm OD x 11mm Thk

SEAL oil

1шт.

16

78857C1

RETAINER

bearing ring

1шт.

103331

WASHER,5/8"

5/8"

6шт.

24874R1

BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 8

6шт.

17

78858C1

FLANGE

ASSY companion

1шт.

18

78859C2

WASHER

flat

1шт.

19

78860C2

NUT

1шт.

20

78913C1

PINION

GEAR pinion

4шт.

21

78861C1

PINION

GEAR side, 14T

2шт.

22

78862C1

U-JOINT SPIDER

SPIDER

1шт.

23

78863C1

THRUST WASHER

diff pinion, thrust washer

4шт.

24

78877C1

THRUST WASHER

WASHER diff gear thrust

2шт.
