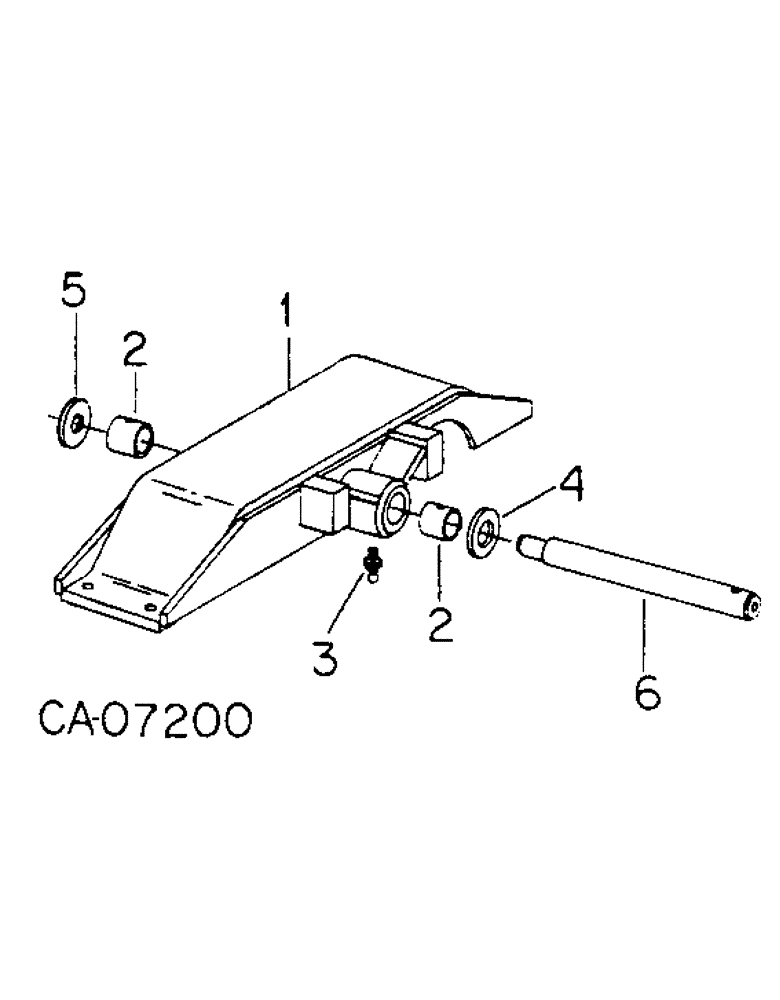

Запчасти Case IH 3488 (07-34) - DRIVE TRAIN, SADDLE ASSY., TRACTORS WITH ALL WHEEL DRIVE, WITH ONE PIECE DRIVE SHAFT (04) - Drive Train

1

1259667C1

SADDLE

axle mounting

1шт.

20523R1

BOLT,5/8" x 2 1/2", Gr 8

5/8-NF x 2-1/2" type 8

4шт.

144423H

LOCK NUT,5/8" - 18, GC

NUT, LOCK, 5/8"-18, GC

4шт.

2

1251734C1

BUSHING

2шт.

3

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING lub, 1/8" ptf. x/short

2шт.

4

1251735C1

WASHER

pivot tube, front spacer

1шт.

5

1251736C1

WASHER

pivot tube, rear spacer

1шт.

6

1251737C1

AXLE PIN

PIN pivot

1шт.

28431R1

HEADED PIN,3/8" x 6 1/8"

PIN, 3/8" x 6-1/8" hd. type 5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.
