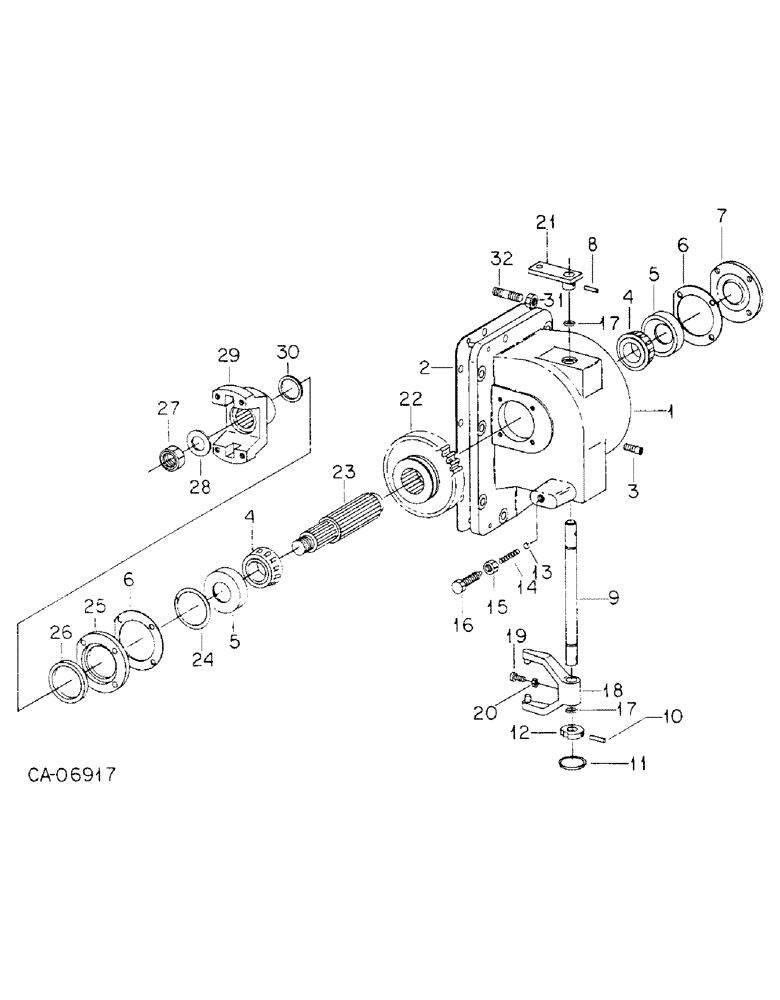

Запчасти Case IH 3488 (07-33) - DRIVE TRAIN, TRANSFER CASE, TRACTORS WITH ALL WHEEL DRIVE, WITH ONE PIECE DRIVE SHAFT (04) - Drive Train
№
Артикул
Название
Примечание
Количество
1
148717C1
HOUSING
transfer case, 32T
1шт.
208100H1
CAPSCREW,Flange, 1/2" x 1.25", Alloy Steel
SCREW, 1/2 x 1.25 pln type 8 12 pt flg
7шт.
20024R1
PIN
dowel, 3/8 x 1.000 pln hdn
2шт.
2
385757R2
GASKET
housing
1шт.
3
148731C1
SCREW,Csk, 1/2" - 13 x 1 1/4", Gr 8
special cap
1шт.
4
148723C91
ROLLER BEARING,1.3775" ID x 2.8351" OD x 0.6704"
cone
2шт.
5
148722C1
BEARING CUP,72.01mm OD x 14.29mm W
cup
2шт.
6
148720C1
GASKET
1шт.
7
148719C1
CAP
1шт.
179816
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
148769C1
COPPER WASHER
copper
4шт.
8
17175R1
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
1шт.
9
148803C1
SHAFT
shift
1шт.
10
553686R1
LOCK PIN,3/16" x 1 1/2", Slotted
Pin, 3/16" x 1 1/2", Slotted
1шт.
11
148809C1
PLUG
freeze
1шт.
12
148808C1
LOCK ASSY
LOCK shift
1шт.
13
17014R1
BALL
steel, 7/16
1шт.
14
148806C1
VALVE SPRING
SPRING detent
1шт.
15
114506
NUT
9/16-12 pln jam
1шт.
16
148807
BOLT adjustment
1шт.
17
3067183R1
O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro
7/16 ID x 3/32 class 6
2шт.
18
148805C1
FORK TEDDER
FORK shifter
1шт.
19
84983
SET SCREW,3/8" x 1"
SCREW set, 3/8-16 x 1
1шт.
20
21070R1
NUT,3/8"-16, G8
hex, 3/8-16 pln
1шт.
21
148804C1
LEVER
shift, 32T, case assy
1шт.
22
148718C1
GEAR WHEEL
GEAR, 32T
1шт.
23
148724C1
SHAFT
transfer case output
1шт.
24
148726C1
SHIM
0.005, (Or as required)
1шт.
24
1251600C1
SHIM
0.020, (Or as required)
1шт.
24
148725C1
SHIM
0.010, (Or as required)
1шт.
24
1251601C1
SHIM
0.030, (Or as required)
1шт.
25
148733C1
RETAINER
seal
1шт.
179818
BOLT,Hex, 5/16" - 18 x 1", Gr 5
4шт.
148769C1
COPPER WASHER
copper
4шт.
26
1251590C1
SEAL
SEAL
1шт.
27
148761C1
NUT
lock
1шт.
28
148760C1
WASHER
1шт.
29
148734C1
YOKE
end
1шт.
30
148759C1
SPACER
1шт.
31
114496
HOURMETER,Jam, 1/2"-20, G5
NUT, 1/2-NF pln jam type 58
1шт.
32
148802C1
STUD
1шт.
Выбрано товаров: 41
