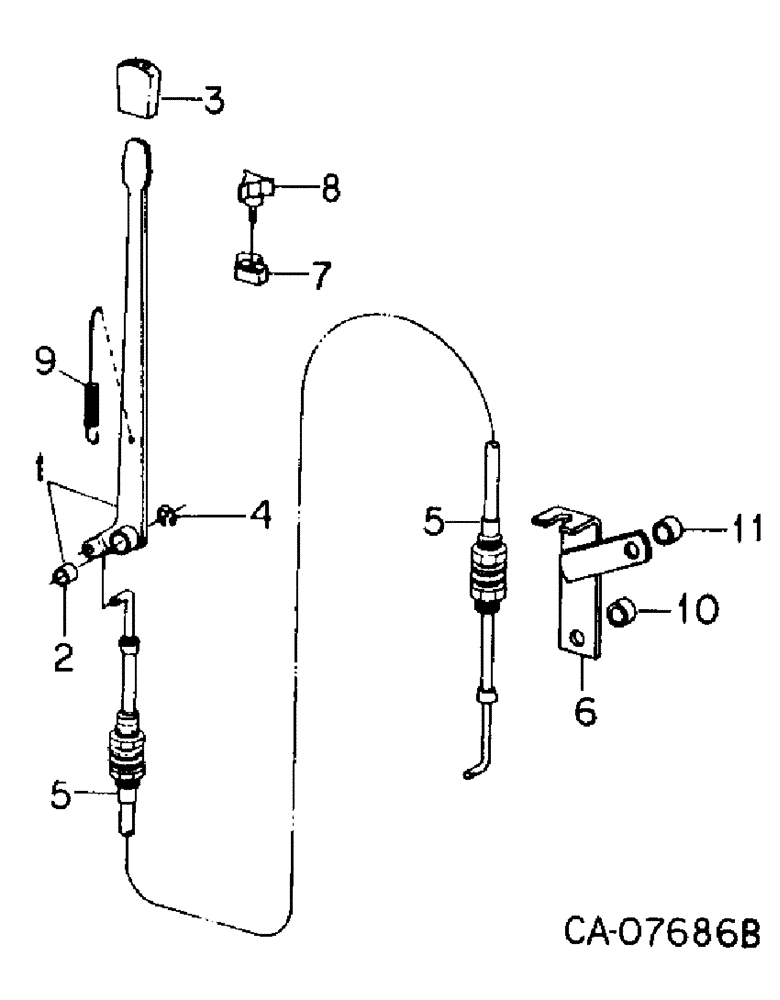

Запчасти Case IH 3488 (07-32) - DRIVE TRAIN, INDEPENDENT PTO CONTROLS (04) - Drive Train

1

1251588C3

HANDLE

ASSY IPTO control, Serial Range: -714

1шт.

1

1267374C91

HANDLE

ASSY IPTO control, Start Serial: 715

1шт.

2

143960C1

BUSHING

1шт.

3

1259760C1

BALL KNOB

KNOB, Serial Range: -714

1шт.

3

1267353C1

KNOB

, Start Serial: 715

1шт.

4

370290R1

SNAP RING,#50, .392" Dia, E-Type

Ring, Retaining, #50, .392" Dia, E-Type

1шт.

5

130566C1

CABLE

ASSY

1шт.

95-11028

WASHER,1/4"

0.281 x 0.625 x 0.051 pln

1шт.

432-48

COTTER PIN,1/16" x 1/2"

PIN cotter, 1/16 x 1/2 pln

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

6

1266533C1

SUPPORT

ASSY IPTO cable, Replaces 130563C1 & 1259817C1

1шт.

24877R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

1шт.

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

0.656 x 1.312 x 0.074

2шт.

24876R1

BOLT,Hex, 5/8" - 11 x 2 1/4", Gr 8

1шт.

7

120015C1

STOP

governor PTO overspeed, For tractors w/o tilt steering

1шт.

7

1252740C1

STOP

governor PTO overspeed, For tractors w/ tilt steering

1шт.

8

399023R2

KNOB

fluted

1шт.

16559R1

WASHER,1/4"

0.266 x 0.625 x 0.036

1шт.

9

1259809C2

SPRING

IPTO handle return

1шт.

10

627389R1

SPACER,16.7mm ID x 22.23mm OD x 22.2mm L

7/8 x 0.875 tube, For tractors w/o 3 point hitch

1шт.

11

575098R1

SPACER,16.7mm ID x 22.23mm OD x 15.9mm L

7/8 x 0.625 tube, For tractors w/o 3 point hitch

1шт.
