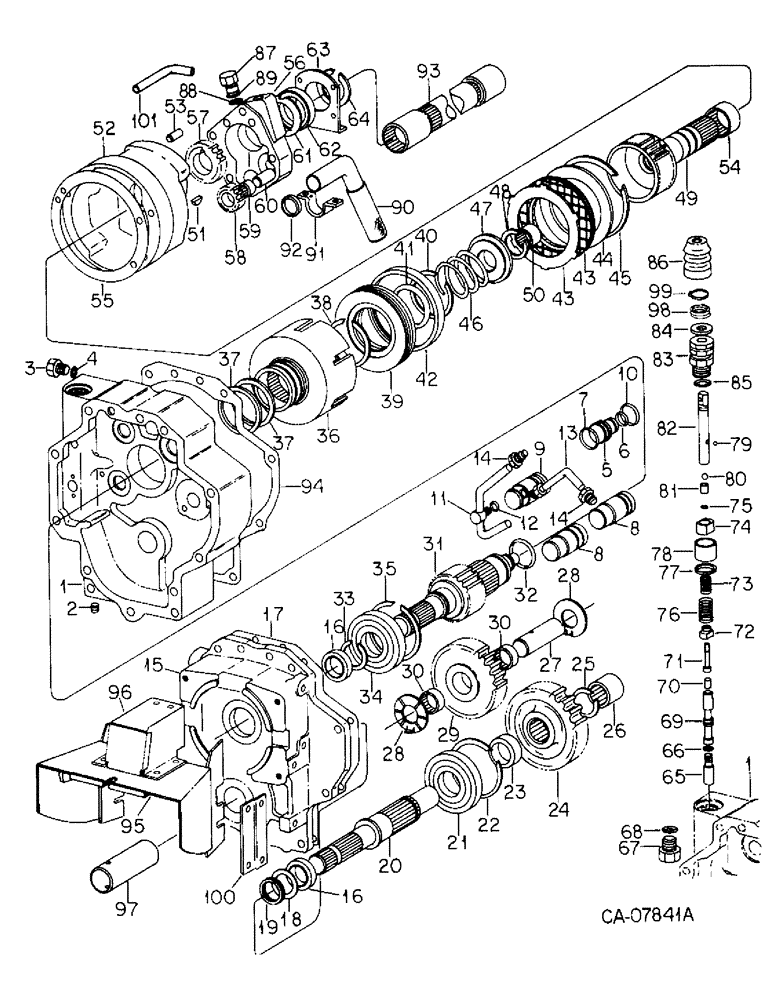

Запчасти Case IH 3488 (07-29) - DRIVE TRAIN, INDEPENDENT POWER TAKE OFF, DUAL SPEED (04) - Drive Train

1

69065C93

HOUSING

ASSY IPTO valve, Consists of Ref. 2 and 69 - 86

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

5шт.

2

444660

DRAIN PLUG,Sq Soc, 3/8"-18 NPTF

PLUG, 3/8-18 auto sq-soc-hd pipe

1шт.

3

9410355

PLUG,Hex Hd, 3/8"-24 ORB

gauge hole, 3/8-24 str thd o-rings boss

2шт.

4

359158R1

O-RING,0.301" ID x 0.07" Width

-011, 70 Duro, .031" ID x .070" Thk, Gauge hole plug

2шт.

5

67340C1

PISTON

ASSY anti-creep brake

3шт.

6

574069R1

O-RING,0.750" ID x .062"

brake piston rod, 3/4 x 7/8 x 1/16

3шт.

7

356005R1

O-RING,1.109" ID x 0.139" Width

brake piston, 1-1/8 x 1-3/8 x 1/8

3шт.

8

68074C1

CYLINDER

anti-creep brake

2шт.

9

68073C1

CYLINDER

anti-creep brake

1шт.

10

22458R1

O-RING,1.489" ID x 1.629" OD x 0.07"

brake cylinder, 1-1/2 x 1-5/8 x 1/16

3шт.

11

68075C1

TUBE

ASSY brake supply

1шт.

12

352219R1

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

brake supply connector, 1/4 x 3/8 x 1/16

1шт.

13

68077C1

TUBE

brake supply

1шт.

14

222-502

TUBE NUT,7/16"-24

FITTING brake supply, hi-duty, 1/4 tube

4шт.

15

64785C92

COVER

IPTO, w/ product graphic

1шт.

19846R1

DOWEL,1/2" x 1 1/4"

PIN dowel, 1/2 x 1.250 pln hdn

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

70129R1

PLUG,Cup, 2"

cored hole

1шт.

187201

BOLT,Hex, 1/2" - 13 x 4 3/4", Gr 5

1/2 x 4-3/4 pln type 5

8шт.

64553C2

PRODUCT GRAPHIC

GRAPHIC product, caution

1шт.

16

381480R91

OIL SEAL

oil, output shaft

2шт.

17

381481R1

GASKET

IPTO housing cover

1шт.

18

393211R1

SHIELD

IPTO shaft seal

1шт.

19

398739R1

RING

external retaining

1шт.

20

393111R2

SHAFT

IPTO, 540 RPM output

1шт.

21

ST293

BALL BEARING,45mm ID x 100mm OD x 25mm W

BEARING IPTO, 540 RPM output shaft, rear

1шт.

22

357201R1

RING

retaining, bearing, IPTO, 540 RPM shaft, rear

1шт.

23

381505R1

SPACER,44.7mm ID x 57.15mm OD x 16.76mm L

IPTO, 540 RPM output shaft

1шт.

24

381506R1

GEAR

driven, IPTO

1шт.

25

359894R1

RING, SNAP

RING snap, IPTO, driven gear

1шт.

26

576539R91

NEEDLE BEARING

needle, 540 RPM output shaft, front

1шт.

27

381507R1

SHAFT,31.74mm OD x 98.81mm L

idler, IPTO

1шт.

28

381508R1

THRUST WASHER,32.26mm ID x 57.15mm OD x 2.39mm Thk

thrust, idler gear, IPTO

2шт.

29

381509R1

GEAR

idler, IPTO

1шт.

30

287057R91

BEARING, NEEDLE

BEARING idler gear, IPTO

2шт.

31

120985C1

SHAFT

IPTO, 1000 RPM output

1шт.

32

364145R1

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

IPTO, 2-1/8 x 2-5/16 x 3/32, 1000 RPM output shaft

2шт.

33

359894R1

RING, SNAP

RING, 1000 RPM output shaft, rear

1шт.

34

381483R91

ROLLER BEARING,1.7717" ID x 3.337" OD x 0.9843"

1000 RPM output shaft, rear

1шт.

35

357201R1

RING

snap, bearing, 1000 RPM shaft, rear

1шт.

36

381484R2

CUP

clutch

1шт.

37

381485R1

RING,67.13mm ID x 72.21mm OD x 3.12mm Thk

clutch cup

2шт.

38

68625C1

RING

snap, clutch cup

1шт.

39

68080C2

PISTON

clutch

1шт.

40

258400C1

SNAP RING,#187, Ext

Ring, Snap, , clutch piston stop #187, Ext

1шт.

41

702283R1

O-RING,0.21" Thk x 1.85" ID, -328, Cl 5, 75 Duro

clutch piston, 1-7/8 x 2-1/4 x 3/16

1шт.

42

381488R1

RING,120.78mm ID x 134.34mm OD x 4.78mm Thk

SEAL oil, clutch piston

1шт.

43

68803C92

KIT

PACKAGE, IPTO clutch plate and disc, Consists of

1шт.

NSS

NOT SOLD SEPARAT

DISC driven

9шт.

NSS

NOT SOLD SEPARAT

CLUTCH plate

7шт.

44

381491R1

RETAINER

clutch drive disc

1шт.

45

381492R1

CIRCLIP,M137.16 x 3.07mm Thk, Int

RING sanp, clutch driven disc

1шт.

46

381493R1

SPRING

clutch release

1шт.

47

381494R1

RETAINER

clutch release spring

1шт.

48

370504R1

RING

snap, clutch release spring

1шт.

49

68081C2

SHAFT

drive

1шт.

50

10026R

NEEDLE BEARING,0.875" ID x 1.1245" OD x 0.5"

BEARING, 1000 RPM drive shaft, front

1шт.

51

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

Drive shaft #5, 1/8" x 5/8", HT

1шт.

52

68082C1

NO LONGER SERVICED

CARRIER ASSY IPTO clutch w/ cast lube tube

1шт.

52

148474C92

CARRIER

ASSY IPTO clutch w/ loose lube tube

1шт.

27907R1

CAPSCREW,Flange, 3/8" x 2.50", Alloy Steel

SCREW, 3/8 x 2.500 pln ast 12 pt flg

4шт.

53

19879R1

SPLIT PIN/SAFETY PIN

PIN dowel, 5/16 x 3/4

2шт.

27907R1

CAPSCREW,Flange, 3/8" x 2.50", Alloy Steel

SCREW, 3/8 x 2.5 pln type 8 12 pt flg

4шт.

54

359950R91

NEEDLE BEARING

BEARING drive shaft rear

1шт.

55

529565R1

GASKET

IPTO clutch carrier

1шт.

56

67330C1

HOUSING

pump, Used w/ carrier 68082C1

1шт.

56

148475C1

HOUSING

pump, Used w/ carrier 148474C92

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

4шт.

57

381499R1

PINION

GEAR pump driver

1шт.

58

381500R1

PINION

GEAR pump idler

1шт.

59

381501R91

NEEDLE BEARING

needle, pump idler gear

1шт.

60

381502R1

SHAFT

pump idler gear

1шт.

61

68084C1

BAFFLE

drive shaft, front

1шт.

62

ST571

BALL BEARING,40 mm ID x 68 mm OD x 15 mm

BEARING drive shaft, front

1шт.

63

381503R1

RETAINER

drive shaft, front brg

1шт.

179793

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5, Full Thd

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

64

555570R1

SNAP RING

RING snap, drive shaft, front bearing

2шт.

65

68085C1

PLUG

IPTO valve

1шт.

66

355967R1

O-RING,0.364" ID x 0.003" Width

IPTO plug, 3/8 x 1/2 x 1/16

1шт.

67

9410360

PLUG

7/8-14 str thd o-ring boss

1шт.

68

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

69

70808C1

SPOOL

IPTO valve, Code A

1шт.

69

70809C1

SPOOL

IPTO valve, Code B

1шт.

69

70810C1

SPOOL

IPTO valve, Code C

1шт.

70

26622R1

DOWEL,5/16" x 3/8"

PIN dowel, 5/16 x 3/8 hardened

1шт.

71

70331C1

ROD

ball actuating

1шт.

72

70807C1

RETAINER

ball actuating rod

1шт.

73

68089C1

SPRING

IPTO regulator

1шт.

74

68090C1

RETAINER

ball actuating, rod stem end

1шт.

75

268552R1

SNAP RING,#18, .145" Dia, E-Type

Ring, Retaining, #18, .145" Dia, E-Type

1шт.

76

68092C1

SPRING

engagement

1шт.

77

68093C1

SPRING WASHER

engagement spring

1шт.

78

68094C1

SPACER

engagement

1шт.

79

17008R1

BALL,1/4" Dia

Chrome-Steel 1/4" Dia

3шт.

80

17012R1

BALL,3/8" Dia

1шт.

81

20031R1

DOWEL,3/8" x 5/8"

PISTON ball actuating

1шт.

82

68095C1

STEM

control valve, Replaces 68095R1

1шт.

83

68096R1

BODY ASSY IPTO detent

1шт.

84

68097C1

SEAL

stem

1шт.

85

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

7/8 OD tube

1шт.

86

68110C2

BOOT

IPTO valve dust

1шт.

87

69040C92

VALVE

ASSY regulator, Consists of

1шт.

NSS

NOT SOLD SEPARAT

BODY

1шт.

NSS

NOT SOLD SEPARAT

POPPET

1шт.

NSS

NOT SOLD SEPARAT

SPRING

1шт.

NSS

NOT SOLD SEPARAT

SCREW adj

1шт.

NSS

NOT SOLD SEPARAT

PIN

1шт.

69042C2

STRAINER ELEMENT

STRAINER

1шт.

88

392382R1

O-RING,0.551" ID x 0.07" Width

9/16 x 11/16 x 1/16

1шт.

89

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube

1шт.

90

395120R1

TUBE

ASSEMLY suction

1шт.

91

381525R1

SUPPORT TUBE,2.8" Length

SUPPORT suction tube

1шт.

179795

TILLAGE BLADE

1/4 x 3/4 pln type 5

2шт.

109084

NUT,1/4"-20, G5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

92

381526R1

SEAL,25.3mm ID x 36.2mm OD x 4.78mm Thk

suction tube

1шт.

93

120988C1

SHAFT

ASSY PTO extension

1шт.

94

381467R1

GASKET

PTO housing

1шт.

95

1264503C1

SHIELD

ASSY IPTO

1шт.

120394

WASHER,3/8", SAE

WASHER, 0.406 x 0.812 x 0.051

4шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

4шт.

96

1264520C1

COVER

ASSY IPTO shield

1шт.

120394

WASHER,3/8", SAE

WASHER, 0.406 x 0.812 x 0.051

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

97

393116R1

TUBE

IPTO shaft protection

1шт.

98

1252025C1

SPRING

actuator return

1шт.

608701R1

WASHER

0.656 x 1.250 x 0.054

1шт.

350515R1

WASHER

0.656 x 1.000 x 0.054 pln

1шт.

99

267805R1

RING

external retaining, 0.579

1шт.

100

393115R11

EXTENSION

ASSY IPTO safety shield

2шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

4шт.

101

148451C2

TUBE,0.035" OD, 115, 48 mm Length

IPTO lube, Used w/carrier 148474C92

1шт.

222-503

TUBE NUT,1/2"-20

NUT, 5/16 tube

2шт.

77720C92

STRIPPER PACKAGE

PACKAGE seal and gasket, Consists of Ref. 4, 6, 7, 10, 12, 16, 17, 32, 37, 41, 42, 51, 55, 66, 68, 84, 85, 86, 88, 92 and 94

1шт.
