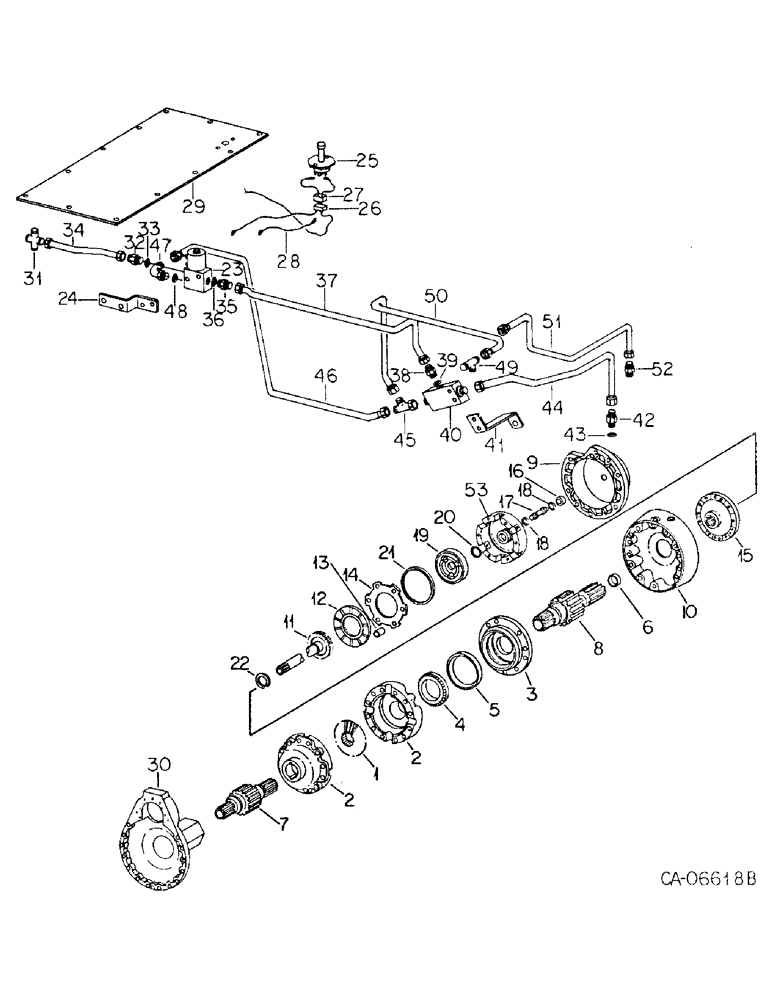

Запчасти Case IH 3488 (07-27) - DRIVE TRAIN, DIFFERENTIAL LOCK ATTACHMENT (04) - Drive Train

1

529022R2

GEAR

differential bevel, right, 28T

1шт.

2

534524R92

CASE

differential, w/ speedometer gear

1шт.

406021R1

GEAR speedometer drive, 39T

1шт.

3

68684C1

RETAINER

differential bearing, right

1шт.

4

ST2104

BEARING ASSY

roller cone, right

1шт.

5

ST986

TAPERED BEARING,133.35mm OD x 22.28mm W

BEARING roller cup, right

1шт.

6

283375R91

NEEDLE BEARING

ASSY needle

1шт.

7

104704C1

SHAFT

bull pinion and brake, left

1шт.

8

104702C1

SHAFT

bull pinion and brake, right

1шт.

9

104667C1

COVER

diff lock

1шт.

10

104668C2

HOUSING

brake diff lock end

1шт.

104706C1

BOLT

BOLT diff lock cover

4шт.

413-1064

BOLT,Hex, 5/8" - 11 x 4", Gr 5

5/8 x 4 pln type 5, Course Threads

2шт.

11

104669C1

SHAFT

inner

1шт.

12

71914C92

PACKAGE

diff lock service, Also furnish tube of loctite, Consists of

1шт.

NSS

NOT SOLD SEPARAT

DISC clutch driven

6шт.

NSS

NOT SOLD SEPARAT

PLATE clutch drive

7шт.

350818R1

O-RING,0.984" ID x 0.139" Width

clutch piston, inner

1шт.

22412R1

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

-248, 70 Duro, 4.734" ID x .139" Thk, clutch piston, outer

1шт.

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32

2шт.

104673C1

THRUST WASHER

thrust

1шт.

13

104670C1

BUSHING

diff lock stop, spacer

3шт.

14

104705C1

PLATE

diff lock clutch primary

1шт.

15

104671C91

HOUSING

ASSY piston, Consists of

1шт.

NSS

NOT SOLD SEPARAT

CARRIER

1шт.

NSS

NOT SOLD SEPARAT

HOUSING Ref. 53

1шт.

20040R1

DOWEL,1/4" x 3/4"

PIN

2шт.

9409954

PLUG,Hex Soc, 1/16"-27

1шт.

179806

BOLT,Hex, 1/4" - 20 x 2 1/4", Gr 5

1/4 x 2-1/4 pln type 5

6шт.

16

104673C1

THRUST WASHER

thrust

1шт.

17

104714C1

SPOOL

diff lock feed

1шт.

18

355966R1

O-RING,0.424" ID x 0.103" Width

7/16 x 5/8 x 3/32

2шт.

19

104674C1

PISTON

diff lock

1шт.

20

350818C1

O-RING, 1 x 1-1/4 x 1/8

1шт.

21

22412R1

O-RING,0.139" Thk x 4.734" ID, -248, Cl 5, 75 Duro

-248, 70 Duro, 4.734" ID x .139" Thk

1шт.

22

269916R1

SNAP RING,#212, Ext

Ring, Snap, #212, Ext

1шт.

23

VALVE ASSY block and solenoid, For list of components refer to block and solenoid valve, group 10

1шт.

24

139005C2

BRACKET

ASSY diff lock solenoid

1шт.

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

2шт.

26309R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8

3/8 x 3/4 phc p/t type 8

2шт.

25

131332C2

IGNITION SWITCH

SWITCH ASSY diff lock actuating

1шт.

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

1/4 x 5/8 type 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

26

139153C1

CABLE

ASSY diff lock, Serial Range: switch-solenoid

1шт.

27

139137C1

CABLE

ASSY diff lock switch junction

1шт.

399470R1

BOOT

INSULATOR terminal cover boot

2шт.

28

138842C1

CABLE

ASSY diff lock to solenoid grd

1шт.

29

PLATE sub-frame platform, Refers to operators platform listing, group 13

1шт.

30

CARRIER rear axle, right, Refer to rear drive axle this group

1шт.

444746

PLUG,Sq Hd, 1/2"-14 NPTF

filler and drain, 1/2-14 pln sq/hd

1шт.

31

76355

TEE,9/16" - 18 JIC x 9/16" - 18 JIC x 9/16" - 18 JIC

3/8 tube 37 deg, hyd flared, For tractors w/o hydraulic seat attachment

1шт.

31

9403176

4 WAY CONNECTION,9/16"-18, 37 Degree

CROSS, 3/8 C-Z hyd flared tube, For tractors w/ hydraulic seat attachment

1шт.

32

9410202

HYD CONNECTOR,9/16"-18, 37 Degree x 9/16"-18, O-Ring

CONNECTOR, 3/8 C-Z hyd fld short swivel

1шт.

33

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

34

139009C1

TUBE

ASSY diff lock valve supply

1шт.

35

157519C1

HYD CONNECTOR,7/16"-20, 37 Degree x 9/16"-18, O-Ring

REDUCER, 1/4 x 3/8 37 deg hyd flared tube

1шт.

36

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

37

139012C2

HYD TUBE

TUBE ASSY diff valve to reducing valve

1шт.

38

9410200

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

CONNECTOR, 1/4 C-Z hyd fld short swivel

1шт.

40

534750R92

VALVE

ASSY pressure reducing, Refer to pressure reducing valve, group 10 for list of components

1шт.

179812

GEAR

5/16 x 1/2 pln type 5

2шт.

41

104592C2

SUPPORT

reducing valve mtg

1шт.

42

9210200

CONNECTOR, 1/4 C-Z hyd fld short swivel

1шт.

44

104767C1

HYD TUBE

TUBE ASSY diff lock pressure

1шт.

45

9410332

TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run

3/8 C-Z hyd fld tube swivel

1шт.

46

139010C1

HYD TUBE

TUBE ASSY reducing valve to diff valve

1шт.

47

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

90 Deg, 3/8 C-Z hyd fld adj

1шт.

48

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube

1шт.

49

120286C1

TEE

1шт.

50

104768C1

HYD TUBE

TUBE ASSY diff lock dump

1шт.

51

120245C1

HYD TUBE

TUBE ASSY brake lube, right

1шт.

52

120333C2

CONNECTOR, ELEC

CONNECTOR brake orifice

1шт.

53

HOUSING, Serviced as part of Ref.15

1шт.

474517C2

GASKET

TUBE gasket eliminator, loctite

1шт.

39

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.

43

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube

1шт.
