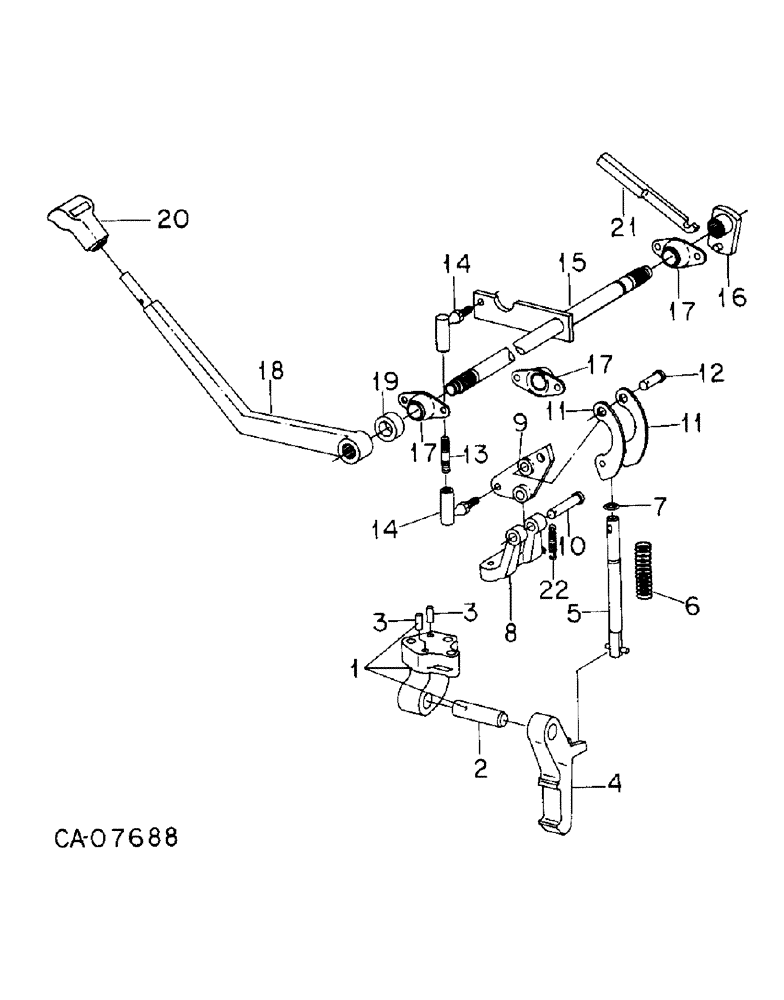

Запчасти Case IH 3488 (07-23) - DRIVE TRAIN, PARK LOCK BRAKE (04) - Drive Train

1

384055R12

BRACKET

ASSY parking lock lever

1шт.

364257R1

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 8

1/2 x 1-3/4 pln type 8

3шт.

2

120749C1

PIN,19.05mm OD x 58.42mm L

park lock lever

1шт.

3

20024R1

PIN

dowel, 3/8 x 1

2шт.

4

139141C1

LEVER

parking lock

1шт.

5

71921R91

SHAFT ASSY parking lock actuating

1шт.

19967R1

DOWEL,1/4" x 1 1/4"

PIN dowel, 1/4 x 1.250 pln hdn

2шт.

6

139130C1

SPRING

park lock

1шт.

7

382997R1

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

parking lock actuating shaft, 1/2 x 5/8 x 1/16

1шт.

8

1252767C2

BRACKET

park interlock

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 x 1-1/4 pln type 5

2шт.

9

1252768C3

LEVER

park lock, bellcrank

1шт.

179827

FRONT AXLE

1шт.

10

1252788C1

PIN

clevis, 10 x 70 hd

1шт.

30282R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 MM

1шт.

934792R1

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 MM pln

1шт.

11

1252769C2

LINK

2шт.

12

1252789C1

PIN

10 x 35 clevis

1шт.

30282R1

WASHER,M10 x 20 x 2

10.8 x 21 x 2 MM

1шт.

934792R1

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 MM pln

1шт.

26114R1

CLEVIS PIN,1/4" x 1.219"

PIN clevis, 1/4 x 1.250

1шт.

934948R1

WASHER,M6

6.4 x 12.5 x 1.6 MM

1шт.

932766R1

COTTER PIN,M2 x 12

PIN cotter, 2 x 12 MM pln

1шт.

13

177075H1

ROD

park lock operating

1шт.

14

158397H1

BALL JOINT

JOINT ball, 3/8 C-Z type A

2шт.

144419H

LOCK NUT,3/8"-24, GB

NUT lock, 3/8-NF cad p/t type 5

2шт.

118625

NUT

3/8-NF phc jam type 5

2шт.

15

1252770C2

SHAFT

ASSY park interlock

1шт.

16

1252773C92

ARM

ASSY park interlock, hub

1шт.

30324R1

DOWEL,M8 x 20

PIN dowel, 8 x 20 MM pln hdn

1шт.

17

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING ASSY flange mtg

3шт.

930108R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd

M8 x 20 pln class 8.8

6шт.

30167R1

NUT,M8, Cl 10

M8 phc class 10

6шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

6шт.

384098R1

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

23090R1

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

18

1252776C2

HANDLE

park lock

1шт.

19

1252777C1

SPACER

handle, sleeve

1шт.

178375R1

WASHER

0.781 x 1.250 x 0.054

4шт.

384098R1

SNAP RING,#62, Ext

Ring, Snap, #62, Ext

1шт.

20

1253019C2

KNOB

park lock

1шт.

18518R1

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

21

1252781C1

SUPPORT

park interlock, bar

1шт.

22

NOT USED THIS APPLICATION

1шт.
