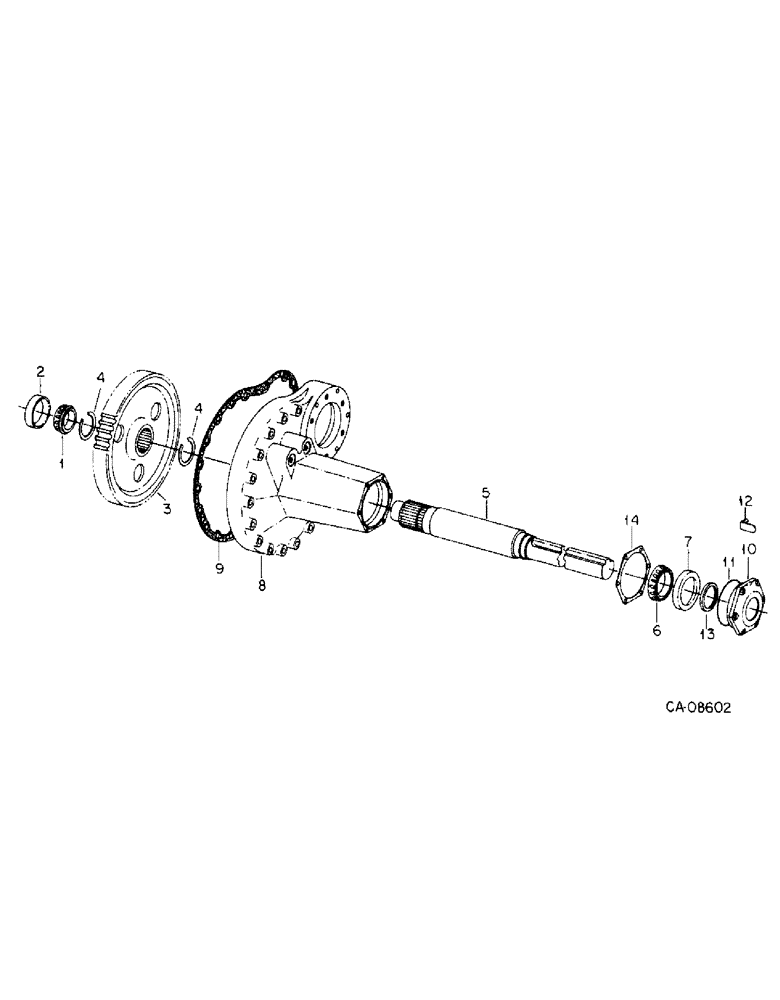

Запчасти Case IH 3488 (07-21) - DRIVE TRAIN, REAR DRIVE AXLE (04) - Drive Train

1

ST2110

ROLLER BEARING,66.67mm ID x 38.35mm W

BEARING ASSY rear axle, inner cone

2шт.

2

ST985

CUP

BEARING rear axle, inner cup

2шт.

3

384075R1

GEAR

bull, 73T

2шт.

4

380220R1

SNAP RING,#362, 3.423, Ext

RING snap, bull gear

4шт.

5

535664R2

AXLE

rear, 100 in.

2шт.

5

535662R1

AXLE

wide tread, rear, 118 in.

2шт.

6

ST2040

TAPERED BEARING,3.375" ID x 5.376" OD x 1.2015"

BEARING ASSY rear axle, outer cone

2шт.

7

ST897

BEARING CUP,122.24mm OD x 29.72mm W

BEARING rear axle, outer cup

2шт.

8

143528C1

CARRIER

rear axle

2шт.

NLS

NO LONGER SERVICED

5/8 x 3-1/2 pln type 5

20шт.

271571

SEALING RING COLLAR

BOLT, 5/8 x 4-1/4 pln type 5

16шт.

9

380225R2

GASKET

rear axle carrier

2шт.

10

530033R2

CAP

rear axle carrier

2шт.

11

529133R1

RING

sealing, rear axle carrier cap

2шт.

12

392346R1

BRACKET

rear wheel, inner position cage

2шт.

179842

SPACER

BOLT, 3/8 x 1-3/8 pln type 5

12шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

12шт.

13

535667R91

OIL SEAL

oil, rear axle carrier cap

2шт.

14

385158R2

SHIM

rear axle carrier cap, 0.003

1шт.

14

380230R2

SHIM

rear axle carrier cap, 0.004

1шт.

14

380227R2

SHIM

rear axle carrier cap, 0.007

6шт.

14

380228R2

SHIM

rear axle carrier cap, 0.012, (Or as required)

4шт.

14

380229R2

SHIM

rear axle carrier cap, 0.030

1шт.
