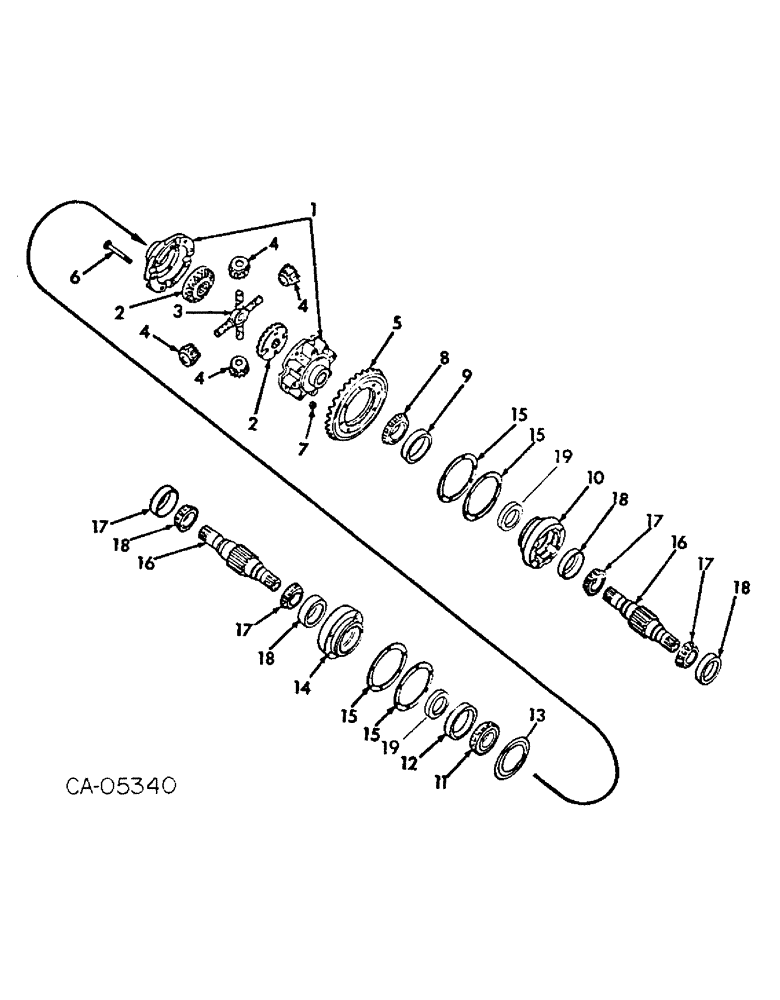

Запчасти Case IH 3488 (07-20) - DRIVE TRAIN, DIFFERENTIAL (04) - Drive Train

1

380187R92

CASE

differential, w/ speed gear

1шт.

160536

SCREW,Cross Pan Hd, 1/4" - 20 x 5/8"

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

406021R1

GEAR speedometer drive, 39T

1шт.

2

380190R2

GEAR

differential bevel, 28T

2шт.

3

393637R2

DIFF. SPIDER

SPIDER differential

1шт.

4

361061R3

PINION

differential bevel, 15T

4шт.

5

GEAR bevel, Not serviced separately, Order package 120265C91

1шт.

6

55972DA

BOLT,1/2" - 20 x 4 1/2"

differential case

12шт.

7

381368R1

NUT,Hex, 1/2" - 20, Gr 8

case bolt

12шт.

8

ST2133

BEARING ASSY,3.0625" ID x 4.625" OD x 1"

cone, differential, right

1шт.

9

ST990

TAPERED BEARING,3.0625" ID x 4.625" OD x 1"

BEARING cone, differential, right

1шт.

10

400900R1

RETAINER

differential bearing, right

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

11

ST2129

BEARING ASSY,77.79mm ID x 23.01mm W

cone, differential, left

1шт.

12

ST988

BEARING CUP,121.44mm OD x 17.46mm W

differential, left

1шт.

13

68672C1

BAFFLE

oil, differential bearing, left

1шт.

14

406023R1

RETAINER

differential bearing, left

1шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

6шт.

15

380202R1

SHIM

differential brg retainer, 0.007, (Or as required)

2шт.

15

380203R1

SHIM

differential brg retainer, 0.012, (Or as required)

4шт.

15

380204R1

SHIM

differential brg retainer, 0.030, (Or as required)

1шт.

15

380205R1

SHIM

differential brg retainer, 0.004, (Or as required)

1шт.

15

385155R1

SHIM

differential brg retainer, 0.003, (Or as required)

1шт.

16

104701C1

SHAFT

bull pinion and brake

2шт.

17

ST2007A

TAPERED BEARING,2.625" ID x 4.4375" OD x 1.1875"

BEARING ASSY bull pinion and brake

4шт.

18

13363D

TAPERED BEARING

BEARING bull pinion and brake shaft

4шт.

19

380200R92

OIL SEAL

oil, differential bearing retainer

1шт.

120265R91

PACKAGE bevel gear and pinion, Consists of

1шт.

NSS

NOT SOLD SEPARAT

SHAFT, 13T

1шт.

NSS

NOT SOLD SEPARAT

GEAR bevel, 51T

1шт.

380283R2

SHIM

1шт.

380284R2

SHIM

2шт.

135770C2

RETAINER

1шт.

528684R91

BEARING ASSY,63.5mm ID x 133.4mm OD x 70.48mm W

1шт.

359081R1

WASHER,38.89mm ID x 61.91mm OD x 1.52mm Thk

1шт.

359082R2

NUT

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.
