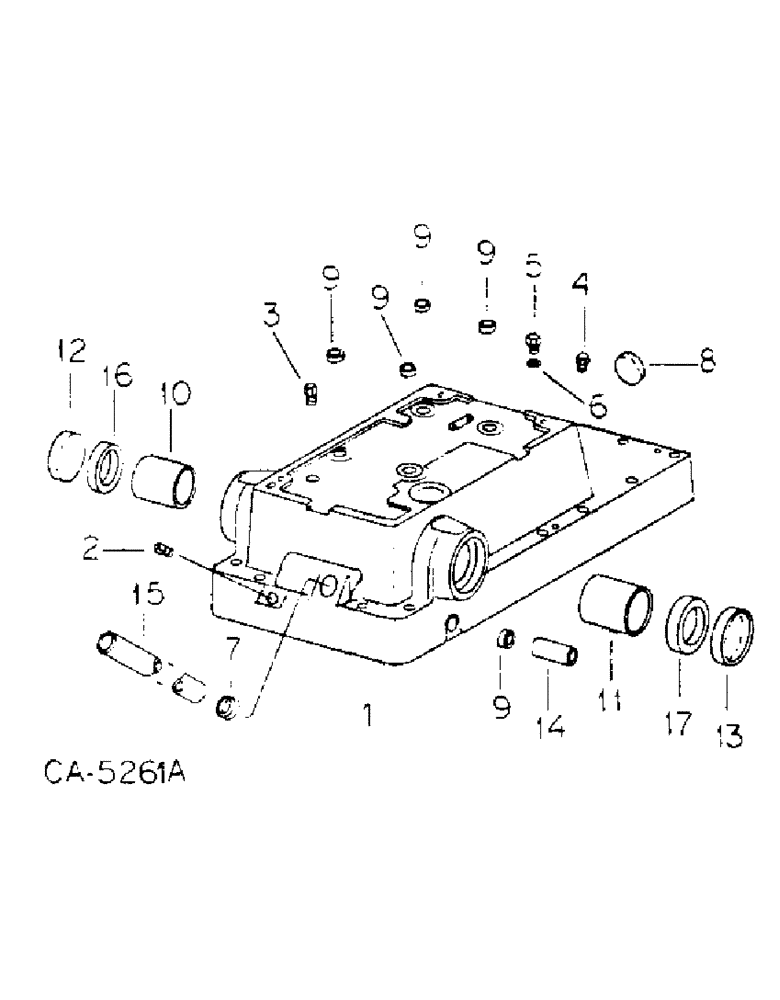

Запчасти Case IH 3488 (07-17) - DRIVE TRAIN, REAR FRAME COVER (04) - Drive Train

1272206R91

COVER ASSY rear frame, Consists of Ref. 1 - 15, Replaces 1259630C91 by also ordering o-ring 381885R1 and bolt 28253R1

1шт.

1

COVER rear frame w/ tubes, Not serviced separately, Order cover assy 1272206R91

1шт.

2

9617020

PLUG,1/4" - 18 x 0.48"

1/4-18 auto Hex Socket

1шт.

3

444691

PLUG

1/4-18 auto hex-socket pipe

1шт.

4

444697

PLUG,Hex Soc, 3/8"-18

3/8-18 auto hex-socket pipe

1шт.

5

9410357

PLUG

1/2-20 st-thrd o-ring boss

1шт.

7

104731C1

PLUG

filler neck opening cup

1шт.

8

343828R1

PLUG,Cup, 1 13/16"

speedometer drive opening, 1-13/16 cup

1шт.

9

380263R1

PLUG

cup, hydraulic port opening

5шт.

10

382774R2

BUSHING,70.78mm ID x 76.2mm OD x 80.26mm L

BEARING rockshaft, left

1шт.

11

382775R2

BUSHING,76.85mm ID x 81.28mm OD x 80.26mm L

BEARING rockshaft, right

1шт.

12

380174R1

PLUG,Cup, 3.510"

Rockshaft opening, left, tractor w/o draft control, 3-1/2 cup Cup, 3.510"

1шт.

13

380173R1

PLUG,Cup, 3.762"

Rockshaft opening RH, tractor w/o draft control Cup, 3.762"

1шт.

14

382798R1

BUSHING

eccentric shaft position opening

1шт.

15

104051C1

TUBE,1.03" ID, 1.187" OD, 8" Length

oil filter

1шт.

16

382776R92

SEAL rockshaft oil, left, tractor w/ draft control

1шт.

17

382778R91

OIL SEAL

rockshaft oil, right, tractor w/ draft control

1шт.

6

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

1шт.
