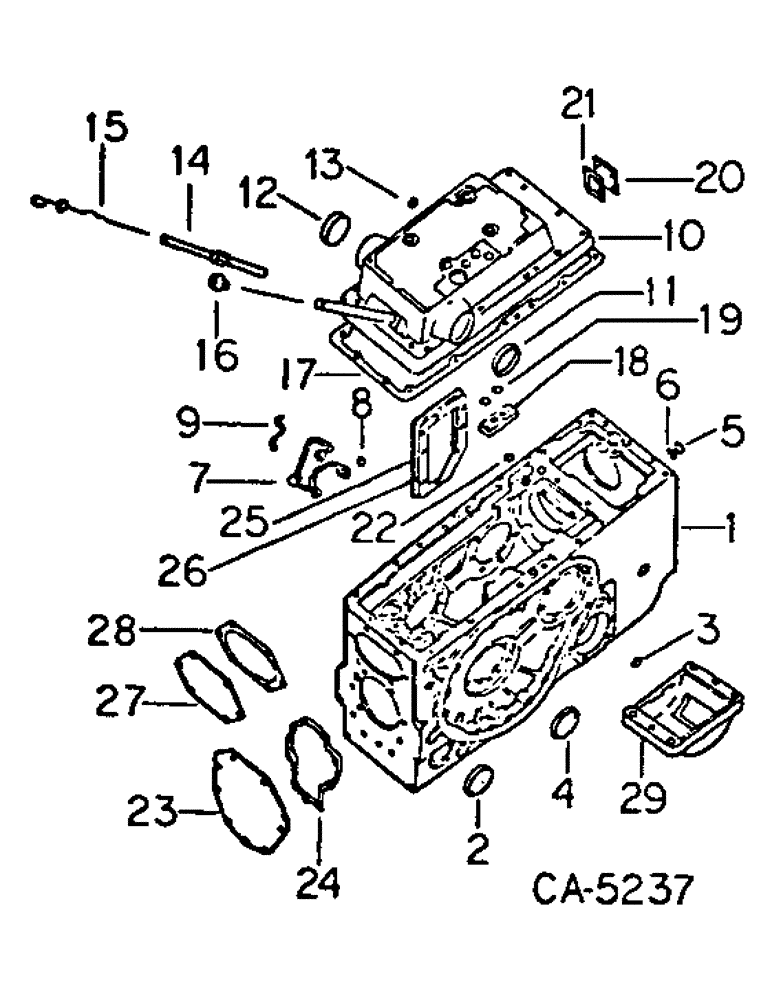

Запчасти Case IH 3488 (07-16) - DRIVE TRAIN, REAR FRAME AND COVERS (04) - Drive Train

1

127910C91

FRAME

ASSY rear, Consists of

1шт.

NSS

NOT SOLD SEPARAT

FRAME w/ tubes

1шт.

NSS

NOT SOLD SEPARAT

PIN

7шт.

NSS

NOT SOLD SEPARAT

BUSHING

1шт.

383331R1

PLUG,Cup, 4.26"

2шт.

444788

DRAIN PLUG,Sq Soc, 1/2"-14 NPTF

PLUG or

2шт.

FO445751

PLUG

2шт.

9409948

PLUG,Sq Soc, 3/4"-14 NPTF

or

1шт.

9909949

PLUG

1шт.

537545R92

SEAL

1шт.

172574

PLUG,Exp, 1 1/2"

1шт.

172558

PLUG,Exp, 1 1/4"

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

447888

PLUG auto drain, 1/2-14 pln sq/skt

2шт.

9409948

PLUG,Sq Soc, 3/4"-14 NPTF

3/4-14 auto sq-soc pipe

1шт.

2

383331R1

PLUG,Cup, 4.26"

torsion bar cup

2шт.

3

172574

PLUG,Exp, 1 1/2"

1-1/2, expansion pump suction port

1шт.

4

172558

PLUG,Exp, 1 1/4"

1-1/4 expansion diff lube tube

1шт.

5

707253R1

O-RING,-222, 70 Duro, 1.484" ID x .139" Thk

clutch housing suction tube, 1-1/2 x 1-3/4 x 1/8

1шт.

6

127903C1

RETAINER

sealing ring

1шт.

7

NOT USED IN THIS APPLICATION

1шт.

8

NOT USED IN THIS APPLICATION

1шт.

9

406147R1

TUBE

ASSY diff lube

1шт.

10

COVER rear frame, Refer to rear frame cover this group for list of components

1шт.

20203R1

BOLT,Hex, 5/8" - 11 x 3 7/8", Gr 5

5/8 x 3-7/8 pln type 5

16шт.

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8 x 2 pln type 5

4шт.

444776

PLUG,Sq Soc, 1/4"-18 NPTF

auto drain, 1/4-18 pln sq/skt

1шт.

444782

PLUG,Sq Soc, 3/8"-18 NPTF

auto drain, 3/8-18 pln sq/skt

1шт.

11

380173R1

PLUG,Cup, 3.762"

Rockshaft opening, right cup Cup, 3.762"

1шт.

12

380174R1

PLUG,Cup, 3.510"

Rockshaft opening, left cup Cup, 3.510"

1шт.

13

380263R1

PLUG

eccentric shaft and mounting bolt openings cup

5шт.

14

1259628C1

TUBE,4.52" Length

ASSY oil level gauge

1шт.

15

104461C1

DIPSTICK

GAUGE ASSY oil level

1шт.

16

367677R91

BREATHER

ASSY oil filter tube cup

1шт.

17

380264R2

GASKET

rear frame cover

1шт.

18

382758R1

COVER

draft control port

1шт.

179843

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

2шт.

19

387926R2

RING

draft control port cover

1шт.

20

382415R1

COVER

valve adj opening, w/o draft control

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

5шт.

28253R1

BOLT

5/16 x 5/8 phc p/t type 5

1шт.

21

382416R1

GASKET

valve adj opening

1шт.

22

388306R1

RING,32.77mm ID x 39.12mm OD x 3.17mm Thk

SEAL oil, rear frame pressure port

1шт.

23

380272R1

COVER

IPTO opening

1шт.

413-818

BOLT,Hex, 1/2" - 13 x 1-1/8", Gr 5

1/2 x 1-1/8 pln type 5

9шт.

24

381467R1

GASKET

IPTO opening cover

1шт.

25

380330R3

COVER

drive att opening

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

26

385757R2

GASKET

drive att opening cover

1шт.

27

383329R1

COVER

draft control adj opening

1шт.

271556

WHEEL CYLINDER,Hex, 5/8" - 11 x 1 1/4", Gr 5

BOLT, 5/8 x 1-1/4 pln type 5

6шт.

28

383330R1

GASKET

draft control adj opening cover

1шт.

29

72475C1

SUPPORT

ASSY swinging drawbar pivot

1шт.
