(07-11) - DRIVE TRAIN, MOTOR CYLINDER BLOCK KIT

Запчасти Case IH 3488 (07-11) - DRIVE TRAIN, MOTOR CYLINDER BLOCK KIT (04) - Drive Train

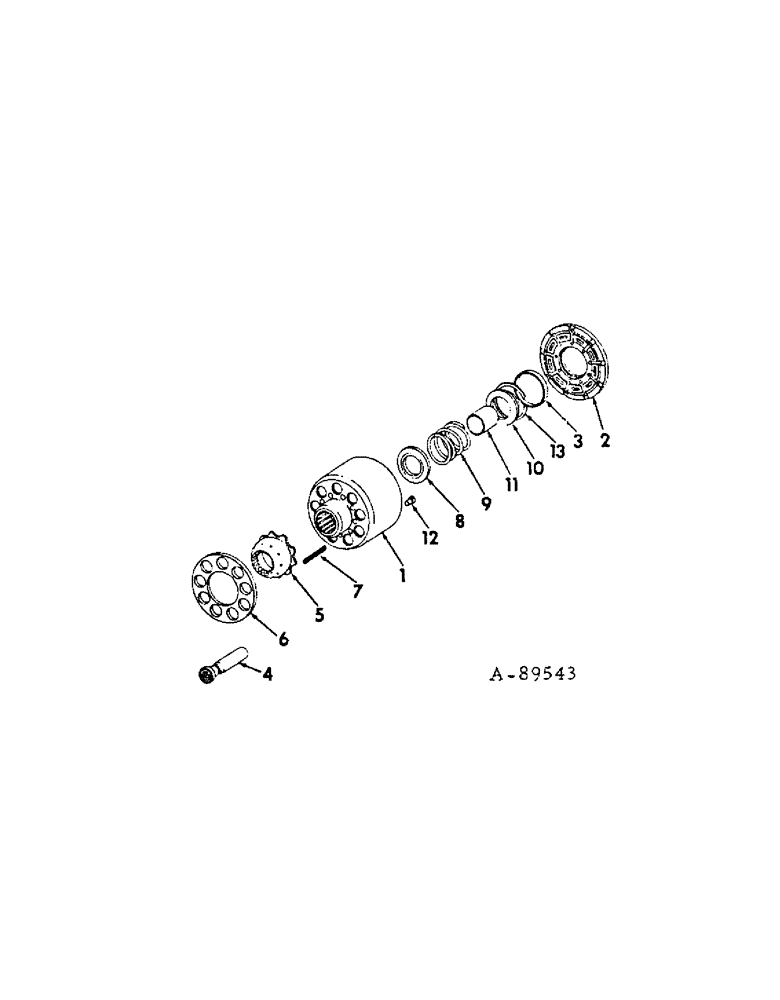

Схема запчастей Case IH 3488 - (07-11) - DRIVE TRAIN, MOTOR CYLINDER BLOCK KIT (04) - Drive Train
7
13
3
8
1
12
4
9
2
5
6
10
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

71606C91

KIT

cylinder block, Consists of Ref. 2 - 13

1шт.

2

527638R1

PLATE ASSY.

PLATE bearing

1шт.

3

527639R1

GUIDE

PILOT bearing plate

1шт.

4

71607C1

PISTON

ASSY

9шт.

5

527641R1

GUIDE

slipper retainer

1шт.

6

527642R1

LARGE PLATE

RETAINER slipper

1шт.

7

70496C1

VALVE SPRING

SPRING slipper retainer guide

6шт.

8

527644R1

SEAT

spring

1шт.

9

527645R1

SPRING

cylinder block

1шт.

10

527646R1

RETAINER

spring

1шт.

11

527647R1

GUIDE

spring

1шт.

12

527648R1

PIN

piston cylinder

1шт.

13

23811R1

RING internal retaining, 3.574 med spiral

1шт.

65022C92

PACKAGE

hydrostatic motor piston and plate kit service, Consists of Ref. 9 and 1, Replaces 65022C91

1шт.

71607C1

PISTON

9шт.

527638R1

PLATE ASSY.

PLATE

1шт.

71609C1

PLATE

1шт.
