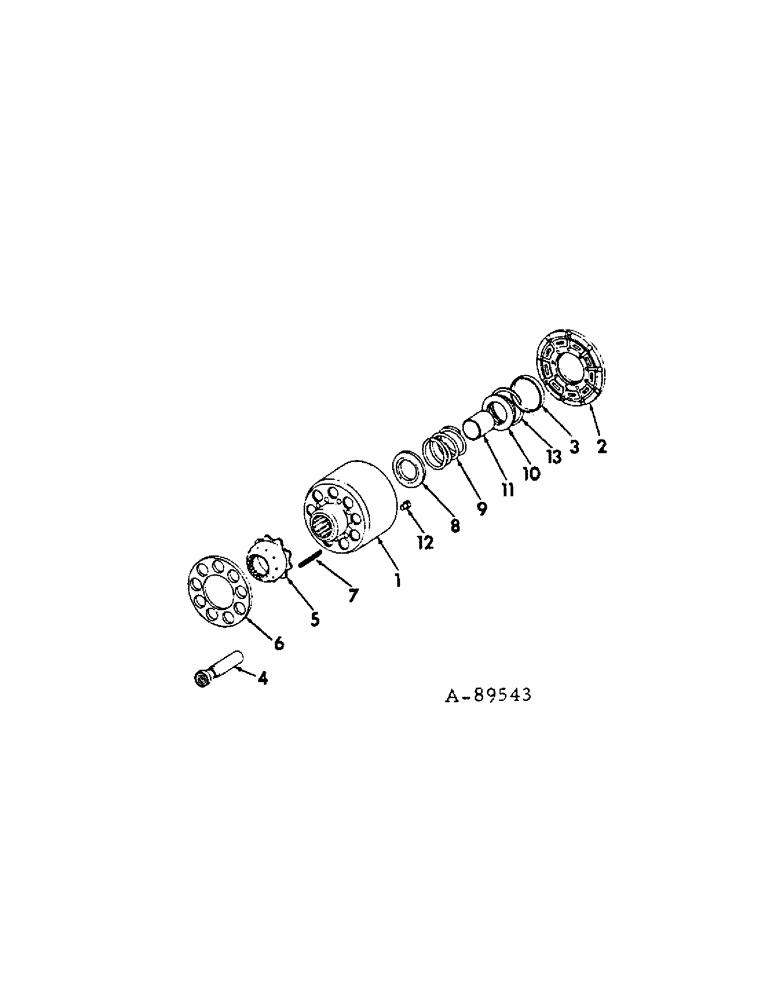

Запчасти Case IH 3488 (07-11[A]) - DRIVE TRAIN, PUMP CYLINDER BLOCK KIT (04) - Drive Train

1

133790C91

KIT

piston cylinder block, Consists of Ref. 2 - 13

1шт.

2

405141R1

PLATE

bearing

1шт.

3

405140R1

RING

PILOT bearing plate

1шт.

4

71605C1

PISTON ASSY.

PISTON ASSY

9шт.

5

405132R1

GUIDE

slipper retainer

1шт.

6

405133R1

RETAINER

slipper

1шт.

7

67822C1

SPRING

retainer

6шт.

8

405136R1

SEAT

spring

1шт.

9

71887C1

SPRING

cylinder block, For use w/ kit 133790C91

1шт.

9

532303R2

SPRING

cylinder block, For use w/ kit 108761C91

1шт.

10

405139R1

RETAINER

spring

1шт.

11

405137R1

GUIDE

spring

1шт.

12

527636R1

PIN

piston cylinder

1шт.

13

58383R1

RING internal retaining, 2.606 med spiral

1шт.

65019C91

STRIPPER PACKAGE

PACKAGE hydrostatic pump, piston and plate kit service, Consists of

1шт.

71605C1

PISTON ASSY.

PISTON

9шт.

405141R1

PLATE

1шт.

71608C1

PLATE ASSY.

PLATE

1шт.
