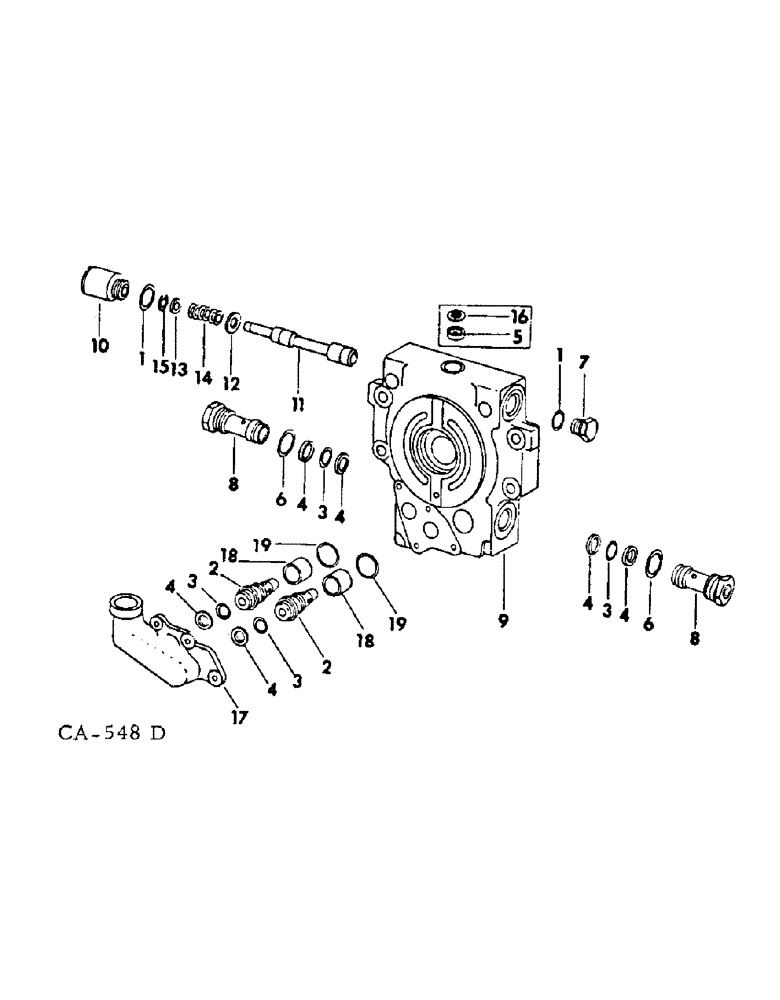

Запчасти Case IH 3488 (07-10) - DRIVE TRAIN, CENTER SECTION BODY (04) - Drive Train

406372R94

BODY

center section, w/ valves

1шт.

1

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

shuttle valve retaining plugs, 59/64 x 1-1/16 x 7/64

2шт.

2

528345R1

CHECK VALVE

VALVE ASSY check

2шт.

3

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

check and relief valves, 13/16 x 1 x 3/32

4шт.

4

393887R1

BACK-UP RING

WASHER back-up, check and relief valve o-rings

6шт.

5

NOT USED IN THIS APPLICATION

1шт.

6

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

1-3/64 x 1-7/32 x 7/64

2шт.

7

405512R1

PLUG

shuttle valve

1шт.

8

531770R2

VALVE, PRESSURE RELI

VALVE ASSY relief

2шт.

9

BODY ASSY center section, Not serviced separately, Order body w/valves, 406372R94

1шт.

10

396067R1

PLUG

shuttle valve spring retainer

1шт.

11

406379R1

VALVE

center section shuttle, Code A

1шт.

11

406380R1

VALVE

center section shuttle, Code B

1шт.

11

406381R1

VALVE

center section shuttle, Code C

1шт.

11

406382R1

VALVE

center section shuttle, Code D

1шт.

11

406383R1

VALVE

center section shuttle, Code E

1шт.

11

406384R1

VALVE

center section shuttle, Code F

1шт.

12

396063R2

WASHER

shuttle valve inner

1шт.

13

396064R2

WASHER

shuttle valve outer

1шт.

14

531079R1

SPRING

shuttle valve centering

1шт.

15

396066R1

SNAP RING,#46, .433", Ext

RING external retaining, 0.433 rect sect

1шт.

16

NOT USED IN THIS APPLICATION

1шт.

17

406340R1

MANIFOLD

check valve

1шт.

560164R1

SCREW,Hex, 3/8"-16 x 7/8", G8, Full Thd

BOLT, 3/8 x 7/8 pln type 8, type 4

2шт.

20841R1

BOLT,Hex, 3/8" - 16 x 2 5/8", Gr 8

3/8 x 2-5/8 pln type 8, type 4

1шт.

18

406991R2

SPACER

Check valve

2шт.

19

406657R1

RING

check valve sealing

2шт.

393885R91

GASKET KIT

PACKAGE relief valve seal, Consists of

1шт.

20947R1

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

1шт.

294459R1

O-RING

1шт.

393887R1

BACK-UP RING

RING

2шт.
