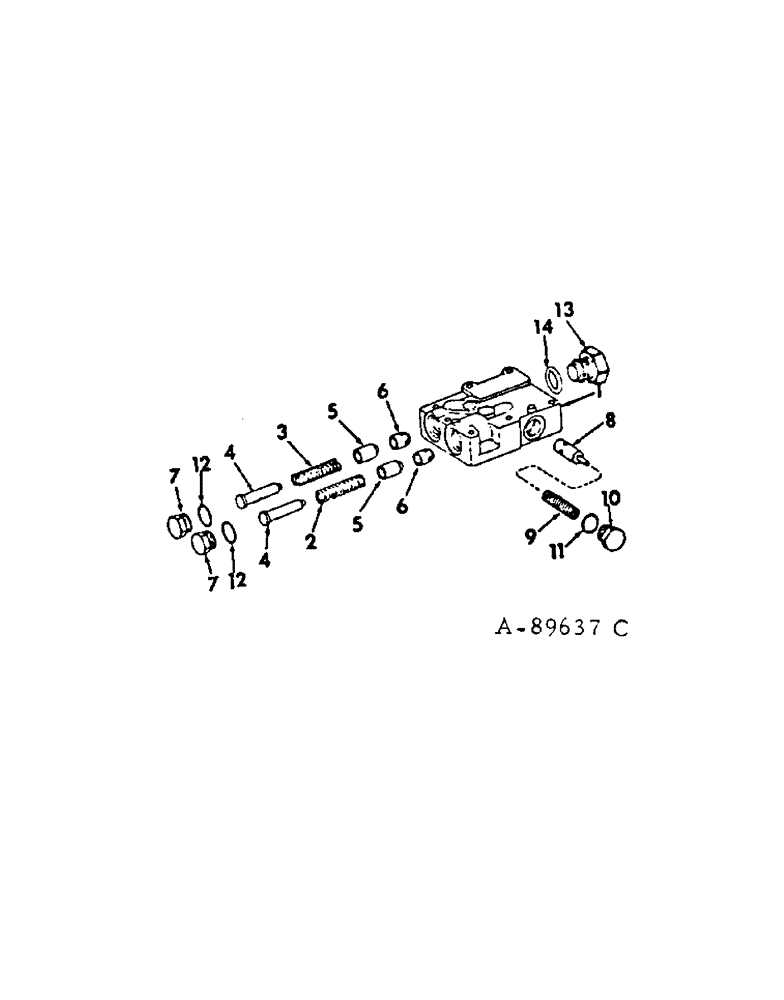

Запчасти Case IH 3488 (07-08) - DRIVE TRAIN, MULTIPLE VALVE BODY (04) - Drive Train

BODY ASSY multiple valve, Order components

1шт.

1

529316R2

BODY

multiple valve

1шт.

2

538708R2

SPRING

poppet valve heavy

1шт.

3

396129R1

SPRING

poppet valve light

1шт.

4

396130R2

PIN

poppet valve piston

2шт.

5

396131R3

VALVE POPPET

2шт.

6

396132R1

BUSHING

poppet valve

2шт.

7

396133R1

PLUG

valve retaining

2шт.

8

529318R1

VALVE

cooler by-pass

1шт.

21872R1

WASHER

0.406 x 0.625 x 0.054

1шт.

9

149976C1

SPRING

cooler by-pass

1шт.

10

396136R1

PLUG

cooler by-pass valve

1шт.

11

368269R1

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

cooler by-pass valve plug, 3/4 OD tube

1шт.

12

297459R1

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

valve retaining plug, 7/8 OD tube

2шт.

13

NOT USED IN THIS APPLICATION

1шт.

14

NOT USED IN THIS APPLICATION

1шт.

CYLINDER ASSY servo motor, Order components

1шт.
