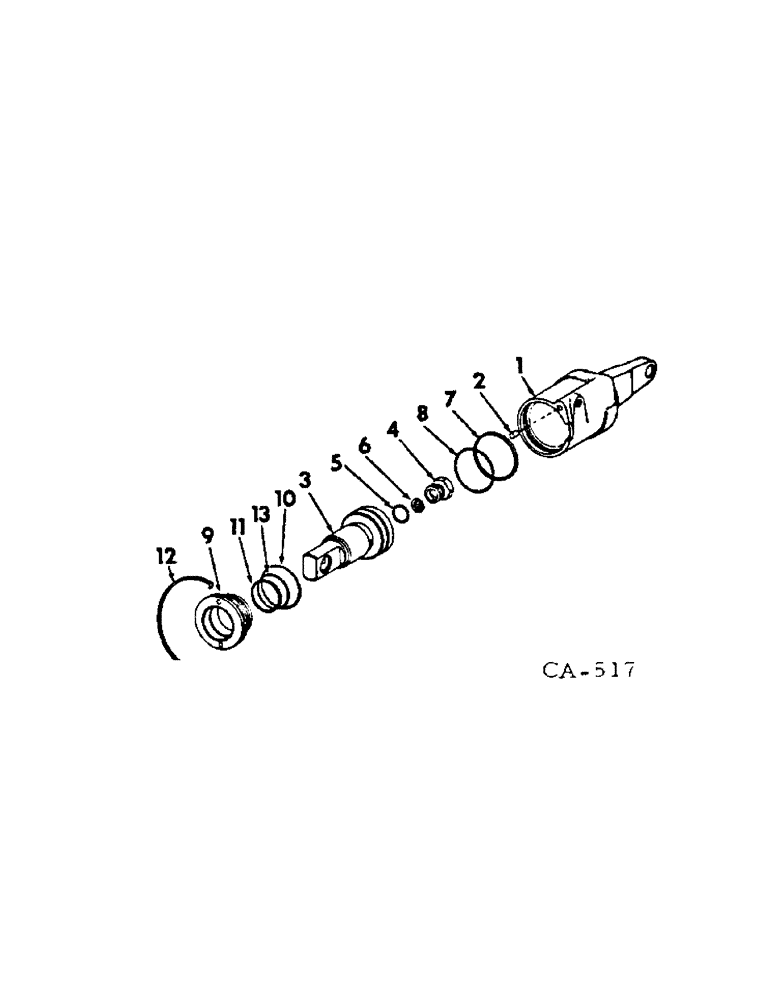

Запчасти Case IH 3488 (07-08[A]) - DRIVE TRAIN, MOTOR SERVO CYLINDER (04) - Drive Train

1

406357R1

BODY

ASSY motor control cylinder

1шт.

2

PLUG press fit, Not serviced separately, Order body assy 406357R1

1шт.

3

406359R1

PISTON

motor control

1шт.

4

406984R11

VENT

PLUG ASSY fixed orifice

1шт.

5

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

fixed orifice, 5/8 OD tube class 6

1шт.

6

529376R1

STRAINER ELEMENT

STRAINER orifice

1шт.

7

387373R1

RING

piston sealing

1шт.

8

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

piston sealing, 2-9/16 x 2-3/4 x 3/32

1шт.

9

406360R1

GUIDE

motor piston

1шт.

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

2-1/2 x 2-11/16 class 5

1шт.

10

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

motor piston guide, 2-13/16 x 3 x 3/32

1шт.

11

406361R1

RING

guide sealing inner

1шт.

12

381873R1

RETAINER

RING retaining

1шт.

13

NOT USED IN THIS APPLICATION

1шт.

406362R91

SEAL KIT

PACKAGE motor servo cylinder o-ring and seal service, Consists of

1шт.

295204R1

O-RING,0.103" Thk x 2.8" ID, -149, Cl 5, 75 Duro

1шт.

327110R1

O-RING,-144, 90 Duro, 2.487" ID x .103" Thk

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

383017R1

O-RING,0.103" Thk x 2.55" ID, -145, Cl 5, 75 Duro

1шт.

387373R1

RING

1шт.

396109R1

RING

1шт.

406361R1

RING

1шт.

3045524R1

O-RING,0.103" Thk x 1.862" ID, -134, Cl 5, 75 Duro

1шт.
