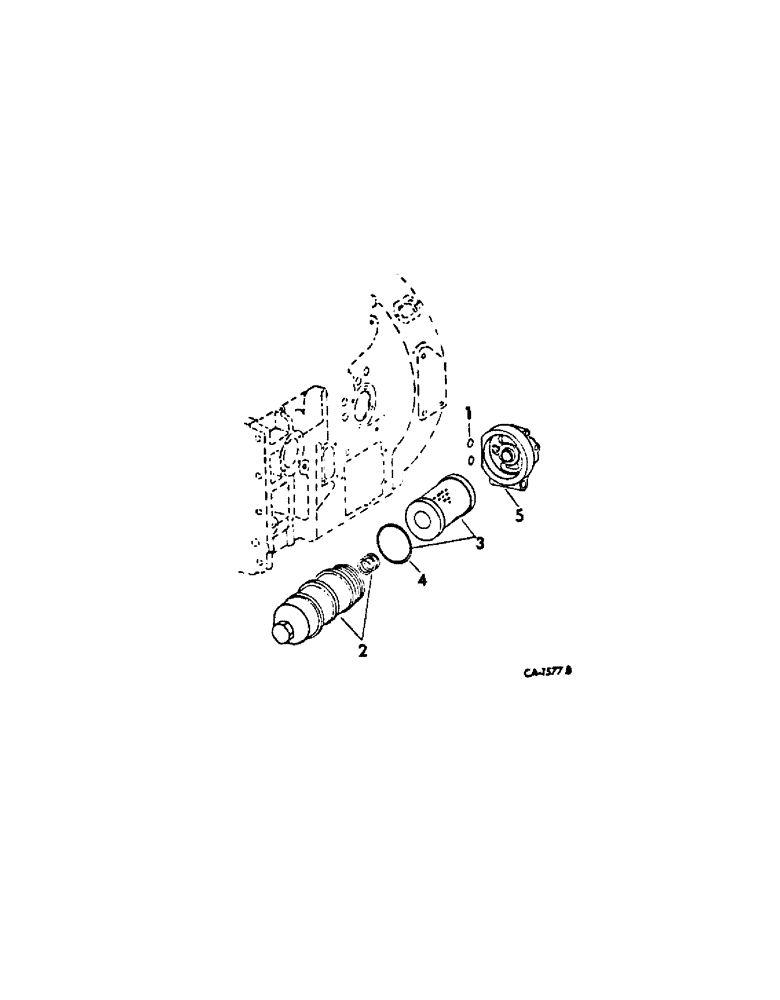

Запчасти Case IH 3488 (07-05) - DRIVE TRAIN, HYDROSTATIC DRIVE OIL FILTER (04) - Drive Train

FILTER ASSY hydrostatic oil, Order components

1шт.

1

254954R1

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

filter base, 1-1/16 x 1-5/16 x 1/8

2шт.

2

532174R2

COVER ASSY

SHELL AND SPRING ASSY

1шт.

3

69878C91

HYDRAULIC OIL FILTER

PACKAGE oil filter cartridge and o-ring service, Consists of

1шт.

NSS

NOT SOLD SEPARAT

CARTRIDGE

1шт.

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

1шт.

4

381109R1

O-RING,0.103" Thk x 3.487" ID, -153, Cl 5, 75 Duro

filter case, 3-1/2 x 3-11/16 x 3/32

1шт.

5

538653R2

HEAD (CYLINDER)

BASE ASSY filter

1шт.

186282

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4 pln type 5

2шт.

186284

BOLT,Hex, 3/8" - 16 x 3 3/4", Gr 5

3/8 x 3-3/4 pln type 5

1шт.

21872R1

WASHER

0.406 x 0.625 x 0.054

3шт.
