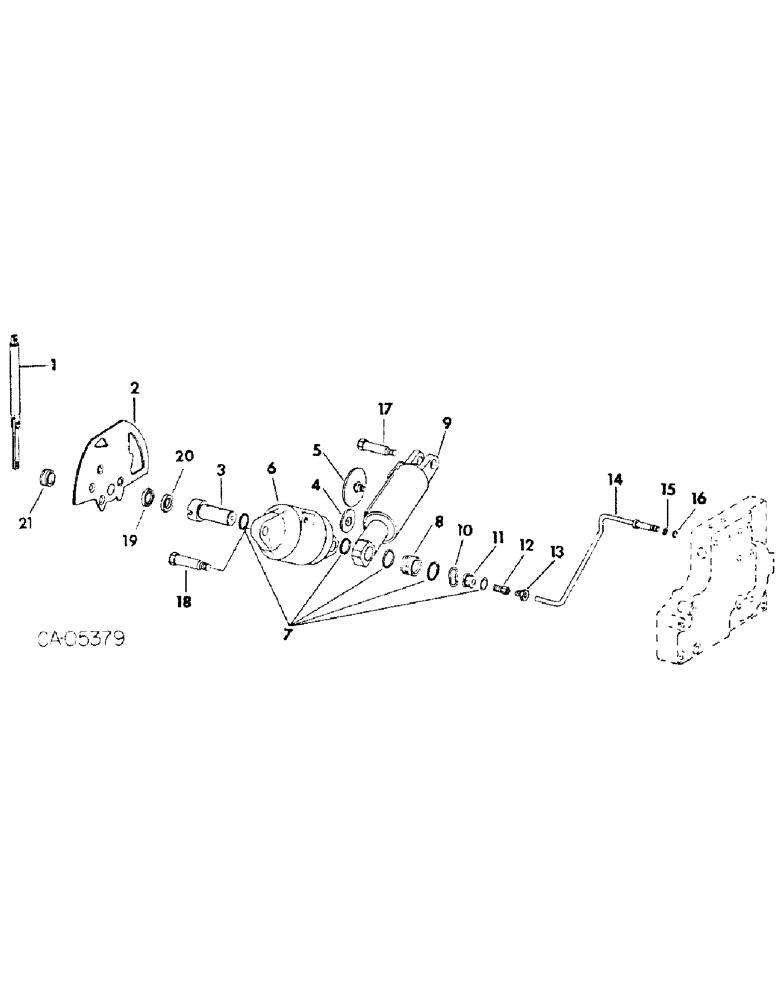

Запчасти Case IH 3488 (07-04) - DRIVE TRAIN, HYDROSTATIC SERVO CYLINDERS AND CONNECTIONS (04) - Drive Train

1

406707R1

ROD

ASSY cam actuating

1шт.

2

123338R2

CAM ASSY control

1шт.

20262R1

PIN, 3/8 x 2.750 pln hdn-dowel, control cam stop 3/8" x 2 3/4"

1шт.

21222R1

LOCK NUT,1/4"-20, GB

NUT lock, 1/4 p/t type 5

3шт.

148107

SCREW, 1/4 x 1/2 pln f/hdcr mach, rec

1шт.

147723

SCREW, 1/4 x 3/4 pln f/hdcr mach, rec

2шт.

3

406656R1

SHAFT

control cylinder anchor

1шт.

22773R1

PIN

clevis, control cylinder anchor shaft retainer, 1/4 x 2.188 pln

1шт.

4

406394R31

PLUG

motor orifice, w/ ring, 396109R1

1шт.

5

539090R91

PLUG

pump orifice, w/ ring, 396109R1

1шт.

539091R1

VALVE SPRING

SPRING pump orifice

1шт.

6

CYLINDER ASSY motor servo, For components see list of parts under details of motor servo pump listing, this group

1шт.

7

529432R91

SEAL KIT

PACKAGE anchor shaft seal, Consists of

1шт.

NSS

NOT SOLD SEPARAT

RING

3шт.

NSS

NOT SOLD SEPARAT

RING

1шт.

NSS

NOT SOLD SEPARAT

O-RING

1шт.

8

406658R1

RING

BUSHING anchor shaft motor support

1шт.

9

CYLINDER ASSY pump servo, For components see list of parts under details of pump servo cylinder listing, this group

1шт.

10

406660R1

SPRING WASHER

wavy spring

1шт.

11

396124R1

FITTING

servo charge tube

1шт.

12

40775D

CONNECTOR, 5/16 hi-duty tube male

1шт.

13

222-503

TUBE NUT,1/2"-20

NUT, 5/16 tube

1шт.

14

406661R1

TUBE

ASSY servo charge

1шт.

15

971043R1

SNAP RING,#50, Ext

1шт.

16

379365R1

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

3/8 x 1/2 x 1/16

1шт.

17

396118R1

BOLT,Shldr, Hex, 7/16" - 14 x 2.83"

hex head shoulder, 7/16-14 x 2-1/8

1шт.

18

406655R1

BOLT,Shldr, Hex, 1/2" - 13 x 2"

BOLT hex head shoulder, 1/2-13 x 2

1шт.

19

324105R91

THRUST BEARING,19.1mm ID x 31.5mm OD x 1.98mm W

BEARING needle thrust

1шт.

20

396795R1

THRUST WASHER

RACE needle bearing thrust

2шт.

21

66534C91

NEEDLE BEARING

ASSY needle

2шт.
