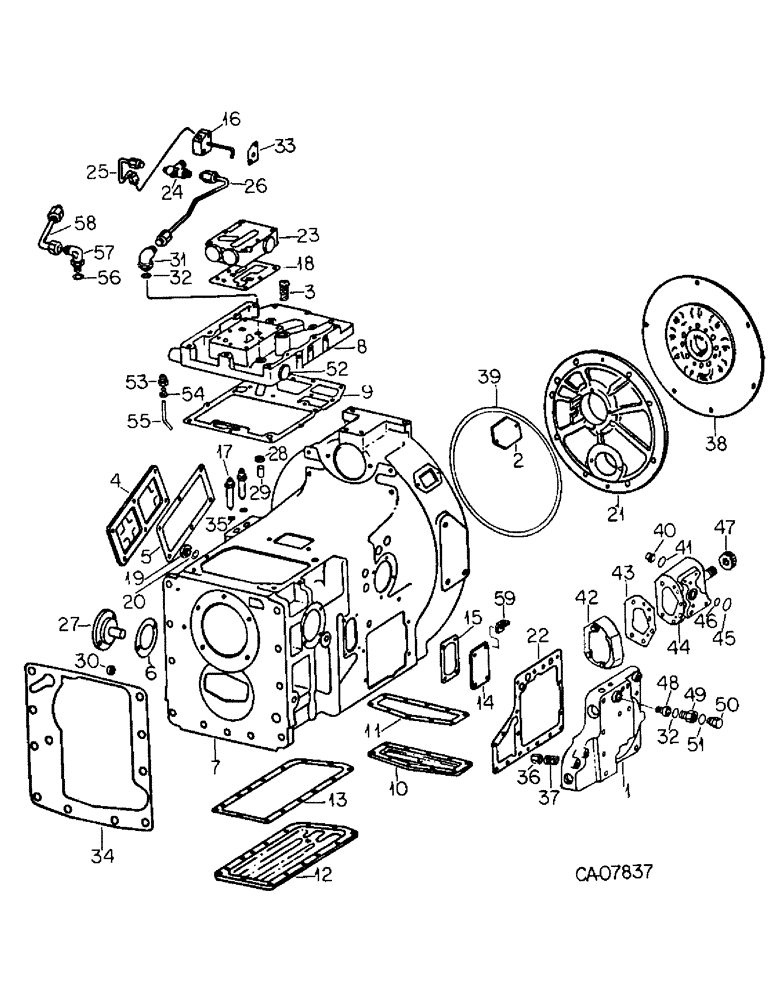

Запчасти Case IH 3488 (07-01) - DRIVE TRAIN, HYDROSTATIC HOUSING, COVERS, DRIVE PLATE HYD. PUMPS, MULT. CONTROL VALVE & CONNECTIONS (04) - Drive Train

1

VALVE ASSY multiple control, For components see list of parts under details of multiple control valve listing, this group

1шт.

179845

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

3/8 x 1-3/4 pln type 5

5шт.

186277

BOLT,Hex, 3/8" - 16 x 2 3/8", Gr 5

3/8 x 2-3/8 pln type 5

11шт.

2

104402C1

COVER

engine timing pointer

1шт.

179791

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

3

539106R1

STRAINER ASSY.

STRAINER suction line

1шт.

20975R1

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG auto pipe, 1-1/4 x 11-1/2 pln sq/skt

2шт.

4

396041R3

BLOCK ASSY.

BLOCK side cover, left

1шт.

179839

BOLT,Hex, 3/8" - 16 x 1", Gr 5

6шт.

116103

COPPER WASHER,10.31mm ID x 20.63mm OD x 1.65mm Thk

WASHER, 0.406 x 0.812 x 0.051 pln

5шт.

5

396042R1

GASKET

side cover block, left

1шт.

6

396796R1

GASKET

cam pivot shaft housing

1шт.

7

71492C93

HOUSING

ASSY drive, Composed of

1шт.

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

396024R1

BUSHING,12.72mm ID x 19.11mm OD x 38.1mm L

1шт.

1017957R1

PLUG

1шт.

1017956R1

PLUG,Cap, .610" OD

4шт.

19904R1

DOWEL,1/2" x 1"

PIN

2шт.

381611R1

SEAT

1шт.

876871R91

NEEDLE BEARING,1.375" ID x 1.6245" OD x 0.5"

1шт.

1017954R1

PLUG,Cap, .485" OD

2шт.

19904R1

DOWEL,1/2" x 1"

PIN dowel, 1/2 x 1.000 pln hdn

2шт.

20975R1

DRAIN PLUG,Sq Soc, 1 1/4"-11 1/2, NTPF

PLUG auto pipe, soc, drive housing, 1-1/4 x 11-1/2 pln sq/skt

1шт.

179893

BOLT,Hex, 1/2" - 13 x 3", Gr 5

1/2 x 3 pln type 5

2шт.

24875R1

BOLT,Hex, 5/8" - 11 x 2", Gr 8

2шт.

24877R1

BOLT,Hex, 5/8" - 11 x 2 1/2", Gr 8

6шт.

26166R1

12 PT SCREW,Flg, 5/8" - 11 x 2 1/4"

SCREW, 5/8 x 2.250 phc ast 12 pt flg

1шт.

28592R1

HEX SOC SCREW,5/8" - 11 x 2"

SCREW cap, 5/8 x 2 phc h/shd

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

25711R1

WASHER

0.656 x 1.312 x 0.150 hdn

10шт.

1017954R1

PLUG,Cap, .485" OD

lift hole, clear

2шт.

104941

PLUG

no 5 cork

1шт.

104940

PLUG

no 4 cork

4шт.

8

532325R1

COVER

drive housing, top

1шт.

375362R1

PIN,12.69mm OD x 34.8mm L

dowel, 1/2 x 1-3/8

1шт.

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

auto pipe, 1/8-27 pln h/hd

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8 pln type 5

6шт.

179844

BOLT,Hex, 3/8" - 16 x 1 5/8", Gr 5

3/8 x 1-5/8 pln type 5

1шт.

179846

LEVER

3шт.

179847

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

9

406495R2

GASKET

drive housing, top

1шт.

10

406497R1

COVER

front bottom

1шт.

445686

PLUG

auto pipe, 3/8-18 pln sq/hd

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

10шт.

11

406498R1

GASKET

front bottom

1шт.

12

406499R2

COVER ASSY

COVER rear bottom

1шт.

445686

PLUG

auto pipe, 3/8-18 pln sq-hd

1шт.

20953R1

DRAIN PLUG,Sq Hd, 1 1/4"-11 1/2 NPTF

PLUG, 1-1/4 x 11-1/2 pln sq/hd auto pipe, 1/4

1шт.

179838

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3/8 x 7/8 pln type 5

15шт.

13

406500R1

GASKET

bottom rear cover

1шт.

14

406501R1

COVER

right side

1шт.

179835

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

3шт.

179837

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

15

406502R1

GASKET

right side cover

1шт.

16

68230C1

BLOCK

ASSY lube

1шт.

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

5/16 x 5/8 pln type 5

2шт.

17

406546R1

UNION

7/16-20 37 deg bulk head tube to drvie housing

2шт.

18

406548R1

GASKET

multi-valve body

1шт.

19

406508R1

PLUG

hollow hex

1шт.

20

307915R1

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-1/4 OD tube class 6

1шт.

21

406649R1

COVER

front bearing support

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

8шт.

22

406716R2

GASKET

multiple control valve, heavy

1шт.

22

406717R2

GASKET

multiple control valve, light

1шт.

23

BODY ASSY multiple valve, For components see list of parts under details of multiple valve body listing, this group

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

5шт.

179849

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

24

532321R1

CROSS

lubrication

1шт.

25

68233C1

TUBE

ASSY lube, front section

1шт.

26

529396R1

TUBE

ASSY lube, rear section

1шт.

27

123059C91

HUB CAP

HUB ASSY cam pivot shaft

1шт.

19969R1

DOWEL,3/4" x 2 1/4"

PIN, 3/4 x 2.250 pln hdn-dowel

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

382331R1

SEALING WASHER,8.33mm ID x 12.7mm OD x 0.79mm Thk

sealing

2шт.

28

376022R91

OIL SEAL

SEAL oil

1шт.

29

396024R1

BUSHING,12.72mm ID x 19.11mm OD x 38.1mm L

cam actuating rod

1шт.

30

381611R1

SEAT

valve

1шт.

31

9410978

ELBOW,90 Degree, 7/8"-14, 37 Degree x 7/8"-14, O-Ring

5/8 C-Z hyd fld adj 90D

1шт.

32

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

33

406506R1

GASKET

lube block

1шт.

34

406507R2

GASKET

drive housing to rear frame

1шт.

35

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, 5/16 OD tube

2шт.

36

354057R2

VALVE

power steering return check

1шт.

37

531542R1

VALVE SPRING

SPRING power steering return check valve

1шт.

38

69298C92

STRIPPER PACKAGE

PACKAGE drive plate service, Consists of

1шт.

NSS

NOT SOLD SEPARAT

PLATE ASSY

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

NSS

NOT SOLD SEPARAT

LUBRICANT

1шт.

27876R1

BOLT,Hex, 1/2" - 13 x 7/8", Gr 8

1/2 x 7/8 phc p/t type 8

6шт.

406579R1

WASHER

17/32 x 7/8 x 16 ga

6шт.

39

23072R1

O-RING,11.975" ID x 12.525" OD x 0.275"

12 x 12-1/2 x 1/4

1шт.

40

406712R1

TUBE

ASSY pump suction

1шт.

41

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8 pump suction port

1шт.

42

378866R94

PUMP, HYDRAULIC

PUMP ASSY hydraulic gear, 4.5 GPM, Cessna, Only serviceable items are

1шт.

42

1949294C1

REMAN-HYD PUMP

Remanufactured Hydraulic Pump

1шт.

42

1949295C1

CORE-HYDRAULIC PUMP

Return Number, Hydraulic Pump

1шт.

179848

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

4шт.

71911C1

SEAL KIT

PACKAGE hyd pump o-ring and gasket, service for pump assy 378866R91, Consists of

1шт.

NSS

NOT SOLD SEPARAT

O-RING, 1/16 x 1/2 ID

1шт.

NSS

NOT SOLD SEPARAT

O-RING, 1/16 x 3/4 ID

1шт.

NSS

NOT SOLD SEPARAT

O-RING, 1/16 x 9/16 ID

1шт.

NSS

NOT SOLD SEPARAT

WASHER

1шт.

NSS

NOT SOLD SEPARAT

DIAPHRAGM

1шт.

NSS

NOT SOLD SEPARAT

GASKET

1шт.

NSS

NOT SOLD SEPARAT

SEAL

1шт.

NSS

NOT SOLD SEPARAT

GASKET

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

43

371543R2

GASKET

hydraulic pump

1шт.

44

70935C91

PUMP, HYDRAULIC

PUMP ASSY hyd gear, 17 GPM, Cessna pump, For components see list of parts under details of hydraulic pump listing, Group 10

1шт.

44

1949292C1

REMAN-HYD PUMP

3488 International Hydrostatic Tractor, Pump Assy.

1шт.

44

1949293C1

CORE-HYDRAULIC PUMP

Return Number

1шт.

179861

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 5

7/16 x 1-3/8 pln type 5

2шт.

179864

BOLT,Hex, 7/16" - 14 x 1 3/4", Gr 5

7/16 x 1-3/4 pln type 5

2шт.

52999D

WASHER

WASHER pump mounting bolt sealing

4шт.

45

254691R1

O-RING,-211, 70 Duro, .796" ID x .139" Thk

pump pressure port large, 13/16 x 1-1/16 x 1/8

1шт.

46

352221R1

O-RING,0.103" Thk x 0.549" ID, -113, Cl 5, 75 Duro

pump pressure port small, 9/16 x 3/4 x 3/32

1шт.

47

406714R1

GEAR WHEEL

GEAR hydraulic pump drive, 22T

1шт.

19263R1

LOCK NUT,Hex, 5/8" - 18

NUT, 5/8-NF pln p/t lock type 5

1шт.

48

406718R1

SCREEN

ASSY strainer

1шт.

49

406721R1

UNION

PLUG strainer

1шт.

50

509410356

PLUG 1/4 C-Z str thd o-ring boss

1шт.

51

369751R1

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, 1/4 OD tube, class 6

1шт.

52

9410360

PLUG

5/8 C-Z str thd o-ring boss

1шт.

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

5/8 OD tube class 6

1шт.

53

157221

CONNECTOR threaded sleeve

1шт.

54

114963

SLEEVE small hex threaded

1шт.

55

406496R1

TUBE

motor lubrication

1шт.

56

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, 3/8 OD tube, class 6

1шт.

57

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8 C-Z hyd fld adj 90D

1шт.

58

532322R2

TUBE

ASSY pump lubrication

1шт.

59

67741C1

BRACKET

tube clip

1шт.
