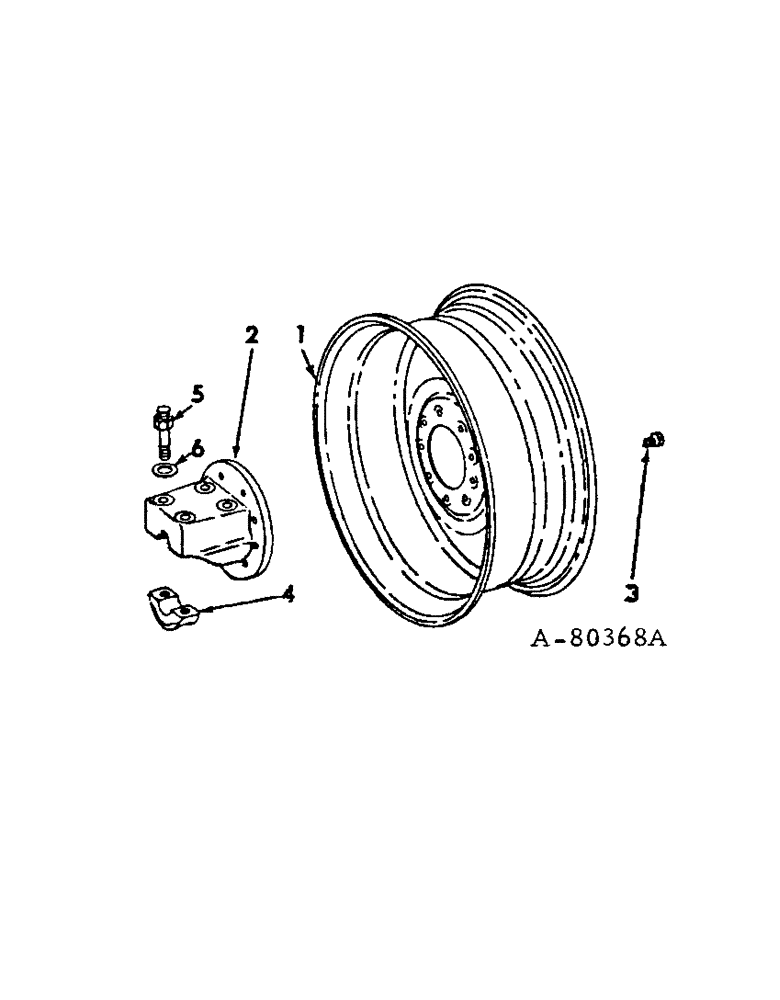

Запчасти Case IH 3488 (15-05) - WHEELS AND TRACTION, OUTER DUAL REAR WHEELS, DISC TYPE Wheels & Traction

1

400880R1

WHEEL

ASSY disc type rear, W16L-38 rim for 16.9-38 or 18.4-38 tire, 5.9 in offset

2шт.

1

400879R2

WHEEL

ASSY disc type rear, W16L-38 rim for 16.9-38 or 18.4-38 tire, 10.7 in offset

2шт.

1

391057R93

WHEEL

ASSY disc type rear, W15L-34 rim for 18.4-34 tire, 5.47 in offset

2шт.

2

110415C1

HUB

outer dual rear wheel

2шт.

3

391004R1

BOLT,Hex, 5/8"

BOLT rear wheel mounting

18шт.

4

68806C1

CLAMP

hub

4шт.

5

539827R2

STUD

ASSY rear wheel hub clamp

8шт.

6

384697R1

WASHER

rear wheel hub clamp stud

8шт.

373941R2

SOCKET WRENCH

WRENCH box, 1-5/16 in

1шт.
