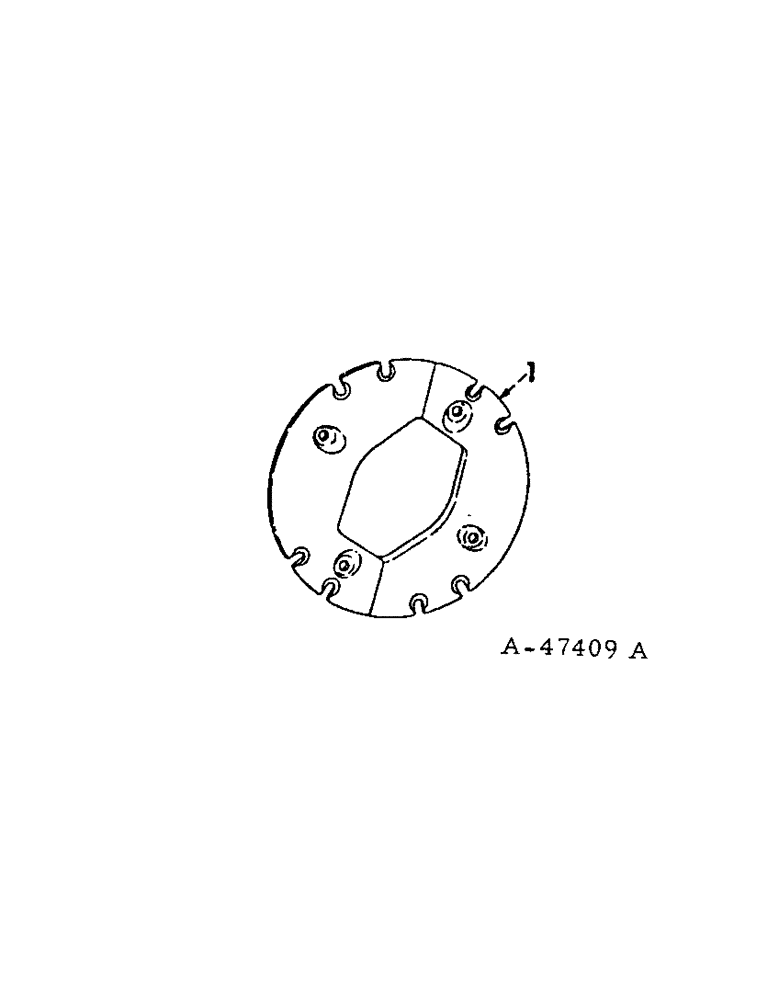

Запчасти Case IH 3488 (15-05[A]) - WHEELS AND TRACTION, REAR WHEEL WEIGHTS, SPLIT TYPE Wheels & Traction

Схема запчастей Case IH 3488 - (15-05[A]) - WHEELS AND TRACTION, REAR WHEEL WEIGHTS, SPLIT TYPE Wheels & Traction
1

Артикул

Название

Примечание

Количество

1

400078R2

WEIGHT

half, rear wheel, approx. 75 lbs each, (4) for 1st, 2nd or 3rd position

1шт.

401918R1

BOLT (SPREADER),3/4" - 10 x 6 1/2"

BOLT rear wheel weight mounting, 3/4-10 x 6-1/2 C-Z sq-hd mach, (8) used w/ 34 and 38 in heavy duty wedge lock wheels, 1st position only

1шт.

375116R1

BOLT,3/4" - 10 x 4"

rear wheel weight mounting, 3/4-10 x 4 C-Z sq-hd mach, (8) used w/ 34 and 38 in wheels

1шт.

280954

NUT,3/4"-10, G5

8шт.

426897R

NUT, 3/4 jam type 5

8шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1st position only

8шт.

366111R1

BOLT,Sq Hd, 3/4" - 10 x 3 1/4"

2nd and 3rd position only, 3/4-10 x 3-1/4 C-Z sq-hd mach

8шт.

366112R1

WASHER

2nd and 3rd position only, 0.781 x 1.250 x 0.105

16шт.

Выбрано товаров: 8
