Запчасти Case IH 3488 (15-04) - WHEELS AND TRACTION, REAR WHEELS, WEDGE LOCK TYPE Wheels & Traction

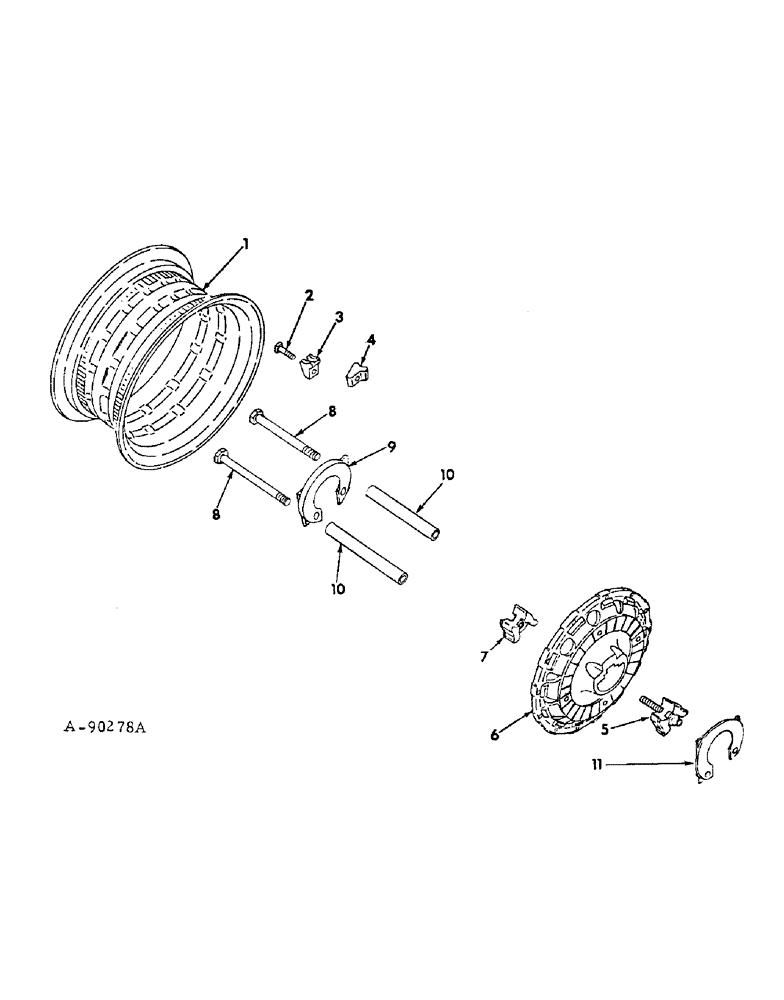

Схема запчастей Case IH 3488 - (15-04) - WHEELS AND TRACTION, REAR WHEELS, WEDGE LOCK TYPE Wheels & Traction
11
3
8
10
7
4
5
1
6
9
2
8
10

Артикул

Название

Примечание

Количество

1

392647R1

RIM

rear wheel, WH14L-38 for 15.5-38 tire, Use w/ 397188R3

2шт.

1

392031R1

RIM

rear wheel, W16L-38 for 18.4-38 tire, Use w/ 397188R3

2шт.

1

65319C1

RIM

rear wheel, W18L-38 for 20.8-38 tire, Use w/ 397188R3

2шт.

1

392032R1

RIM

rear wheel, W15L-38 rim for 16.9-38 tire

2шт.

2

393772R1

BOLT,Sq Hd, 3/4" - 16 x 3"

rear wheel rim clamp

24шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4"

24шт.

352536R1

NUT

rear wheel rim clamp

24шт.

3

380870R1

CLAMP

rear wheel rim

20шт.

4

397251R1

CLAMP

rear wheel, fixed

4шт.

5

397189R2

WEDGE

ASSY wheel

2шт.

6

397188R3

WHEEL

rear, 38 in.

2шт.

7

397193R2

WEDGE

wheel

2шт.

8

535561R1

SCREW

3/4-16 x 9-3/4 hex-hd cap

2шт.

9

535559R2

PLATE

rear wheel wedge

1шт.

10

535546R1

BUSHING,19.74mm ID x 22.23mm OD x 180.34mm L

bolt tube

2шт.

11

535557R2

PLATE

rear wheel wedge

1шт.

536022R92

PACKAGE

wedge wheel remover tool service, Consists of

1шт.

535557R2

PLATE

wedge remover

1шт.

535559R2

PLATE

wedge remover

1шт.

535561R1

SCREW

BOLT wedge removed

2шт.

535546R1

BUSHING,19.74mm ID x 22.23mm OD x 180.34mm L

wedge remover

2шт.

529959R1

TOOL

WRENCH socket, 7/8

1шт.

535409R1

STRIP

wrench grip

1шт.

NSS

NOT SOLD SEPARAT

INSTRUCTIONS

1шт.

535409R1

STRIP

wrench grip

1шт.

529959R1

TOOL

WRENCH wedge, wheel socket, 7/8

1шт.

Выбрано товаров: 26
