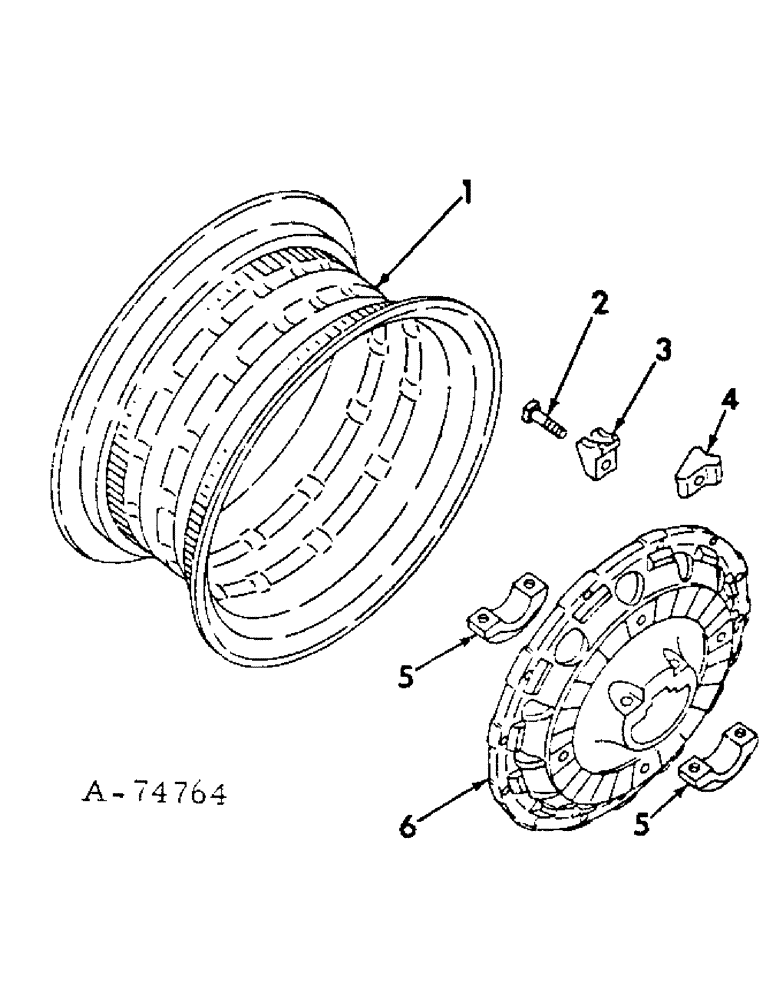

Запчасти Case IH 3488 (15-03) - WHEELS AND TRACTION, REAR WHEELS, CLAMP TYPE Wheels & Traction

1

380868R1

RIM

rear wheel, W16L-34 for 18.4-34 tire, standard

2шт.

1

392031R1

RIM

rear wheel, W16L-38 for 18.4-38 tire

2шт.

1

380869R1

RIM

rear wheel, WH14L-38 for 15.5-38 tire

2шт.

1

392032R1

RIM

rear wheel, W15L-38 for 16.9-38 tire

2шт.

1

380867R1

RIM

rear wheel, W15L-34 for 16.9-34 tire

2шт.

2

380878R1

BOLT (SPREADER),Sq Hd, 3/4" - 16 x 2 3/4"

BOLT rear wheel rim, (16) for 38 in 383581R1, (24) for 34 in 383579R2

1шт.

2

393772R1

BOLT,Sq Hd, 3/4" - 16 x 3"

rear wheel rim clamp, (24) for 38 in 392020R1

1шт.

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

WASHER, LOCK, 3/4", 1 per bolt

1шт.

352536R1

NUT

rear wheel rim clamp, one per bolt

1шт.

3

380870R1

CLAMP

rear wheel rim

1шт.

4

397251R1

CLAMP

rear wheel rim, fixed

4шт.

5

68806C1

CLAMP

rear wheel hub

4шт.

539827R2

STUD

ASSY rear wheel hub clamp

8шт.

384697R1

WASHER

rear wheel hub clamp stud

8шт.

6

383579R2

WHEEL

34 in rear, For rim 380868R1 and 380867R1

2шт.

6

392020R1

WHEEL

38 in rear, For rim 392031R1 and 392032R1

2шт.

6

383581R1

WHEEL (STEERING)

WHEEL, 38 in rear, For rim 380869R1

2шт.

373941R2

SOCKET WRENCH

WRENCH box, 1-5/16 in

1шт.
