Запчасти Case IH 3488 (15-02) - WHEELS AND TRACTION, FRONT WHEELS, TRACTORS WITH ALL WHEEL DRIVE, WITH ONE PIECE DRIVE SHAFT Wheels & Traction

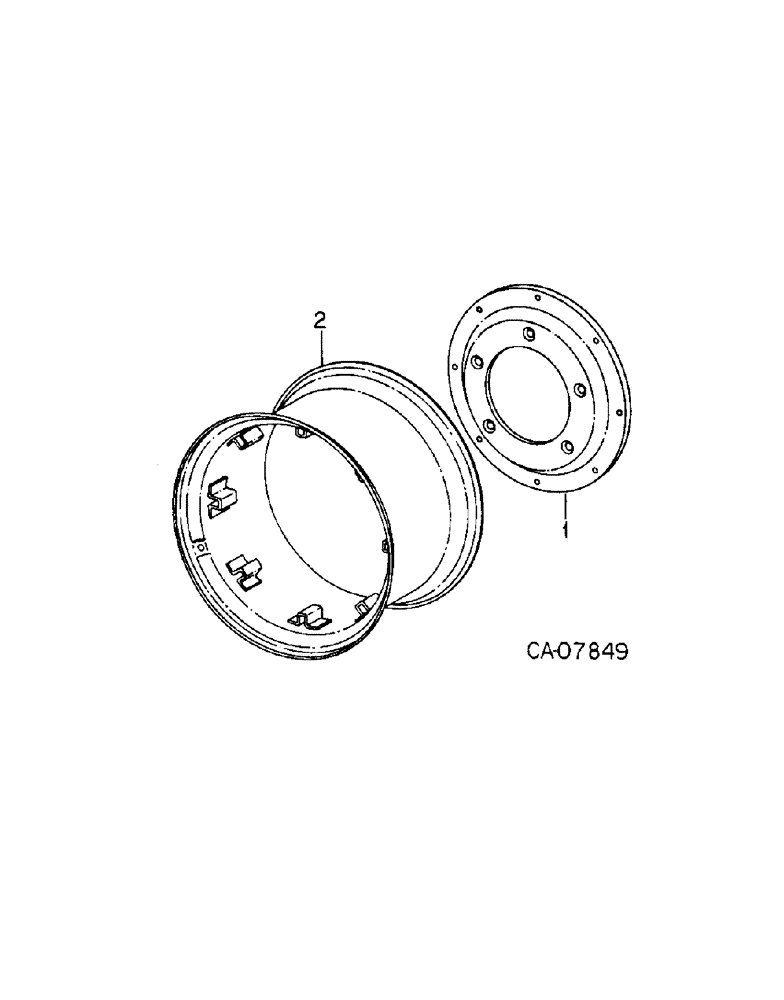

Схема запчастей Case IH 3488 - (15-02) - WHEELS AND TRACTION, FRONT WHEELS, TRACTORS WITH ALL WHEEL DRIVE, WITH ONE PIECE DRIVE SHAFT Wheels & Traction
1
2

Артикул

Название

Примечание

Количество

1

1264531C1

DISC

ASSY center wheel

2шт.

2

1251882C1

DISC, WHEEL

RIM ASSY front, 76 - 84 in tread, 78 - 82 in tread, 72 - 88 in tread, 70 - 90 in tread, For 13.6 x 24 and 14.9 x 24 tires

2шт.

890858R1

BOLT,Hex, 5/8" - 18 x 4", Gr 8

5/8-NF x 4 type 8

16шт.

25711R1

WASHER

0.656 x 1.312 x 0.150 hdn

16шт.

225861

NUT,5/8"-18, G8

16шт.

Выбрано товаров: 5
