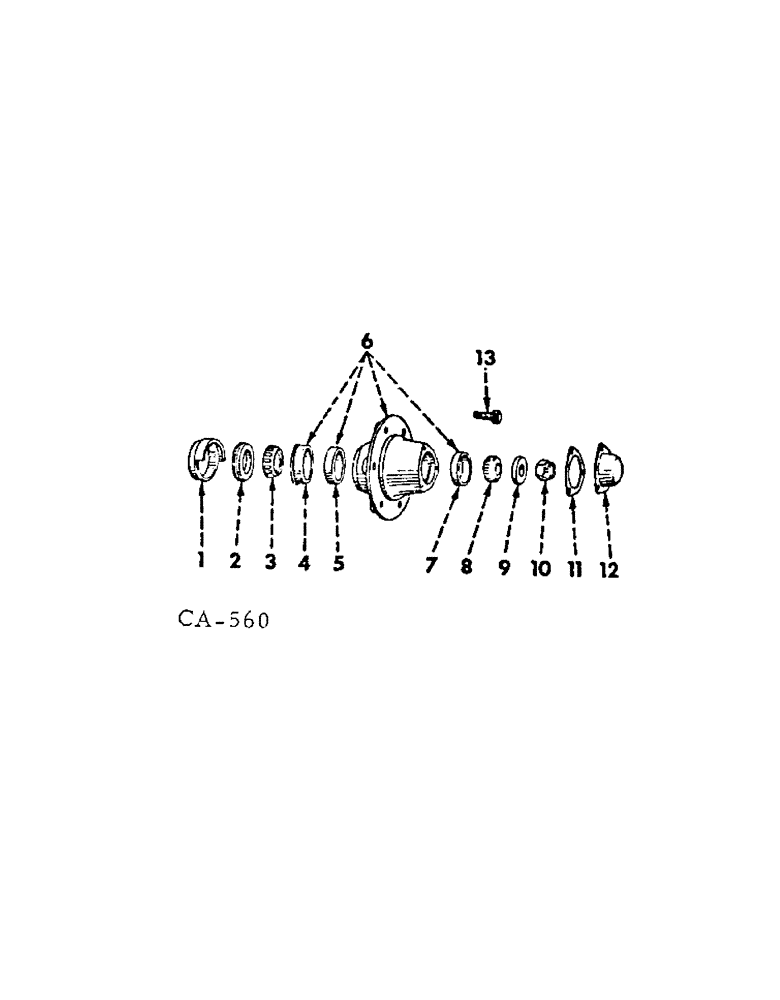

Запчасти Case IH 3488 (14-03) - SUSPENSION, FRONT WHEEL HUB, BEARINGS AND CUP Suspension

1

48701D

SHIELD

front wheel dust

2шт.

2

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

oil, front wheel

2шт.

3

G15215

ROLLER BEARING

BEARING ASSY inner cone, front wheel

2шт.

4

48703D

RETAINER

oil seal, front wheel

2шт.

5

619387R1

BEARING CUP

BEARING inner cup, front wheel

2шт.

6

391824R11

HUB ASSY.

HUB ASSY front wheel, 8 bolt

2шт.

19700R91

FITTING

lube, 45 deg, 3/16 hole

2шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Front wheel outer

2шт.

8

618023R1

CONE

BEARING ASSY outer cone, front wheel

2шт.

9

370255R2

WASHER,22.63mm ID x 47.75mm OD x 4.18mm Thk

outer bearing retainer, front wheel

2шт.

10

427645

SLOTTED NUT,7/8"-14, G5

NUT front wheel hub

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

11

369860R1

GASKET,0.79mm Thk

hub cap, front wheel

2шт.

12

369859R1

CAP

front wheel hub

2шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

5/16 x 5/8 type 5

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

13

403538R2

WHEEL BOLT,Hex, 9/16" - 18 x 1.21"

BOLT front wheel mounting, For 8 bolt hub

16шт.

371418R91

PACKAGE

front wheel bearing overhaul, Consists of

2шт.

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE

1шт.

G15215

ROLLER BEARING

CONE

1шт.

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

1шт.

619387R1

BEARING CUP

CUP

1шт.

369860R1

GASKET,0.79mm Thk

1шт.

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

OIL SEAL

1шт.

48703D

RETAINER

1шт.
