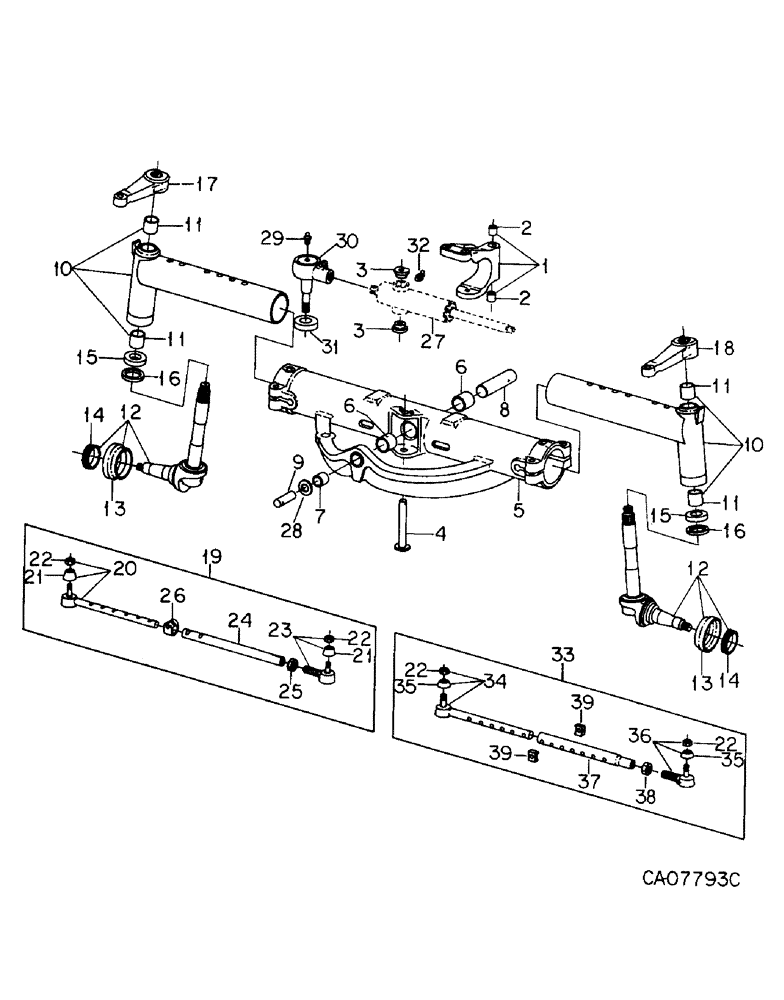

Запчасти Case IH 3488 (14-01) - SUSPENSION, ADJUSTABLE WIDE TREAD FRONT AXLE Suspension

1

71787C91

ARM

ASSY center steering, Includes Ref. No. 2

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING lube, center strg arm, 1/8 ptf x/short

1шт.

2

71788C1

BUSHING,25.4mm ID x 28.6mm OD x 25.4mm L

2шт.

3

531237R1

CAP

trunnion

2шт.

531238R1

BOLT,Hex, 5/8" - 18 x 1.6", Cl 8

trunnion cap

2шт.

1270887C1

WASHER

trunnion cap bolt

2шт.

4

531239R1

PIN,50.8mm OD x 193.42mm L

center arm pivot

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

1шт.

350818R1

O-RING,0.984" ID x 0.139" Width

1 x 1-1/4 class 5

2шт.

71421C1

WASHER

1.031 x 1.75 x 0.156, Or as required

3шт.

Q175

WASHER

1.031 x 1.75 x 0.042 pln, Or as required

1шт.

5

137663V91

AXLE ASSY front, w/ stay rod, 52 to 76 in tread

1шт.

5

120733C91

AXLE, REAR

AXLE ASSY front, w/ stay rod, 58 to 82 in tread

1шт.

24998R1

BOLT,Hex, 3/4" - 16 x 4", Gr 8

3/4-NF pln type 8

4шт.

218404

NUT,3/4"-16, G8

3/4-NF pln type 8

4шт.

25868R1

BOLT,Hex, 3/4" - 16 x 6 1/2", Gr 8

3/4 x 6-1/2 phc type 8

2шт.

218404

NUT,3/4"-16, G8

3/4-NF pln type 8

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING lube, 3/16 hole

1шт.

6

531242R1

BUSHING,50.89mm ID x 54.113mm OD x 38.1mm L

2шт.

7

482669R1

BUSHING,31.8mm ID x 34.95mm OD x 26.92mm L

rear pivot

2шт.

8

1280692C1

AXLE PIN

PIN front axle pivot, For tractors w/ bolster 1280705C1

1шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING lube, 3/16 hole

1шт.

1280683C1

AXLE PIN,12.7mm OD x 178mm L

PIN, 3/8 x 6-1/8 hd type 5

1шт.

934792R1

COTTER PIN,M3.2 x 20

PIN cotter, 3.2 x 20 MM pln

2шт.

8

144216C1

AXLE PIN

PIN front axle pivot, For tractors w/ bolster, 130115C2

1шт.

28431R1

HEADED PIN,3/8" x 6 1/8"

PIN, 3/8 x 6-1/8 hd type 5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

9

120732C1

PIN

axle rear pivot

1шт.

631252R1

HEADED PIN,9.53mm OD x 104.78mm L

PIN, 3/8 x 4.125 pln hd type 5

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

17049R91

LUBE NIPPLE,67.5 Degree, 1/8"-27 NPT x 1.03" lg, Leakproof

FITTING lube, 65 deg, 1/8 ptf short

1шт.

10

531260R93

AXLE

EXTENSION ASSY front axle, w/ 52 to 76 in tread, Replaces 531258R95

2шт.

10

531260R94

EXTENSION ASSY front axle, w/ 58 to 82 in tread

2шт.

80722

LUBE NIPPLE,3/16" x .55" lg, Drive

FITTING lube, 3/16 hole

2шт.

11

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

4шт.

12

71785C92

STEERING KNUCKLE

KNUCKLE ASSY steering

2шт.

427645

SLOTTED NUT,7/8"-14, G5

NUT, 7/8-NF pln slt type 5

2шт.

108643

COTTER PIN,5/32" x 1 3/8"

Pin, Split (Cotter), 5/32" x 1 3/8"

2шт.

427546

JAM NUT,Jam, 1 3/8"-12, G5

1-3/8-NF pln jam type 5

2шт.

Q326

WASHER

1.406 x 2.750 x 0.042 pln

2шт.

Q326

WASHER

1.406 x 2.750 x 0.042 pln

2шт.

13

48701D

SHIELD

front wheel dust

2шт.

14

370254R91

OIL SEAL,57.02mm ID x 82.55mm OD x 6.86mm Thk

front wheel oil

2шт.

15

405831R91

BEARING

thrust, steering knuckle pivot

2шт.

16

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

Steering knuckle pivot felt

2шт.

17

148418C2

ARM steering knuckle, left, Replaces 531248R2

1шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

2шт.

18

148419C2

ARM steering knuckle, right, Replaces 531249R2

1шт.

32-822

COTTER PIN,1/8" x 1 3/8"

Pin, Split (Cotter), 1/8" x 1 3/8"

2шт.

19

ROD ASSY tie, Manufactured by O & S Brg or Columbus Auto Parts, Not serviced separately, Order Ref. 20 - 26

2шт.

20

384441R93

ROD

END ASSY welded, Tie rods manufactured by O & S Brg or Columbus Auto Parts, axles w/ 52 to 76 in tread

1шт.

20

359984R93

TIE-ROD

ASSY welded, Tie rods manufactured by O & S Brg or Columbus Auto Parts, axles w/ 58 to 82 in tread

1шт.

87414

LUBE NIPPLE,1/4" - 28

FITTING lube, 1/4

2шт.

21

358900R1

SEAL

COVER dust, Tie rods manufactured by O & S Brg or Columbus Auto Parts

4шт.

22

NLS

NO LONGER SERVICED

5/8-NF slt type 5

4шт.

23

384440R92

END

ASSY right thd, Tie rods manufactured by O & S Brg or Columbus Auto Parts, axles w/ 52 to 76 in tread

2шт.

23

384006R92

END

ASSY right thd, Tie rods manufactured by O & S Brg or Columbus Auto Parts, axles w/ 58 to 82 in tread

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , PTF 1/8"-27 x .66 lg

1шт.

24

384439R1

TUBE,0.937" ID, 1.187" OD, 15.312" Length

tie rod, Tie rods manufactured by O & S Brg or Columbus Auto Parts, axles w/ 52 to 76 in tread

2шт.

383917R1

TUBE

tie rod, Tie rods manufactured by O & S Brg or Columbus Auto Parts, axles w/ 58 to 82 in tread, Replaces 393917R1

2шт.

25

384442R1

JAM NUT

NUT tie rod tube jam, Tie rods manufactured by O & S Brg or Columbus Auto Parts, axles w/ 52 to 76 in tread

2шт.

25

374062R1

JAM NUT

NUT tie rod tube jam, Tie rods manufactured by O & S Brg or Columbus Auto Parts, axles w/ 58 to 82 in tread

2шт.

26

359986R1

CLAMP

adj end, Tie rods manufactured by O & S Brg or Columbus Auto Parts

2шт.

NLS

NO LONGER SERVICED

1/2-NF x 2-1/4 pln type 5

2шт.

25-118

NUT,1/2"-20, G5

1/2-NF pln type 5

2шт.

27

CYLINDER steering, For list of components see power steering cylinder, group 10

1шт.

28

630101C1

WASHER

1шт.

29

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

30

71820C91

END

ASSY ball joint rod

1шт.

614451R1

WASHER

1.031 x 1.750 x 0.105

1шт.

272322

WASHER

7/8-NF pln slt-thick type 5

1шт.

103399

PIN,5/32" x 1 3/4"

Split (Cotter), 5/32" x 1 3/4"

1шт.

31

71822C1

SEAL

dust

1шт.

32

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING lube, 65 deg, 3/16 hole

2шт.

33

ROD ASSY tie, Tie rods manufactured by TRW, Not serviced separately, Order Ref. 34 - 39

1шт.

34

1270908C1

SOCKET

END ASSY welded, Tie rods manufactured by TRW, axles w/ 52 to 76 in tread

2шт.

34

1270914C1

BALL JOINT

END ASSY welded, Tie rods manufactured by TRW, axles w/ 58 to 82 in tread

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , Tie rods manufactured by TRW 1/4"-28 NPT x .54" lg

2шт.

35

1270906C1

BOOT

COVER dust, Tie rods manufactured by TRW

4шт.

36

1270905C1

END

ASSY right thd, Tie rods manufactured by TRW, axles w/ 52 to 76 in tread

2шт.

36

1270913C1

BALL JOINT

END ASSY right thd, Tie rods manufactured by TRW, axles w/ 58 to 82 in tread

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.

37

1270904C1

TUBE,1.02 - 1.03" ID, 1.375" OD

tie rod, Tie rods manufactured by TRW, axles w/ 52 to 76 in tread

2шт.

37

1270912C1

TUBE,1.02 - 1.03" ID, 1.375" OD

tie rod, Tie rods manufactured by TRW, axles w/ 58 to 82 in tread

2шт.

38

1270907C1

TUBE NUT

NUT tie rod tube jam, Tie rods manufactured by TRW

2шт.

39

180586C1

BRACKET

CLAMP adj end, Tie rods manufactured by TRW

4шт.

25776R1

BOLT

BOLT, 3/8-NF x 2-1/2 phc type 8

2шт.

359784C1

LOCK NUT,3/8"-24, GC

NUT lock, 3/8-NF cad p/t type 8

2шт.

193-12

LOCK WASHER,Ext Tooth, 0.52" ID x 0.89" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 1/2"

2шт.
