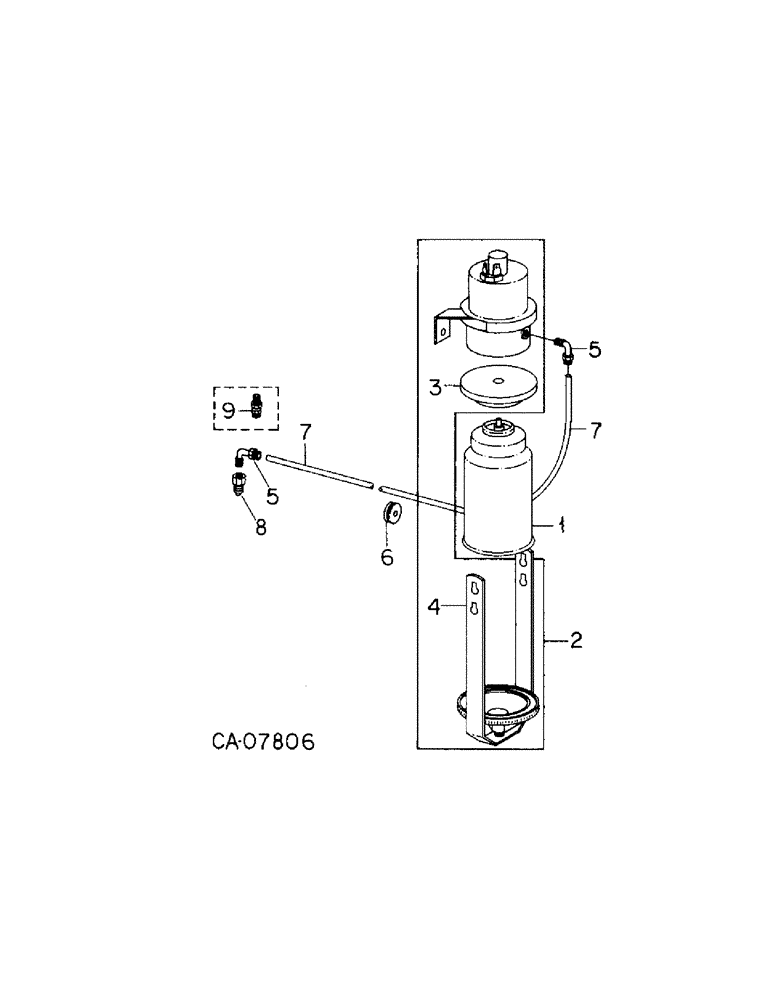

Запчасти Case IH 3488 (12-10) - POWER, ETHER STARTING Power

1

385064R91

FLUID

ether starting, 12 oz can

1шт.

2

121842C91

SOLENOID SWITCH

SOLENOID ASSY ether injection, Includes Ref. 3 and 4

1шт.

931829R1

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

2шт.

934675R1

WASHER,M8 x 16 x 1.6

8.8 x 17 x 1.6 mm

2шт.

3

395686R1

GASKET

ether starting injector

1шт.

4

121851C1

RETAINER

BAIL ASSY injector

1шт.

5

289970C91

FITTING

ELBOW 90 deg x 1/8-27 x 1/8 tube

1шт.

6

144197C1

GROMMET,1/8" ID x 5/8" Groove Dia, Str Cut

ether tube

1шт.

7

TUBE ether solenoid to mainfold, Use 24 in of 1/8 OD nylon tubing from 100 ft roll marked 417195C2

1шт.

8

269635R91

NOZZLE CAP

NOZZLE starting fluid

1шт.

9

165206C1

CONNECTOR, ELEC

CONNECTOR ether nozzle

1шт.
