Запчасти Case IH 3488 (12-07) - POWER, AUXILIARY FUEL TANK CONNECTIONS, TRACTORS WITH AUXILIARY FUEL TANK Power

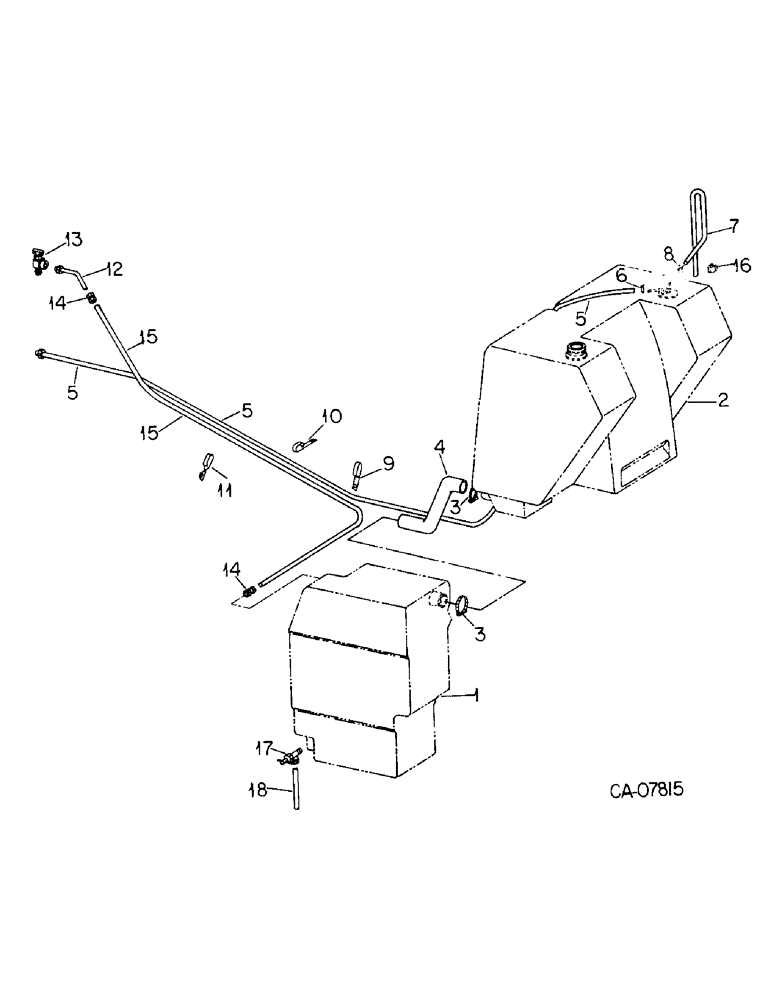

Схема запчастей Case IH 3488 - (12-07) - POWER, AUXILIARY FUEL TANK CONNECTIONS, TRACTORS WITH AUXILIARY FUEL TANK Power
15
4
3
2
6
18
14
9
12
5
1
5
15
16
17
3
13
8
14
10
7
5
11

Артикул

Название

Примечание

Количество

1

TANK ASSY auxiliary fuel, Refer to auxiliary fuel tank and supports in this group

1шт.

2

TANK ASSY fuel, Refer to main fuel tank and supports in this group

1шт.

3

681209C1

HOSE CLAMP,#32, 1.56/2.50 Type F Worm, W/liner

CLAMP hose, No. 32 shoe type F

2шт.

4

130275C2

FUEL HOSE

HOSE auxiliary fuel tank

1шт.

5

TUBE fuel line return, Use 102 in of 3/8 OD nylon tube, from bulk roll marked 74813C1

1шт.

6

872436R1

HOSE CLAMP,#6, 3/8", Spring

CLAMP spring wire hose, No. 6 type E

1шт.

7

TUBE fuel tank vent, Use 48 in of 1/4 OD nylon tube from bulk roll marked 74812C1

1шт.

8

28068R1

HOSE CLAMP,#4, 1/4", Spring

CLAMP spring wire hose, No. 4 type E

1шт.

9

120160C2

CLIP

fuel lines

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

10

380353R1

CLIP fuel lines, double

1шт.

11

120161C1

CLIP

fuel lines

1шт.

95-11041

WASHER,3/8"

(.406 x .812 x .051 pln) 3/8"

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 type 1

1шт.

12

120426C1

FUEL TUBE

TUBE ASSY fuel line

1шт.

13

1461707C1

VALVE fuel tank shut-off

1шт.

14

137597C1

ADAPTER,11/16" - 20

fuel line

2шт.

15

TUBE auxiliary tank shut-off valve to fuel filters, Use 31 in of 1/2 OD nylon tube from bulk roll marked 74814C1

1шт.

16

374903R1

CLIP

fuel tank vent tube

1шт.

17

104465C1

DRAIN VALVE

VALVE fuel tank drain

1шт.

18

TUBE auxiliary tank drain, Use 2.25 in of 3/8 OD nylon tube from bulk roll marked 74813C1

1шт.

Выбрано товаров: 22
