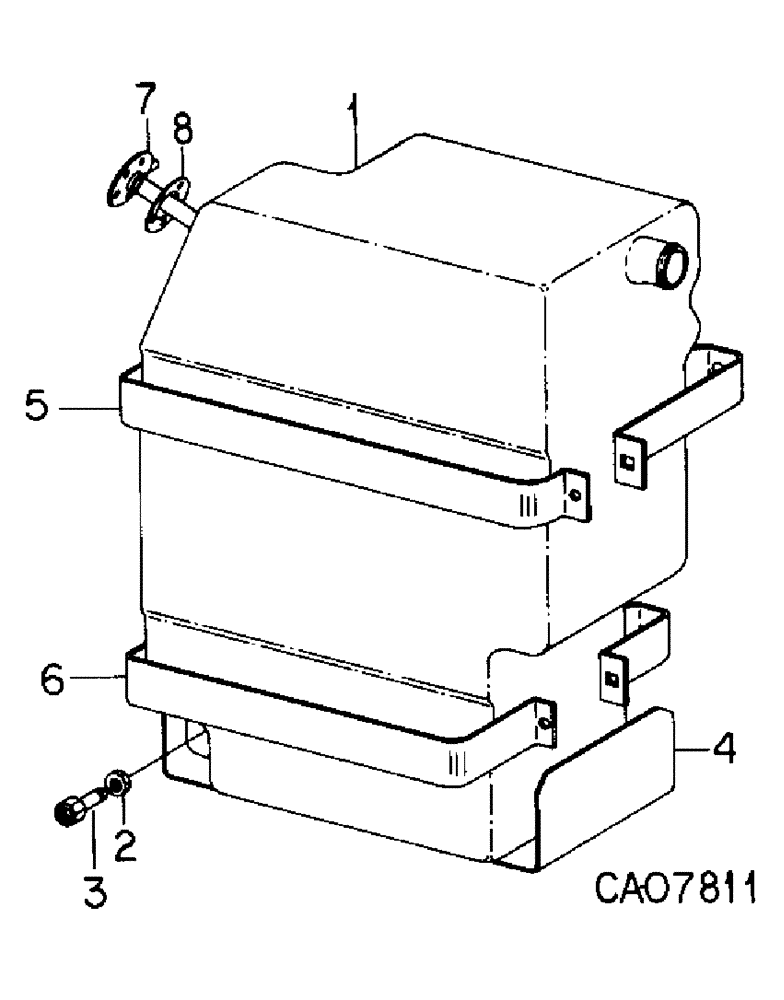

Запчасти Case IH 3488 (12-06) - POWER, AUXILIARY FUEL TANK AND SUPPORTS Power

1

130238C1

TANK

ASSY auxiliary fuel

1шт.

2

120156C1

NUT

well, fuel tank

1шт.

536652R1

WASHER,11.13mm ID x 28.57mm OD x 1.22mm Thk

1шт.

3

120157C1

CONNECTOR, ELEC

CONNECTOR stud, fuel tank

1шт.

4

120202C1

BRACKET

ASSY auxiliary fuel tank

1шт.

13-1222

BOLT,Hex, 3/4" - 10 x 1-3/8", Gr 5

3/4 x 1-3/8 pln type 5

2шт.

179885

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

2шт.

5

104277C1

SUPPORT ASSY.

STRAP upper auxiliary fuel tank

1шт.

6

104276C1

BRACKET

STRAP lower auxiliary fuel tank

1шт.

485734R1

CARRIAGE BOLT,Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

BOLT, 1/2 x 1-1/4 crg type 5

3шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

7

107532C1

GAUGE

sending unit, electric fuel

1шт.

8

104812C1

GASKET

sending unit

1шт.

423595

SCREW,Hex Hd, #10-24 x 1/2", w/LW

No. 10 x 1/2 znp h/hd l/w mach

5шт.

202013C2

TRAFFIC SIGN

GRAPHIC product, SMV emblem

1шт.

144261C2

FASTENER

SMV hold down

3шт.
