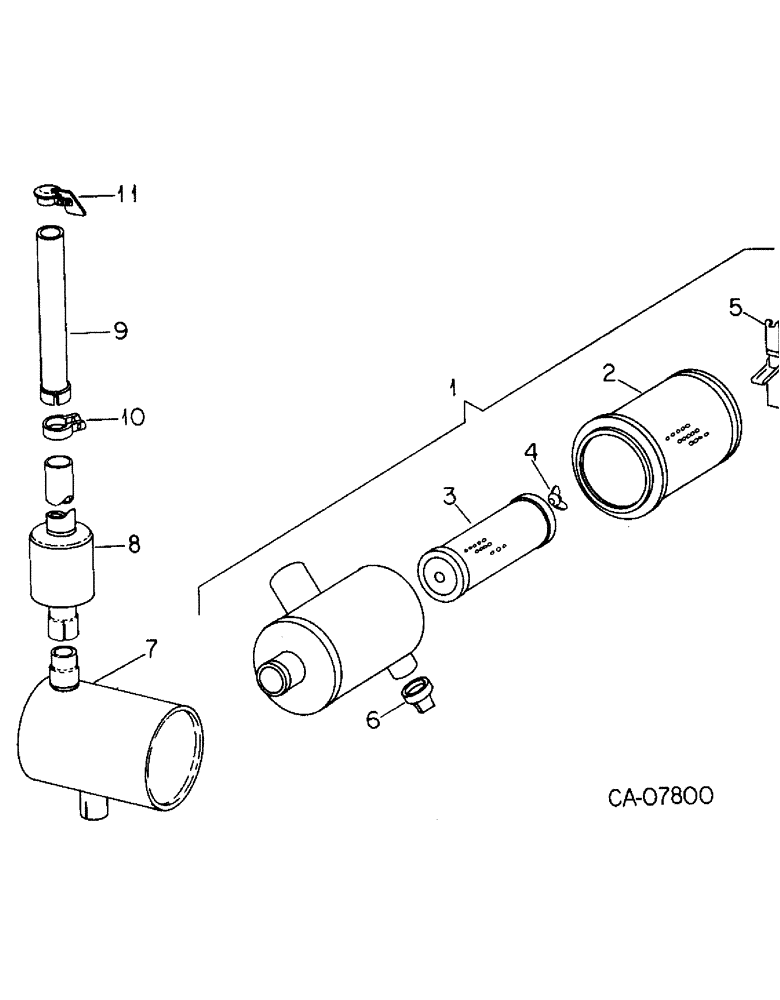

Запчасти Case IH 3488 (12-03) - POWER, SPARK ARRESTER ATTACHMENT Power

1

1252683C91

CLEANER

ASSY air

1шт.

2

71912C2

AIR FILTER

ELEMENT ASSY primary

1шт.

3

529852R5

AIR FILTER

ELEMENT ASSY secondary

1шт.

4

389264R91

BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket

BOLT ASSY

1шт.

5

71913C1

LOCK VALVE

LATCH ASSY

1шт.

6

383734R2

VALVE

dust unloader

1шт.

7

1252685C2

MUFFLER

exhaust

1шт.

8

70714C1

ARRESTER

sprak

1шт.

9

104631C1

TUBE,3" OD, 32.5" Length

exhaust extension

1шт.

10

391156R1

CLAMP

exhaust extension pipe

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2 type 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

11

281182R91

CYLINDER END CAP

CAP weather, Or

1шт.

11

321575R91

CAP

weather

1шт.
