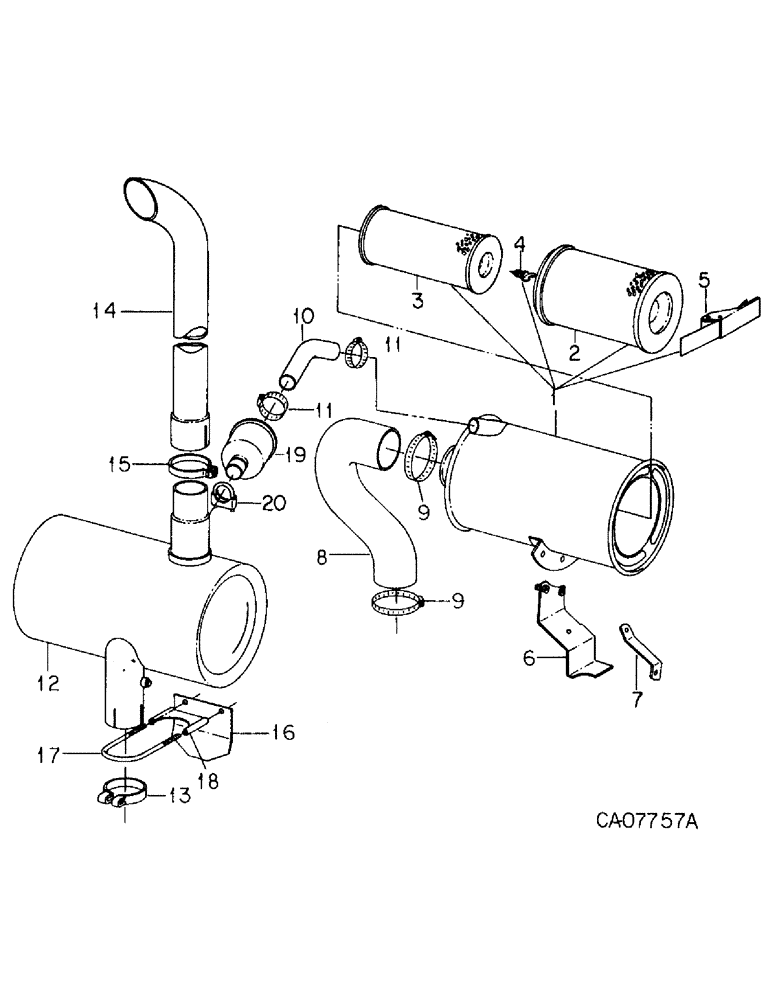

Запчасти Case IH 3488 (12-01) - POWER, AIR CLEANER AND EXHAUST Power
№
Артикул
Название
Примечание
Количество
1
1265513C91
CLEANER
ASSY air, Replaces 130583C92
1шт.
2
71912C2
AIR FILTER
ELEMENT ASSY primary
1шт.
3
529852R5
AIR FILTER
ELEMENT ASSY secondary
1шт.
4
389264R91
BOLT (SPREADER),Wing, 3/8" - 16, W/ Wshr, Gasket
BOLT ASSY
1шт.
5
71913C1
LOCK VALVE
LATCH ASSY
1шт.
6
1264532C1
BRACKET
ASSY
1шт.
179902
BOLT,Hex, 9/16" - 12 x 1", Gr 5
9/16 x 1 pln type 5
1шт.
933571R1
WASHER,M14 x 28 x 2.5
15.8 x 28 x 2.5 MM
1шт.
179837
BOLT,Hex, 3/8" - 16 x 3/4", Gr 5
1шт.
933348R1
WASHER,M10 x 20 x 2
10.8 x 21 x 2 MM pln
1шт.
30167R1
NUT,M8, Cl 10
M8 phc class 10
2шт.
7
148898C2
BRACE
SUPPORT
1шт.
930108R1
BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8, Full Thd
M8 x 20 pln class 8.8
1шт.
30176R1
WASHER,M10 x 21.5 x 2.5, HT
10.8 x 21 x 2.5 MM phc
1шт.
933347R1
WASHER,M8 x 16 x 1.6
8.8 x 17 x 1.6 MM pln
1шт.
8
130262C1
HOSE
air cleaner outlet
1шт.
9
146569C1
CLAMP
outlet hose
2шт.
10
130684C1
HOSE
aspirator, tractor w/o check valve
1шт.
10
1253195C1
HOSE
aspirator, tractor w/ check valve
1шт.
11
311164C91
HOSE CLAMP,#20, 0.81/1.75 Type F Worm
CLAMP hose, No. 20 type F
2шт.
12
1265515C1
MUFFLER
exhaust, Replaces 130452C2
1шт.
13
681515C1
CLAMP,82.55mm
muffler
1шт.
931537R1
BOLT,Hex, M10 x 1.5 x 85mm, Cl 8.8
M10 x 85 class 8.8
1шт.
30359R1
NUT
M10 pln class 10
1шт.
30176R1
WASHER,M10 x 21.5 x 2.5, HT
10.8 x 21 x 2.5 MM phc
2шт.
933965R1
LOCK WASHER,M10
1шт.
14
146520C2
PIPE
exhaust
1шт.
15
663432C1
CLAMP,69.85mm - 82.65mm
exhaust pipe
1шт.
30483R1
BOLT (SPREADER),Hex, M10 x 40, 8.8, Full Thd
BOLT, M10 x 40 class 8.8
1шт.
30176R1
WASHER,M10 x 21.5 x 2.5, HT
10.8 x 21 x 2.5 MM phc
2шт.
933965R1
LOCK WASHER,M10
1шт.
30359R1
NUT
M10 pln class 10
1шт.
16
1252454C1
SHIELD
1шт.
17
535992R1
BOLT (SPREADER),3/8" - 16 x 4.8"
CLAMP u-bolt
1шт.
18
535989R1
CLAMP
saddle
1шт.
102635
NUT,3/8"-16, G5
2шт.
19
1265464C1
VALVE
ASSY check
1шт.
20
117586C1
CLAMP
check valve
1шт.
Выбрано товаров: 38
