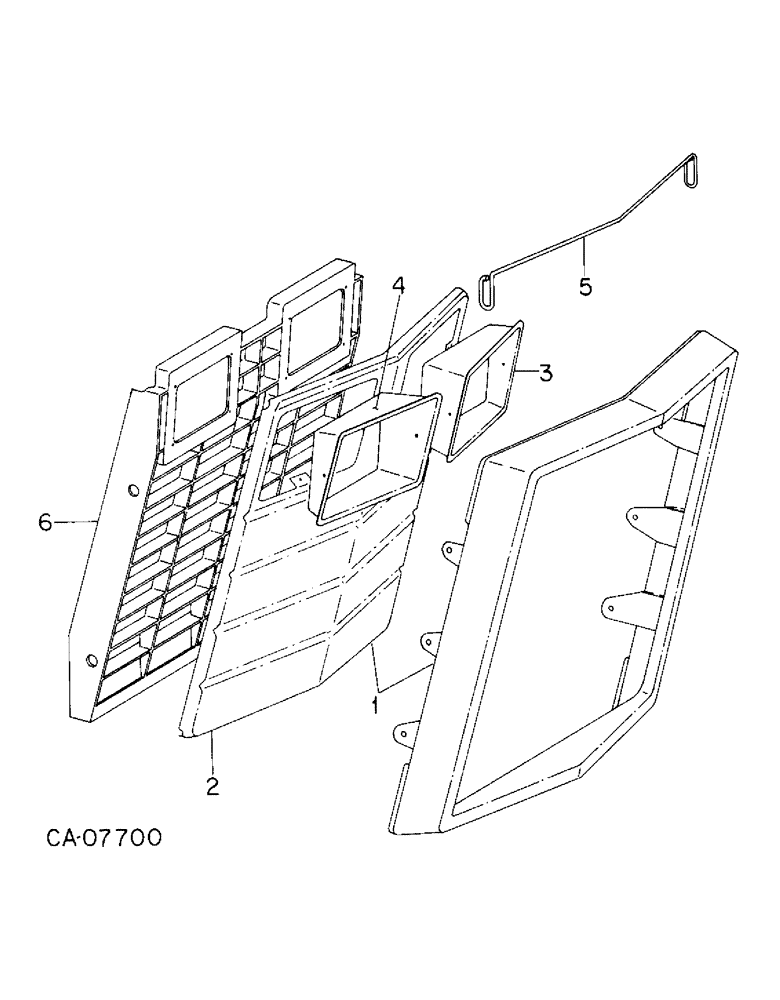

Запчасти Case IH 3488 (06-07) - COOLING, GRILLE AND SUPPORTS Cooling

1

149024C92

HOUSING

ASSY grille

1шт.

628-8020

BOLT,Hex, M8 x 20, 10.9, Full Thd

M8 x 20 class 8.8

6шт.

668569R1

WASHER

0.344 x 1.500 x 0.105

6шт.

2

149026C1

SCREEN

1шт.

3

1251667C1

COLLAR

headlamp, left

1шт.

445446

NUT,U, #10-16

10-12 phc u-spr style I

4шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, No. 10 x 3/4

4шт.

4

1251668C1

COLLAR

headlamp, right

1шт.

445446

NUT,U, #10-16

10-12 phc u-spr style I

4шт.

104033C2

SELF-TAP SCREW,Truss HD, #10 - 16 x 3/4"

SCREW, No. 10 x 3/4

4шт.

5

149029C2

SUPPORT

top

1шт.

43138

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8

M10 x 20 class 8.8

4шт.

30184R1

WASHER,M10 x 24.5 x 3, HT

10.8 x 24 x 3 MM phc

4шт.

6

148857C1

GRILLE

1шт.

149030R2

BOLT louver mtg shoulder

4шт.

149031R1

GROMMET louver mtg

4шт.

30177R1

WASHER,M12 x 24.5 x 3, HT

13.8 x 24 x 3 MM phc

4шт.
