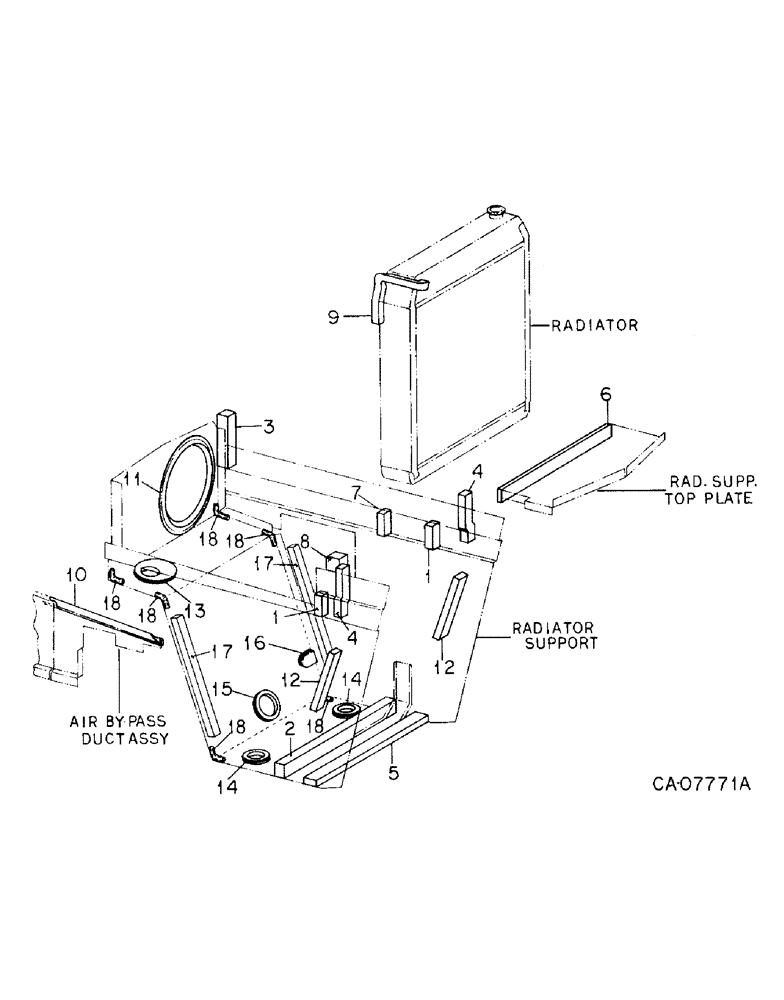

Запчасти Case IH 3488 (06-05) - COOLING, RADIATOR SUPPORT SEALS Cooling

1

SEAL radiator support shroud top corners, Furnish 80.0 MM of foam gasket from 4 ft. length marked 79059C1

2шт.

2

SEAL radiator support bottom, Furnish 700 MM of foam gasket from 4 ft. length marked 1264564C1

1шт.

3

SEAL radiator support upper rear, Furnish 200.0 MM of foam gasket from 4 ft. length marked 79059C1

1шт.

4

SEAL radiator support to hood, front, Furnish 170 MM of foam gasket from 4 ft. length marked 1264564C1

2шт.

5

SEAL radiator support bottom, Furnish 700 MM of foam gasket from 4 ft. length marked 1264565C1

1шт.

6

SEAL radiator top front, Furnish 670 MM of foam gasket from 4 ft. length marked 1264565C1

1шт.

7

SEAL radiator to radiator support, left side, Furnish 80.0 MM of foam gasket from 4 ft. length marked 79059C1

1шт.

8

SEAL duct frt upper, Furnish 90 MM of foam gasket from 4 ft. length marked 1264566C1

1шт.

9

SEAL rad and air by-pass duct, Furnish 350 MM of foam gasket from 4 ft. length marked 72315C1

1шт.

10

1252859C1

SEAL

hood by-pass duct

1шт.

11

1252833C1

SEAL

radiator support air cleaner opening

1шт.

12

1251813C2

STRIP

PAD frt side panel

2шт.

13

130577C2

GROMMET

radiator inlet hose

1шт.

14

149085C1

PLUG

radiator support clean out

2шт.

15

130688C1

GROMMET

HOSE grommet radiator outlet

1шт.

16

1252760C2

PLUG

A/C hose opening, For tractors w/ ROPS

1шт.

16

1250462C2

GROMMET

a/c hose, For tractors w/ cab

1шт.

17

1259882C1

STRIP

PAD rear side panel

2шт.

18

SEAL radiator support assy, caulk, right and left side, Use 30 MM from bulk carton marked 146793C1

6шт.
