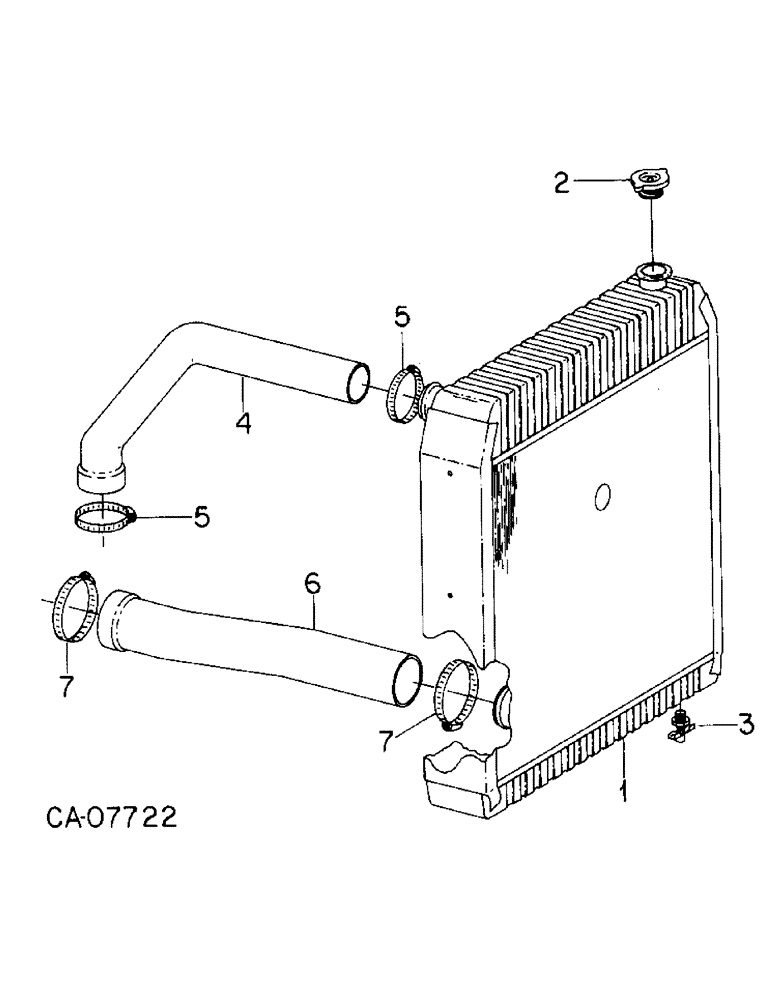

Запчасти Case IH 3488 (06-03) - COOLING, RADIATOR AND CONNECTIONS Cooling

1

146405C1

RADIATOR

ASSY, less cap, For tractors w/ ROPS

1шт.

1

146503C1

RADIATOR

ASSY, less cap, For tractor w/ cab

1шт.

2

532673R1

CAP

ASSY

1шт.

3

614201R1

VALVE

radiator drain

1шт.

4

130270C1

HOSE,50.80 mm ID, 57.20 mm ID x 550.00 mm, SAE 20R4 CLASS D1

RADIATOR HOSE, , Inlet 50.80 mm ID, 57.20 mm ID x 550.00 mm, SAE 20R4 CLASS D1

1шт.

5

397256R1

HOSE CLAMP,#44, 2.31/3.25 Type F Worm, W/liner

CLAMP hose, No. 44 shoe, type F

2шт.

6

130271C1

HOSE,63.50 mm ID, 66.50 mm ID x 350.00 mm, SAE 20R4 CLASS D1

RADIATOR HOSE, , Outlet 63.50 mm ID, 66.50 mm ID x 350.00 mm, SAE 20R4 CLASS D1

1шт.

7

27392R1

HOSE CLAMP,#48, 2.56/3.50 Type F Worm, W/liner

CLAMP hose, No. 48 shoe, type F

2шт.
