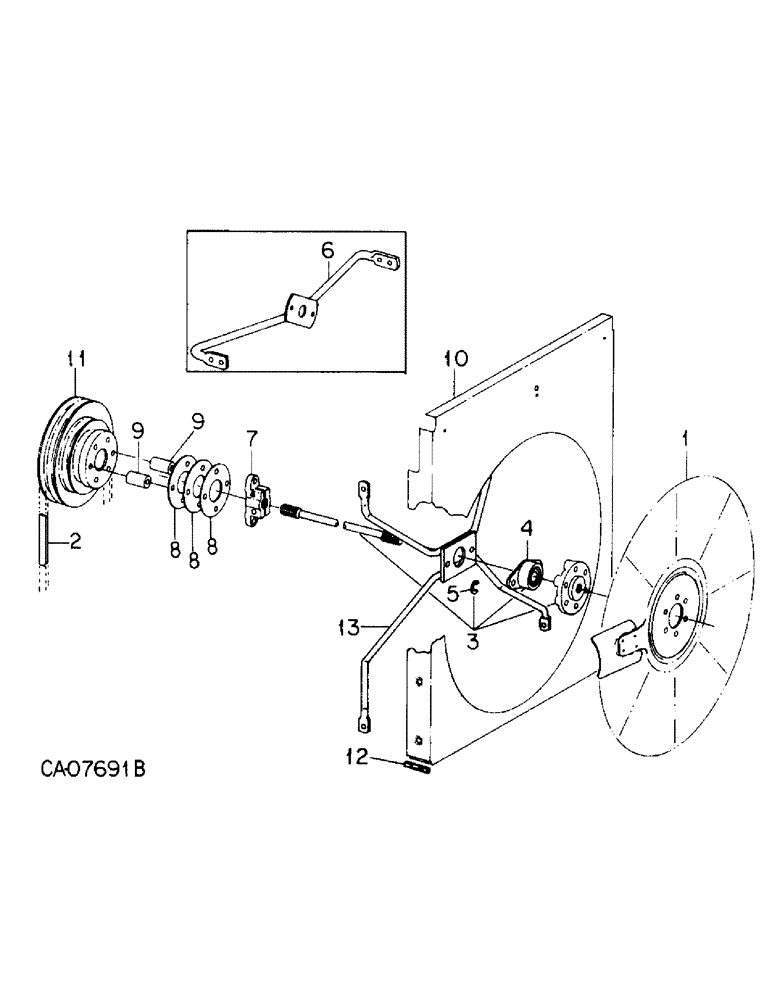

Запчасти Case IH 3488 (06-02) - COOLING, FAN AND FAN BELT Cooling

1

146395C1

BLADE

FAN ASSY

1шт.

930265R1

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8, Full Thd

6шт.

933965R1

LOCK WASHER,M10

6шт.

2

537072R91

SET OF BELTS

Water pump and alternator

1шт.

3

1253249C91

SHAFT ASSY.

SHAFT ASSY radiator fan drive, Replaced 1270863C91, Start Serial: 754

1шт.

931447R1

BOLT,Hex, M10 x 25, 8.8, Full Thd

M10 x 25 phc class 8.8

2шт.

933965R1

LOCK WASHER,M10

2шт.

30168R1

NUT,M10, Cl 10

M10 phc class 10

2шт.

3

130193C93

SHAFT

ASSY radiator fan drive, Serial Range: -753

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4 type 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

4

1253245C91

PILLOW BLOCK

BEARING, Start Serial: 754

1шт.

4

130210C91

FLANGED BEARING,25.4mm ID

, Serial Range: -753

1шт.

5

631530R1

RING, SNAP

RING external retaining, 0.941 rect sect

1шт.

6

130214C2

SUPPORT

ASSY radiator fan, Serial Range: -753

1шт.

931447R1

BOLT,Hex, M10 x 25, 8.8, Full Thd

M10 x 25 phc class 8.8

4шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5 MM phc

4шт.

933965R1

LOCK WASHER,M10

4шт.

30168R1

NUT,M10, Cl 10

M10 phc class 10

4шт.

7

130675C1

HUB

water pump pulley

1шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2 type 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

140483H

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

2шт.

25709R1

WASHER

0.406 x 0.812 x 0.089 hdn

2шт.

8

130092C1

DISC

SHIM flex coupling

3шт.

9

130088C1

SPACER

flex coupling

2шт.

9413979

LOCK NUT,3/8"-16, GC

NUT lock, 3/8 phc p/t type 8

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3 type 5

2шт.

10

144092C1

SHROUD

radiator fan

1шт.

130285C1

NUT

M 8-1.25 cage

8шт.

11

1800183C1

PULLEY

fan and water pump, For tractors w/ air conditioned cab

1шт.

11

673788C1

PULLEY

fan and water pump, For tractors w/ ROPS

1шт.

12

SEAL fan shroud caulk, right and left side, Use 60 MM from bulk carton marked 146793C1

2шт.

13

1253187C1

SUPPORT

ASSY radiator fan, Start Serial: 754

1шт.

931447R1

BOLT,Hex, M10 x 25, 8.8, Full Thd

M10 x 25 phc class 8.8

4шт.

30176R1

WASHER,M10 x 21.5 x 2.5, HT

10.8 x 21 x 2.5 MM phc

4шт.

933965R1

LOCK WASHER,M10

4шт.

30168R1

NUT,M10, Cl 10

M10 phc class 10

4шт.
